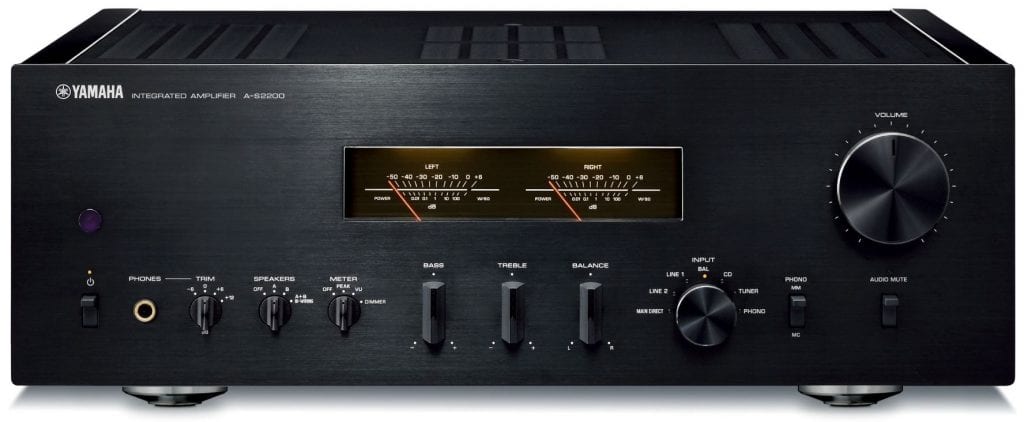

Yamaha A-S2200

• Maximum power (4 Ohm, 1 kHz, 0.7% THD, for Europe) 160 W + 160 W.
• High dynamic capacity/channel (8/6/4/2 Ohm) 105/135/190/220 W
• Cushion factor ≧ 250 (1 kHz, 8 ohm)
• Frequency range +0 / -3 dB (5 HZ -100 kHz), ＋0 / -0.3 dB (20 Hz -20 kHz)
• Deviation of Riaa-Ending ＋/- 0.5 dB (PHONO (Mm/mc))
• Dimensions (B x H x D) 435 × 157 × 463 mm
• Weight 22.7 kg

Integrated amplifier

• Nominal output power [20 Hz-20 KHz, 0.07% THD] 90 W ＋ 90 W (8 Ohm), 150 W ＋ 150 W (4 ohm)
• Total harmonic distortion (20 Hz to 20 kHz) [input 0.5 V] PHONO MC → Line2 OUT: 0.02% (1.2 MVRMS), PHONO→ Line2 OUT: 0.005 % (1.2 VRMS), CD, etc./bal :SP OUT: 0.035 % (50 W/8 Ohm）
• Signal-noise ratio PHONO MC: 90 dB, PHONO Mm: 96 dB, CD, etc.: 110 dB, Bal: 114 dB
• Input sensitivity [1 kHz, 100 W/8 Ohm] PHONO MC: 150 UVRMS/50 Ohm, PHONO Mm: 3.5 MVRMS/47 KOHM, CD, etc.: 200 MVRMS/47 KOHM, MAIN IN: 1 VRMS/47 KOHM, BAL: 200 MVRMS/100 KOHM
• Transformer 625VA (Ringkern)
