POWERNODE SPECIFICATIONS
AUDIO
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
DSD Support: DSD256
Supported Multi-Channel Audio Formats: Dolby® Digital
Native Sampling Rates: up to 192 KHz
Bit Depths: 16-24
Audio Controls & EQ: BluOS Control App
Signal-to-Noise Ratio: -102dBA
Distortion: THD+N, 0.005%
Amplification: DirectDigital™
Rated Power Output: 100W x 2 | 80W x 3 (8 Ohms)
IHF Dynamic Power: 265W (4 Ohms) | 140W (8 Ohms)
SOFTWARE & INTEGRATIONS
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Messsage Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready,
Dirac Live Ready (available via future software update)
Control System Integrations: Creston, Control4, RTI, Nice, URC, Lutron
Voice Control Integrations: Amazon Alexa Skills

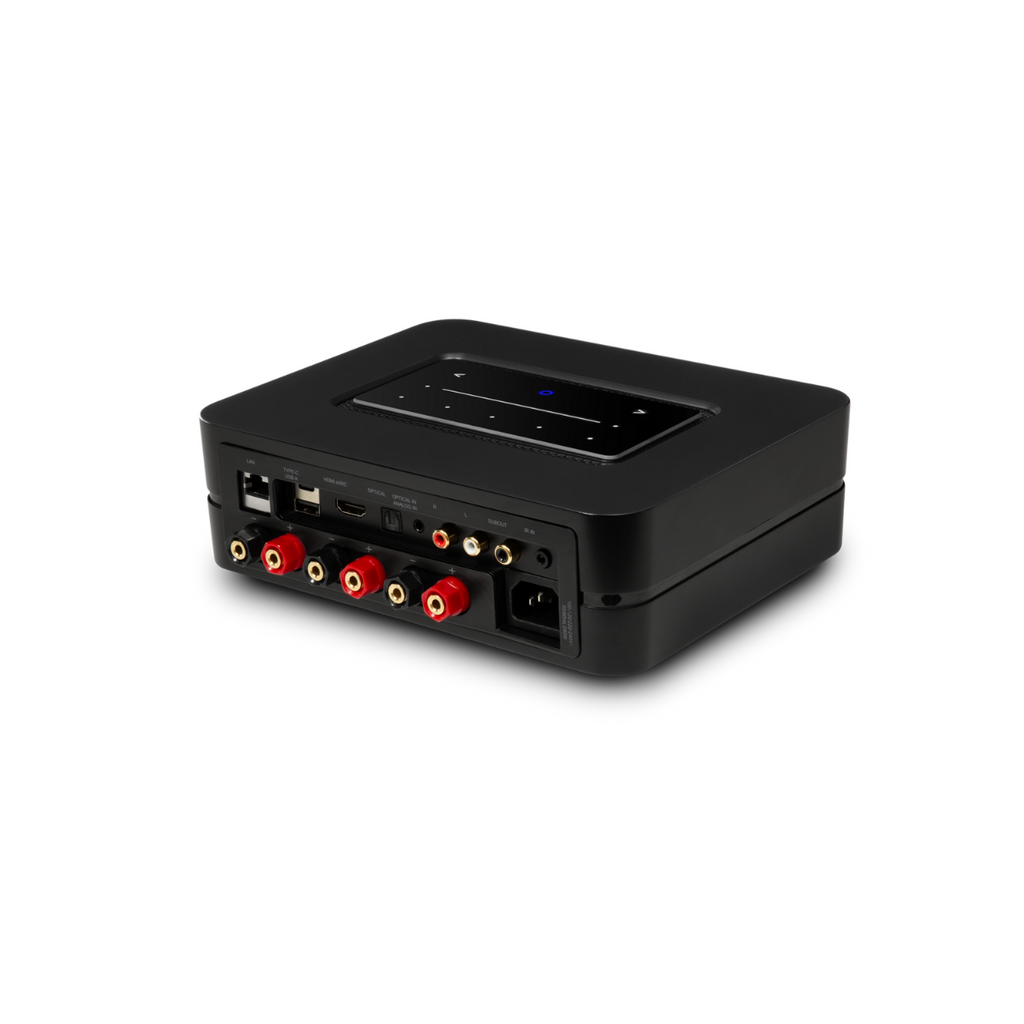

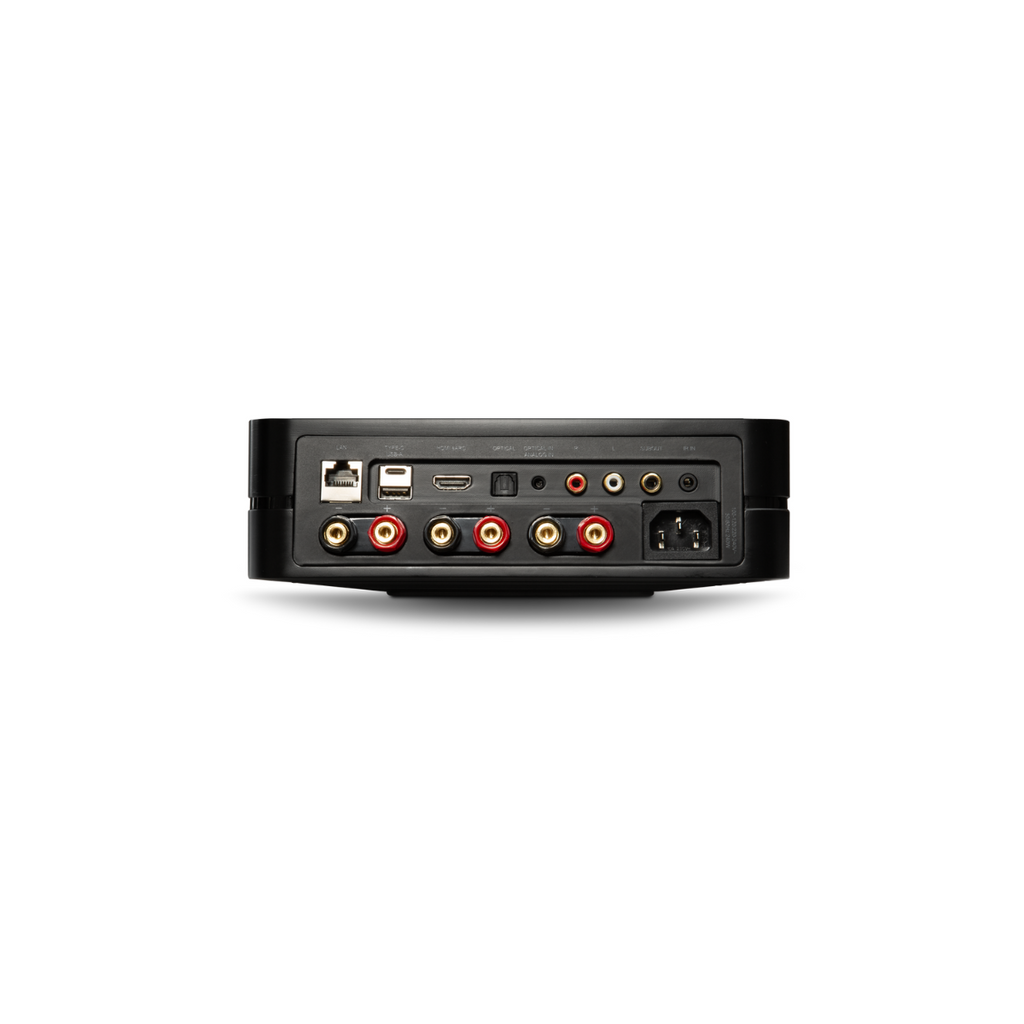

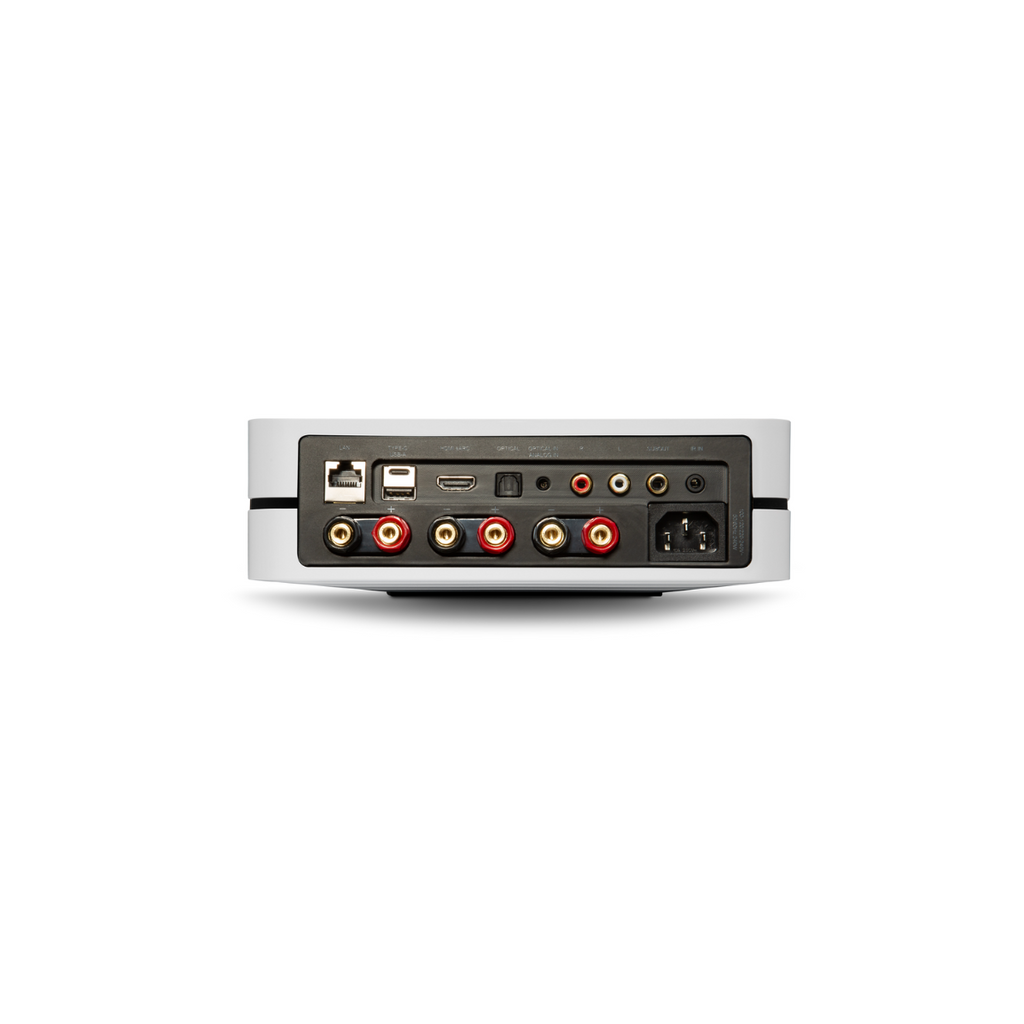

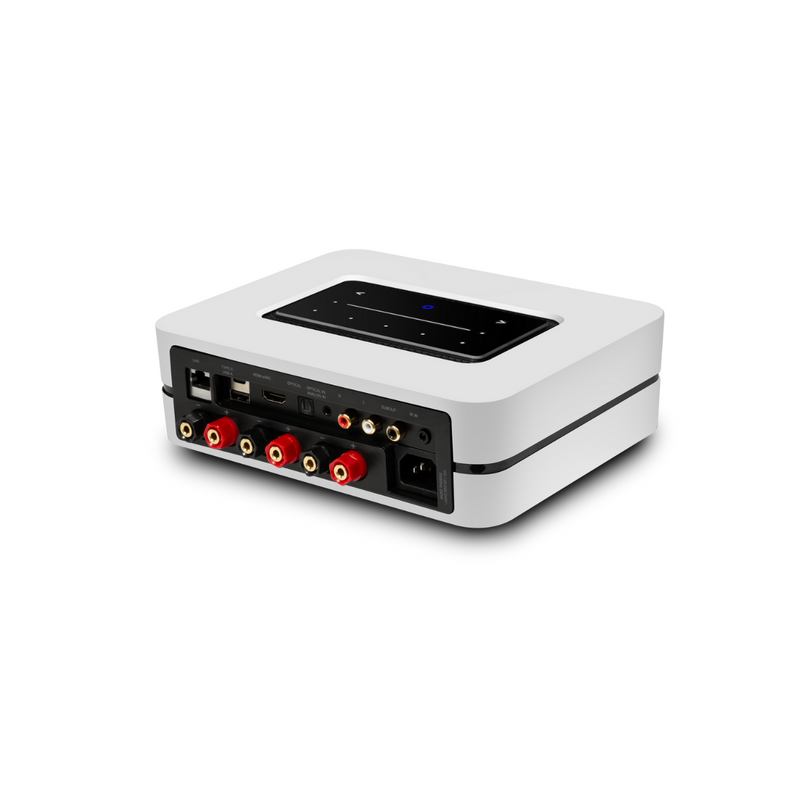

CONNECTIONS
Power Supply: Universal 3-pin AC cord input (100-240AC)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
IR Input: 3.5mm Jack
Optical/Analog Input: Toslink Optical, RCA Analog, 3.5mm Optical/Analog Combo
HDMI Input: HDMI eARC
USB IN: Type A (Fat32, NTFS Formatted) - External Storage Only
Local Server Mode
USB (other): USB Type C (PC input)
Headphone Output: 6.3mm/1/4" Stereo, Bluetooth
Subwoofer Output: RCA x 1; Wireless to PULSE SUB+
Speaker Terminals: 5-Way Binding Post
GENERAL

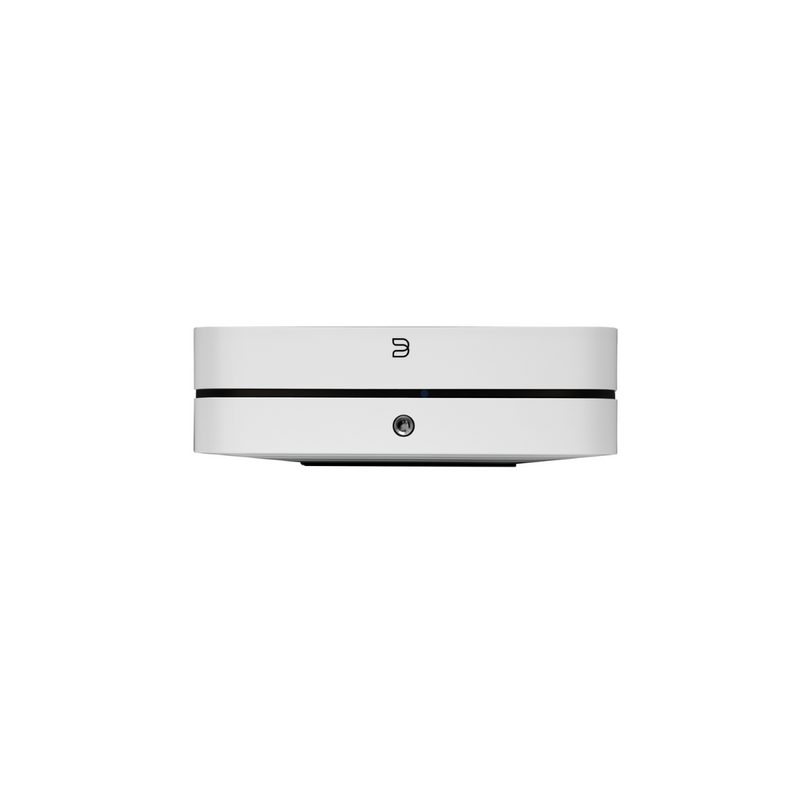

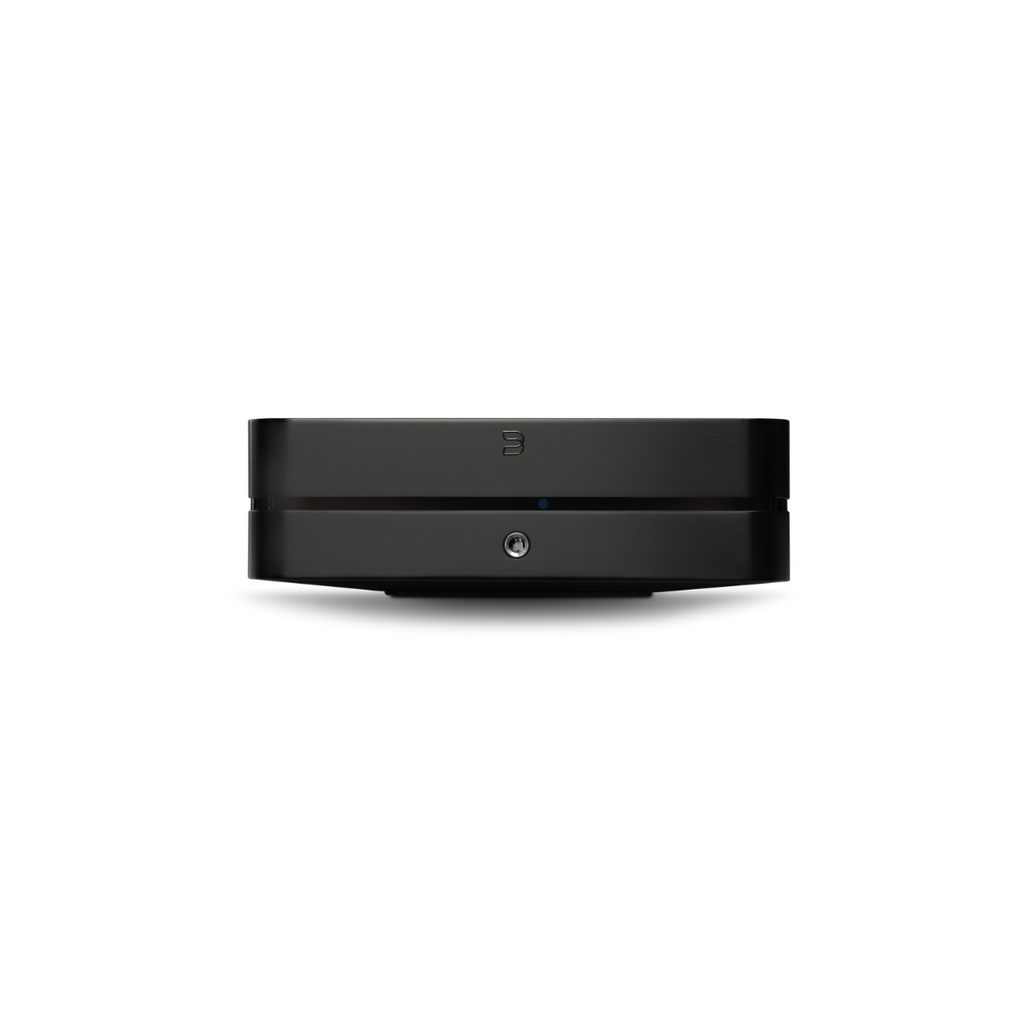

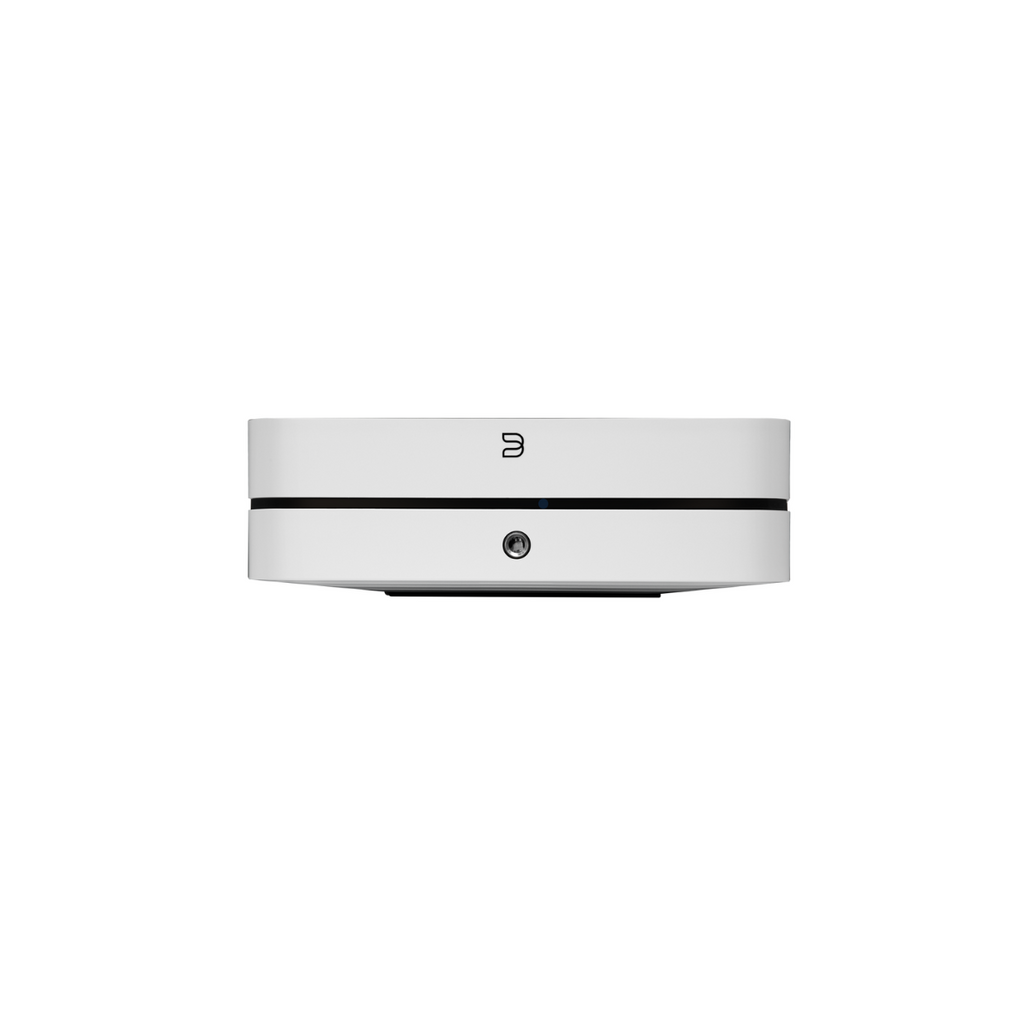

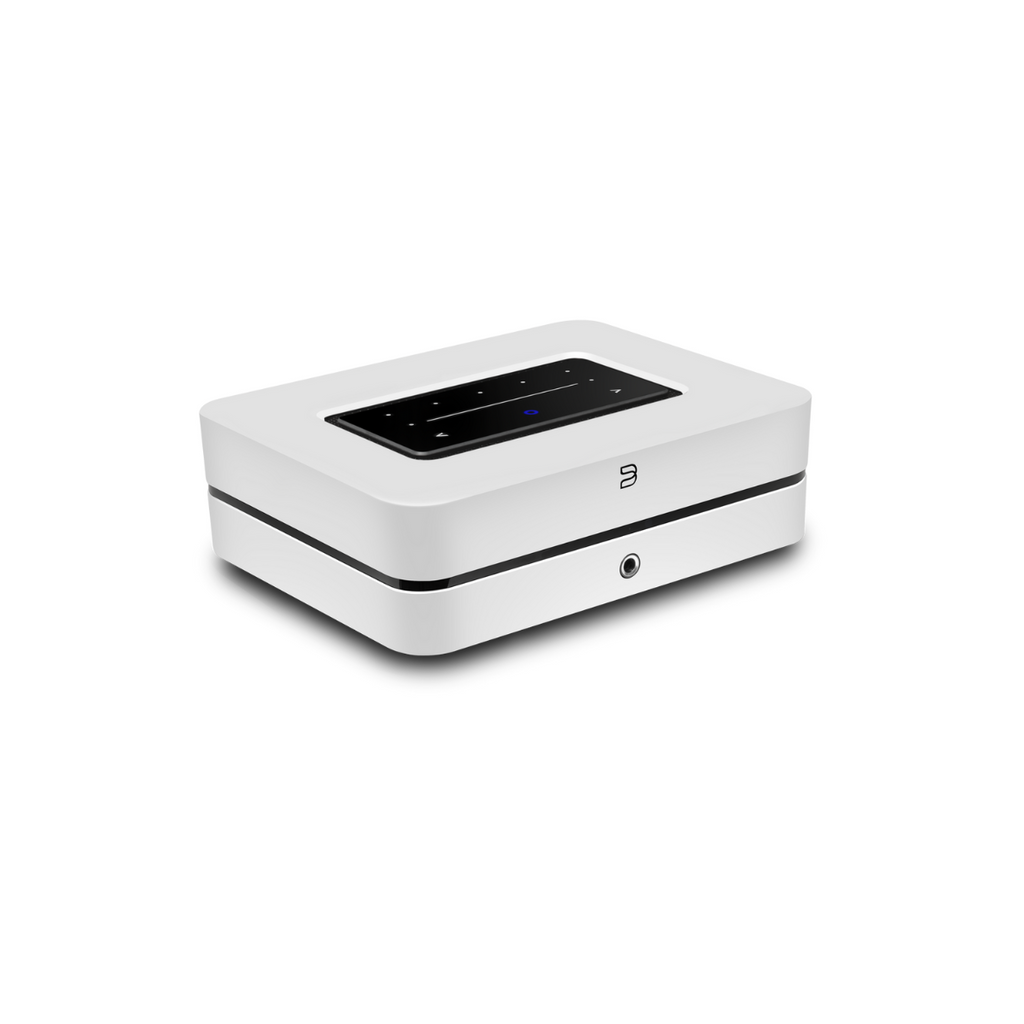

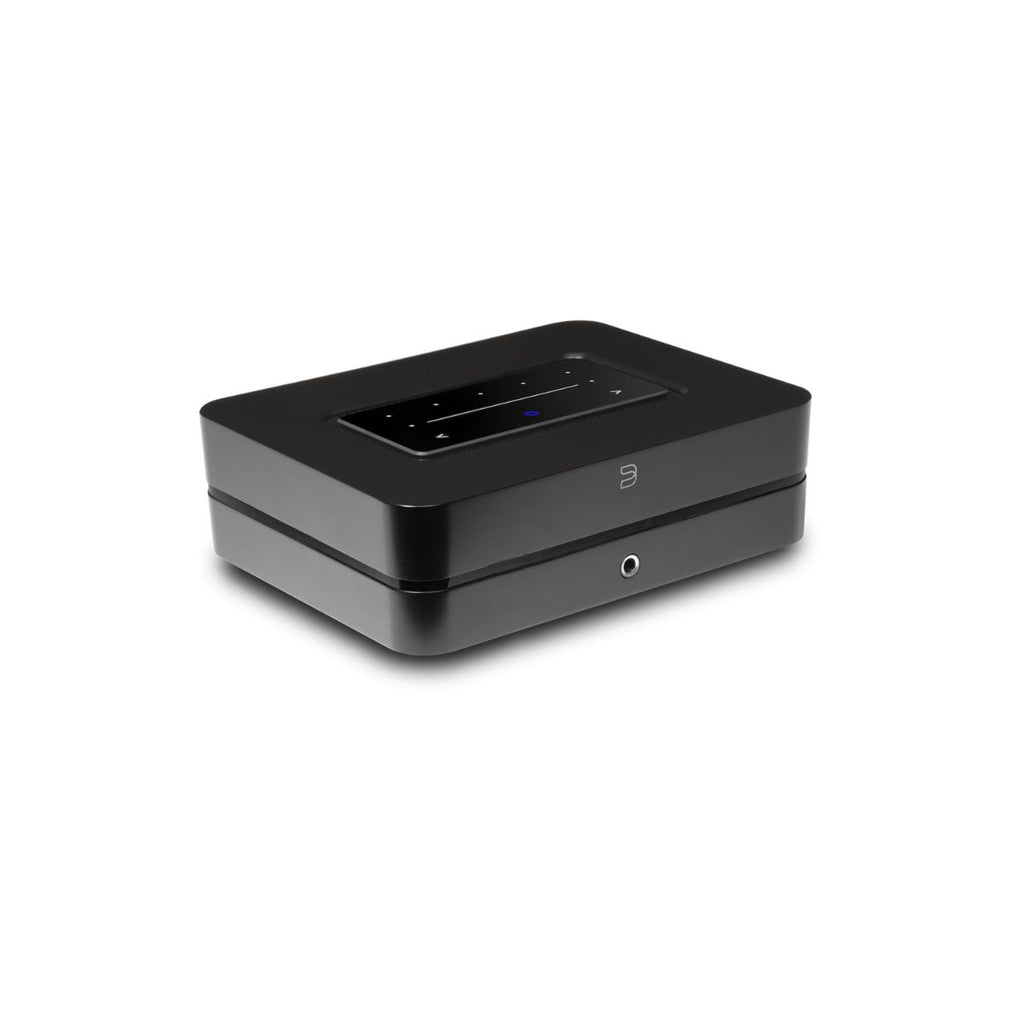

Finish: Black or White: Matte Satin Paint
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Operating Environment: 0°C to 40°C
SKU/Version: N331
* all specifications subject to change without notice
Product Dimensions
220 x 70 x 190 mm (W x H x D)
8.7 x 2.75 x 7.5 in (W x H x D)*
Weight: 1.9 kg / 4.18 lbs
*Non-metric measurements are approximate.
Included Accessories
• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• Mini Jack to Toslink Adaptor
• Safety/Warranty Guide
• Quick Setup Guide
• Dirac Live Ready Info Card
