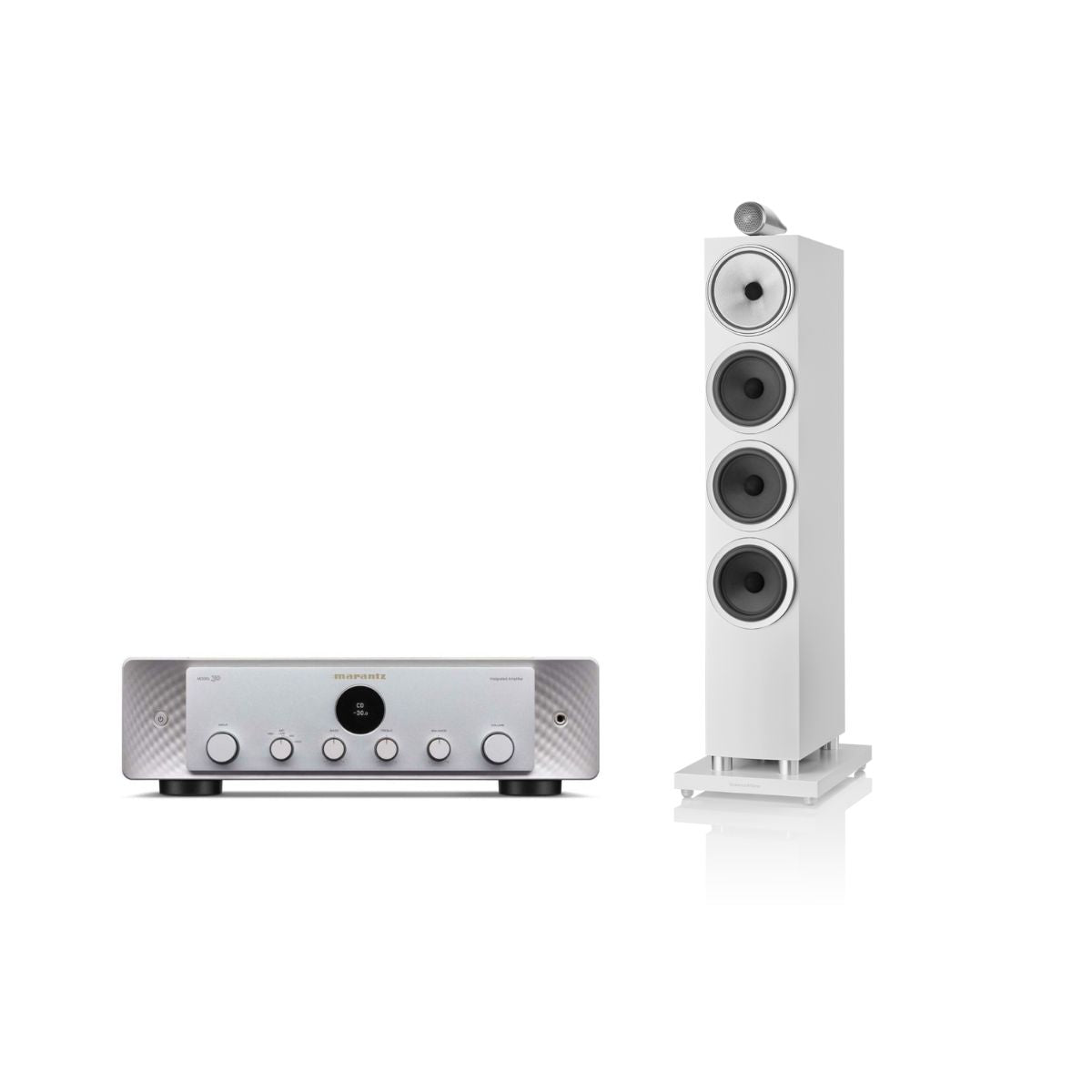

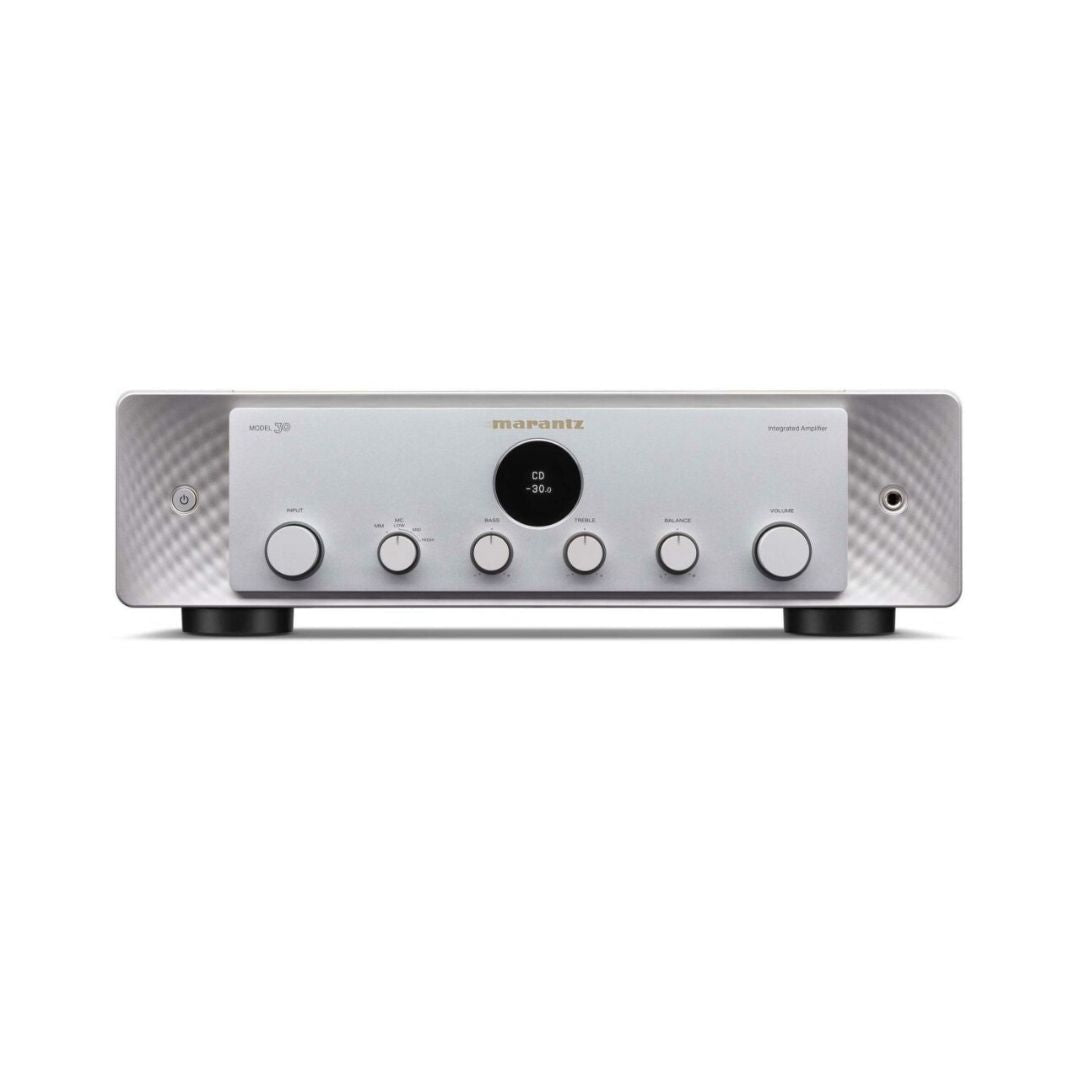

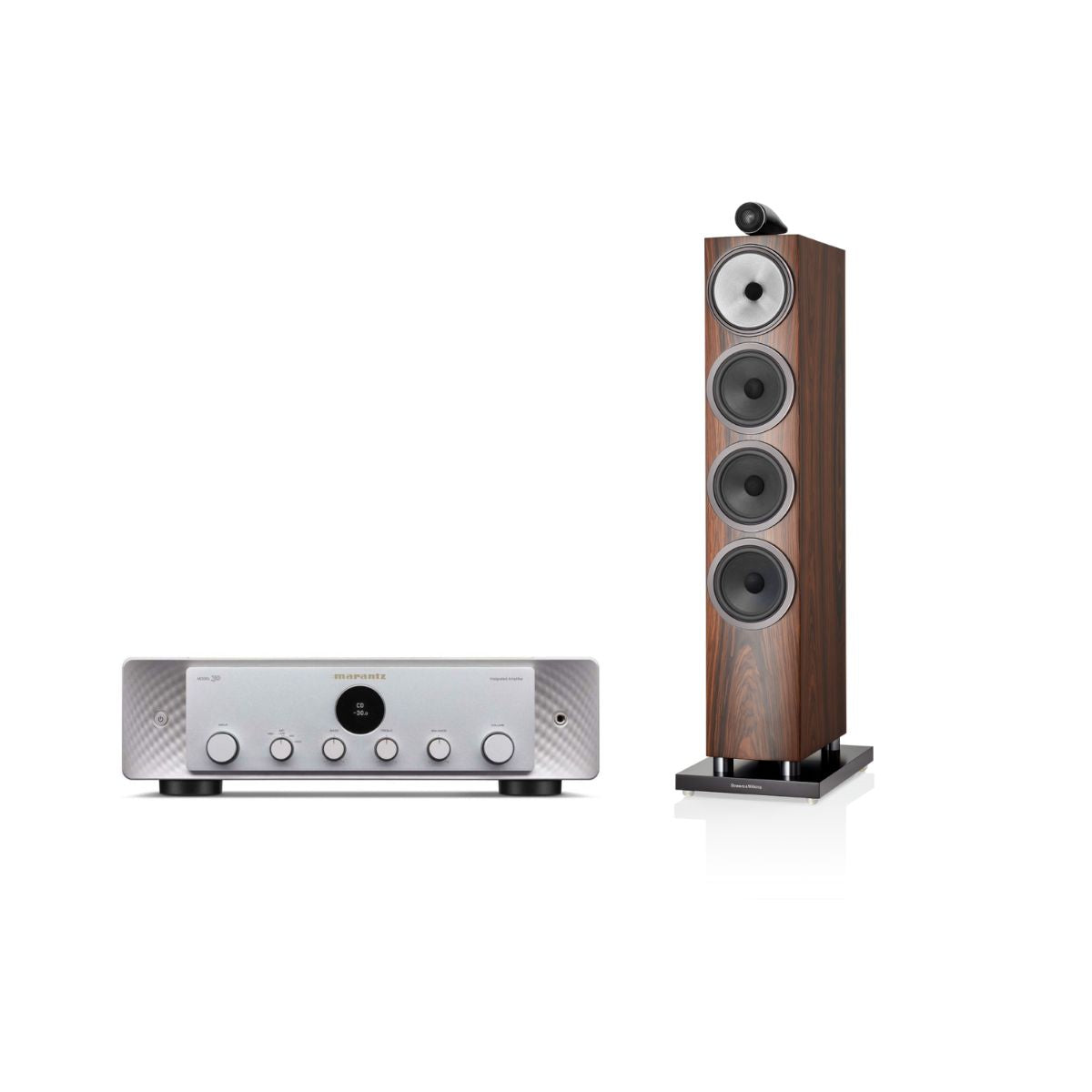

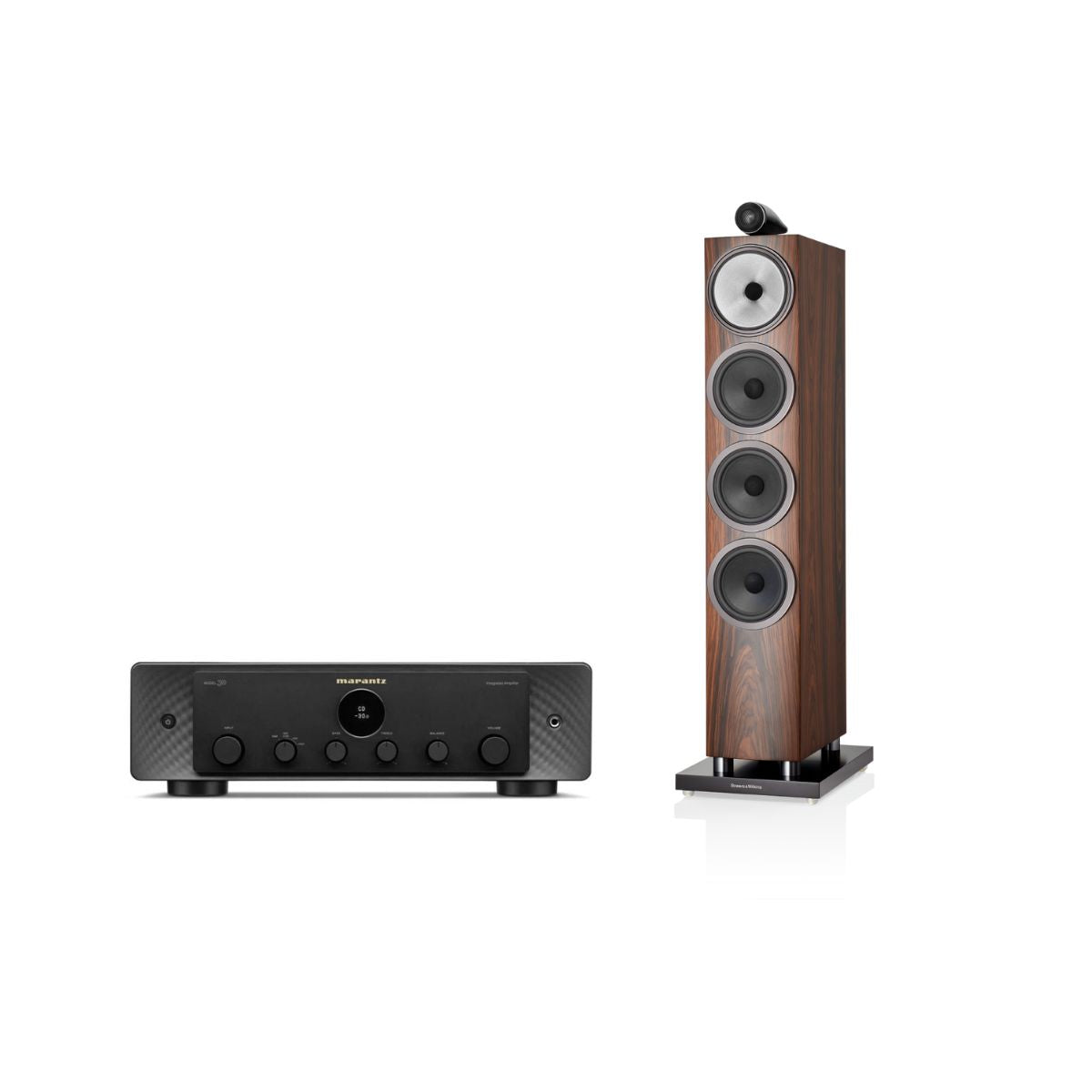

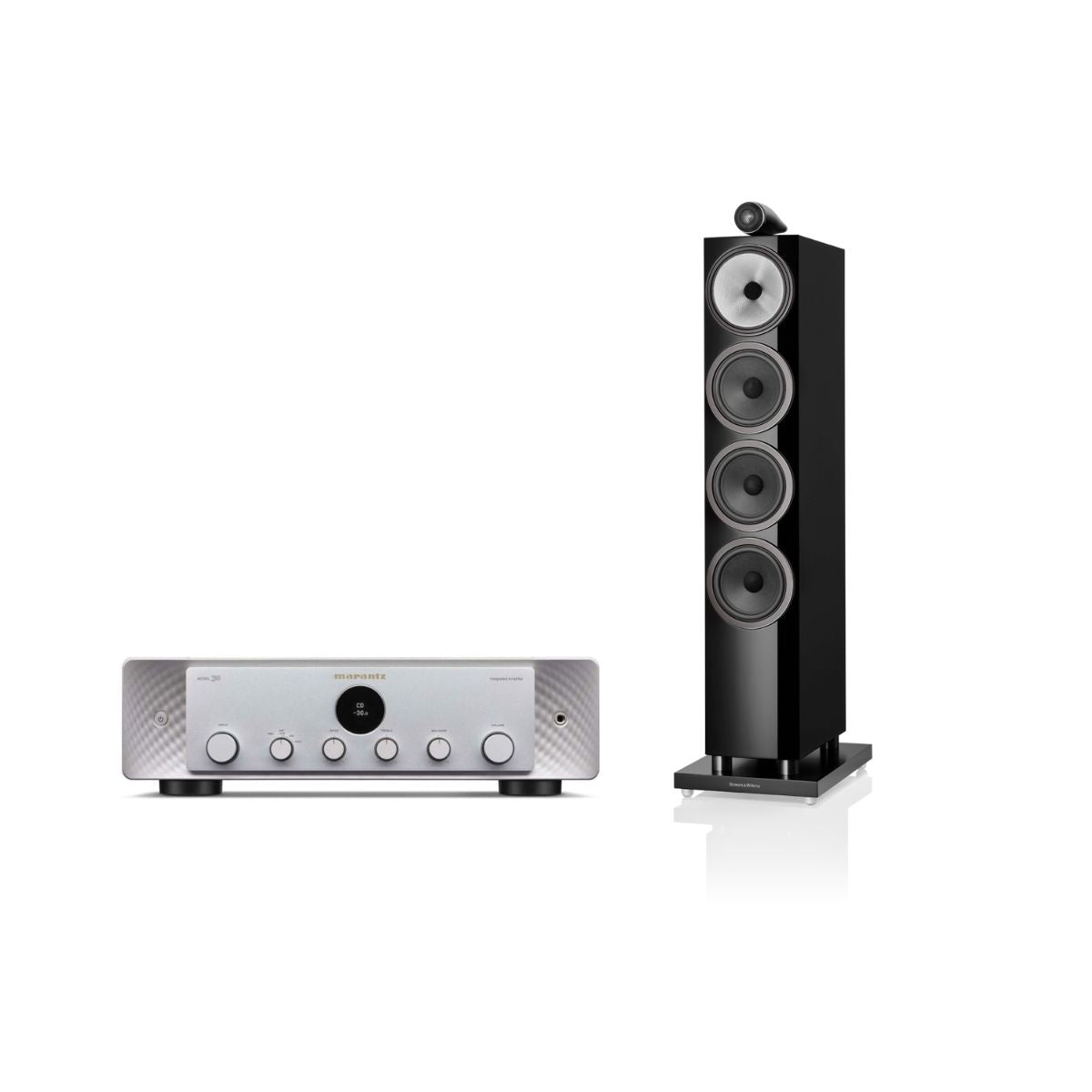

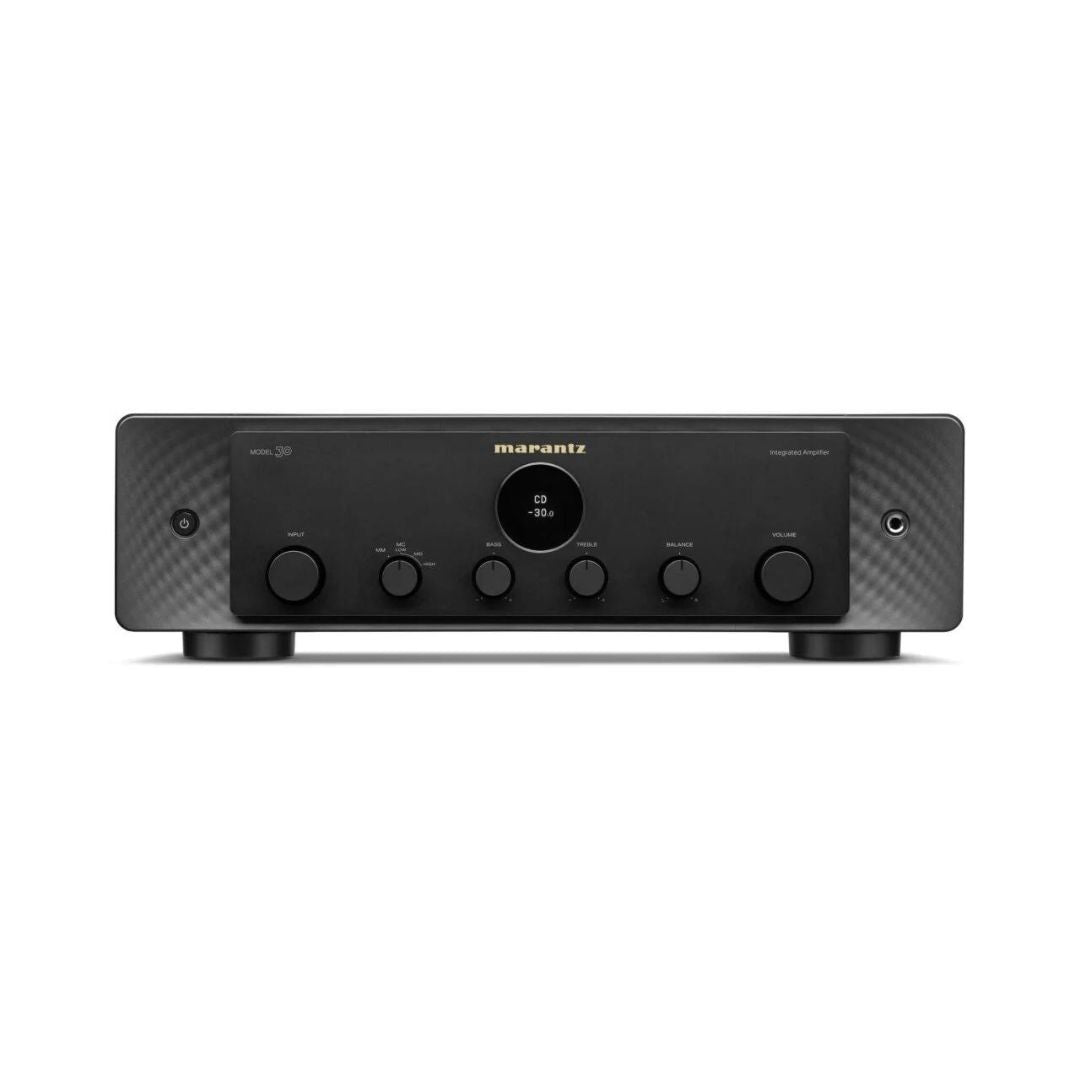

Marantz Model 30 + Bowers & Wilkins 702
Features
| Extruded aluminum cooling elements |
Yes (separate) |
| Balance/Bass/Treble/Loudness |
Yes / yes / yes / no |
| Channel |
2 |
| Current feedback topology |
Yes |
| Specially designed components |
Yes |
| Digital In: USB-B / Optical / Coaxial / USB-A |
No / no / no / no |
| Hdam version |
SA3, SA2 |
| High -quality audio components |
Yes |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium |
No / no / yes |
| Netvoeding transformer: ring core/egg |
SMPS |
| Symmetrical printing plate |
Yes |
Generally
| Automatic switch -off |
Yes |
| Carton Maximum Dimensions (W x D x H) in mm |
534 x 522 x 255 |
| Carton Weight (inc. Product) in kg |
17.6 |
| Removable power cord |
Yes |
| Maximum dimensions (W x D x H) in mm |
443 x 431 x 130 |
| Metal front panel |
Yes |
| Energy consumption in W |
130 |
| Remote control |
RC002PMND |
| Consumption during standby in W |
0.2 |
| System Remote function |
Yes |
| Weight in kg |
14.8 |
Inputs/outputs
| Audio-inputs |
6 |
| Audio-Tanangs |
1 |
| Balanced in / out |
No / no |
| D-Bus |
Yes |
| Digital In: USB-B / Optical / Coaxial / USB-A |
No / no / no / no |
| Floating Control BUS SYSTEM (2 x 3.5 mm Mono-decker) |
No |
| Gilded cinch |
Yes |
| HDMI: Inputs / outputs |
No |
| Headphone Gain Control (Low / Mid / High) |
No |
| Headphone |
Yes |
| Number of connections |
2 |
| Phono-ing input: mm/mc |
Yes / yes |
| Power Amp Direct |
Yes |
| Front. out/head in |
Yes / no |
| Speaker a / b |
No |
| Speaker Terminals |
Marantz SPKT-100+ |
Other
| 5 mm aluminum top plate |
No |
| Bi-Amm and Meerkanaals option |
No |
| Double layered base plate |
Yes |
| Buffer reinforcement inputs (all entrances/CD only) |
No / no |
| Linear Drive Power Supply |
Yes (pre-amplifier internship) |
| Linear volume control |
Yes |
| Ruisarm LCD screen |
No |
| Low Noise Oeld Display |
Yes |
| Marantz Musical Digital Filtering |
No |
| Power Amp Direct |
No |
| Shottky diodes |
Yes |
| Source Direct |
No |
| Shielding system elements: copper/metal/none |
Yes / no / no |
Specifications
| Damping factor |
500 |
| Frequency response |
5 Hz - 50KHz |
| Input sensitivity: balanced high level |
No |
| Input sensitivity: High level |
220 MV / 13 Kohm |
| Input sensitivity: MC |
250 |
| Input sensitivity: mm |
2.3 MV / 39 KOHM |
| Input sensitivity: Power AMP directly in |
No |
| Output power (8/4 Ohm RMS) |
100 W / 200 W. |
| Signal-noise ratio DAB (Mono/Stereo) |
107 dB (2v input/rated output) |
| Signal-noise ratio: MM/MC |
88 /75 dB |
| Signal-noise ratio: Power AMP directly in |
No |
| Total harmonic distortion |
0.005%
|
|

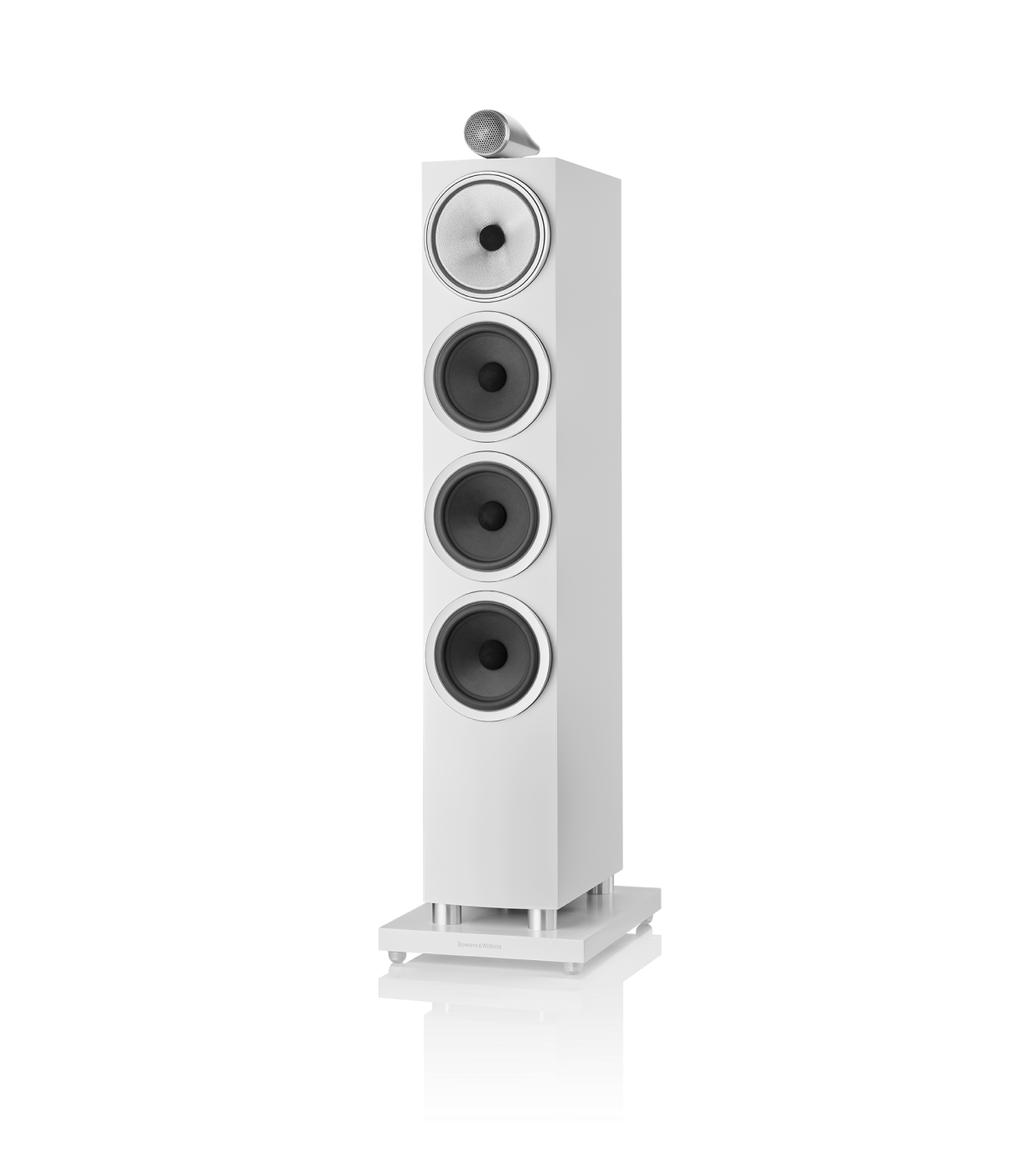

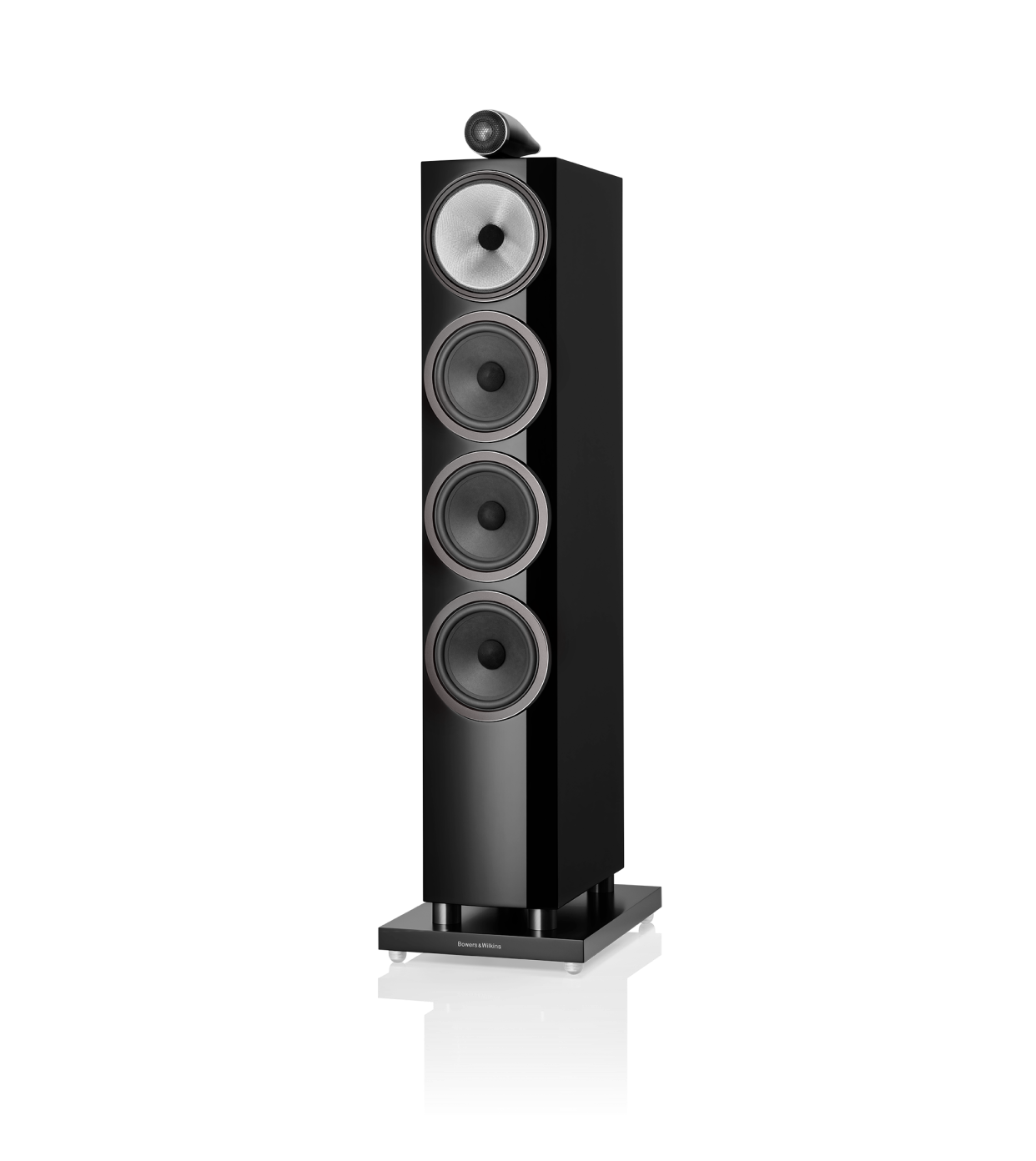

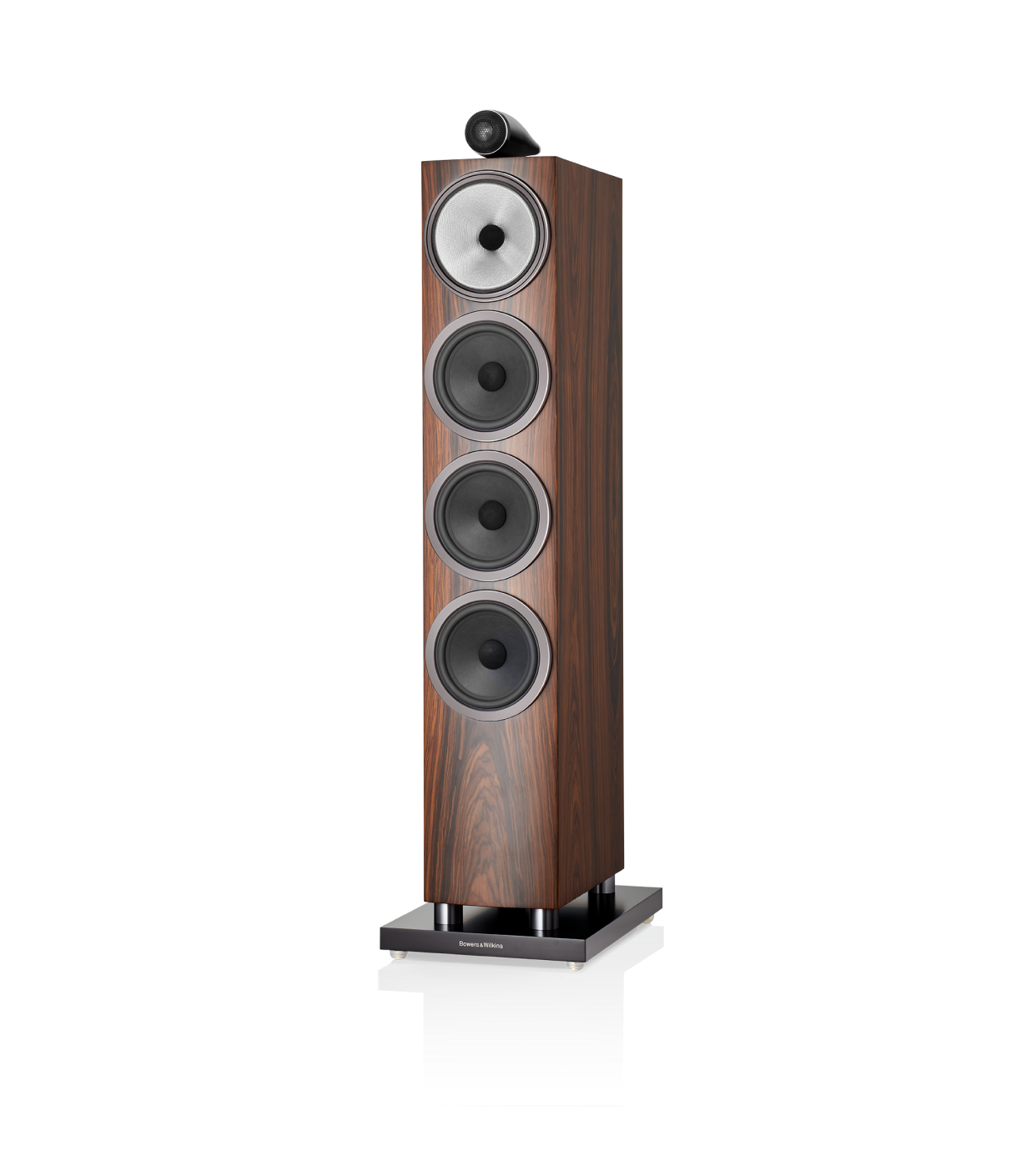

Specifications Bowers & Wilkins 702 S3
Size & Weight
| Dimensions |
Height: 1010 mm only housing
1138 mm including tweeter and plinth
Width: 192 mm only housing
290 mm including plinth
Depth: 354 mm only housing
391 mm including grille and connections
410 mm including plinth |
| Net weight |
33.46 kg |
Technical details
| Technical characteristics |
Disconnected carbon dome tweeter
Solid Body Tweeter-On-Top
Continuum ™ Cone FST ™ Midrange
Disconnected midrange
Aerofoil ™ Profile Bas Conus
Flowport ™ |
| Description |
3-way Vented-box system |
| Drivers |
1x Ø25mm (1 in) disconnected carbon dome high-frequency
1x Ø150mm (6 in) Continuum Cone FST Midrange
3x Ø165mm (6.5 in) Aerofoil Profile Bas |
| Frequency range |
28HZ - 33KHZ |
| Frequency response |
46HZ - 28KHZ ± 3DB |
| Sensitivity |
90DB SPL (2.83VRMS, 1m) |
| Harmonic distortion |
2nd and 3rd harmonics (90 dB, 1 m on the axis)
<1% 86Hz - 28kHz
<0.5% 110HZ - 20KHZ |
| Nominal impedance |
8 Ω (minimum 3.1 Ω) |
| Recommended amplifier power |
30 W - 300 W in 8 Ω on signal without clipping |
| Max. Recommended cable resistance |
0.1Ω |
Finish
| Housing: |
Glossy black
Satin White
Mocha |
| Grille: |
Black
Gray (Satin White only) |
