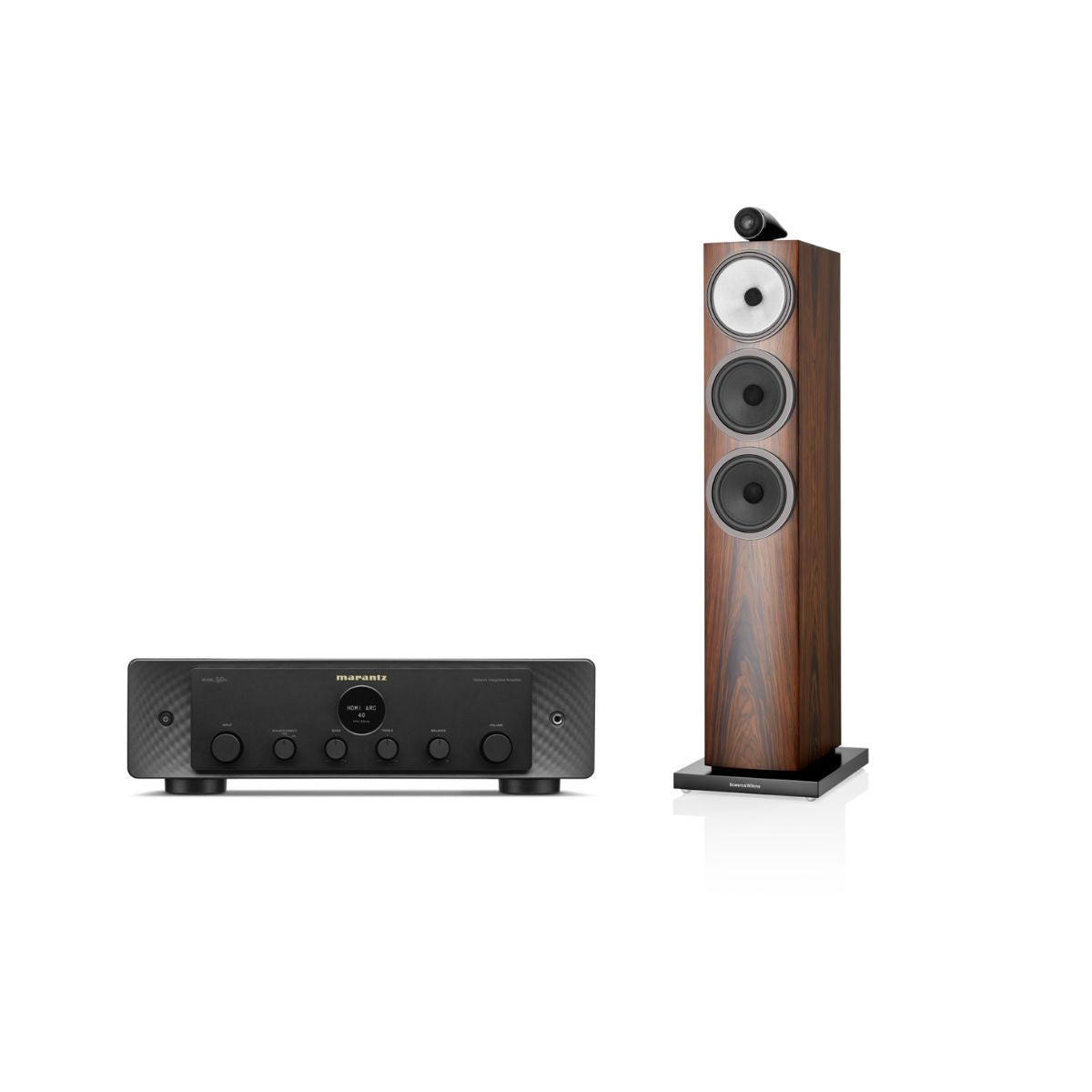

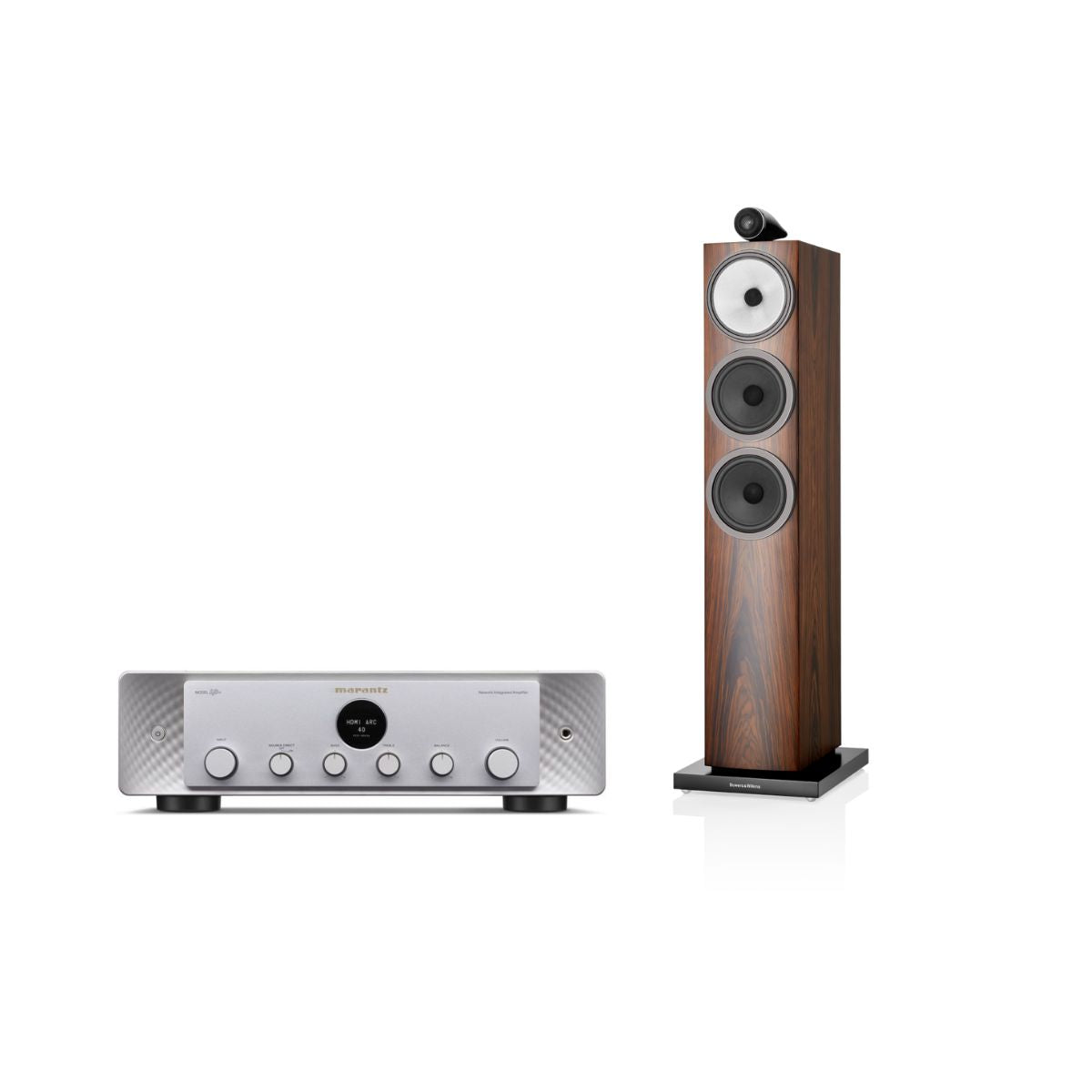

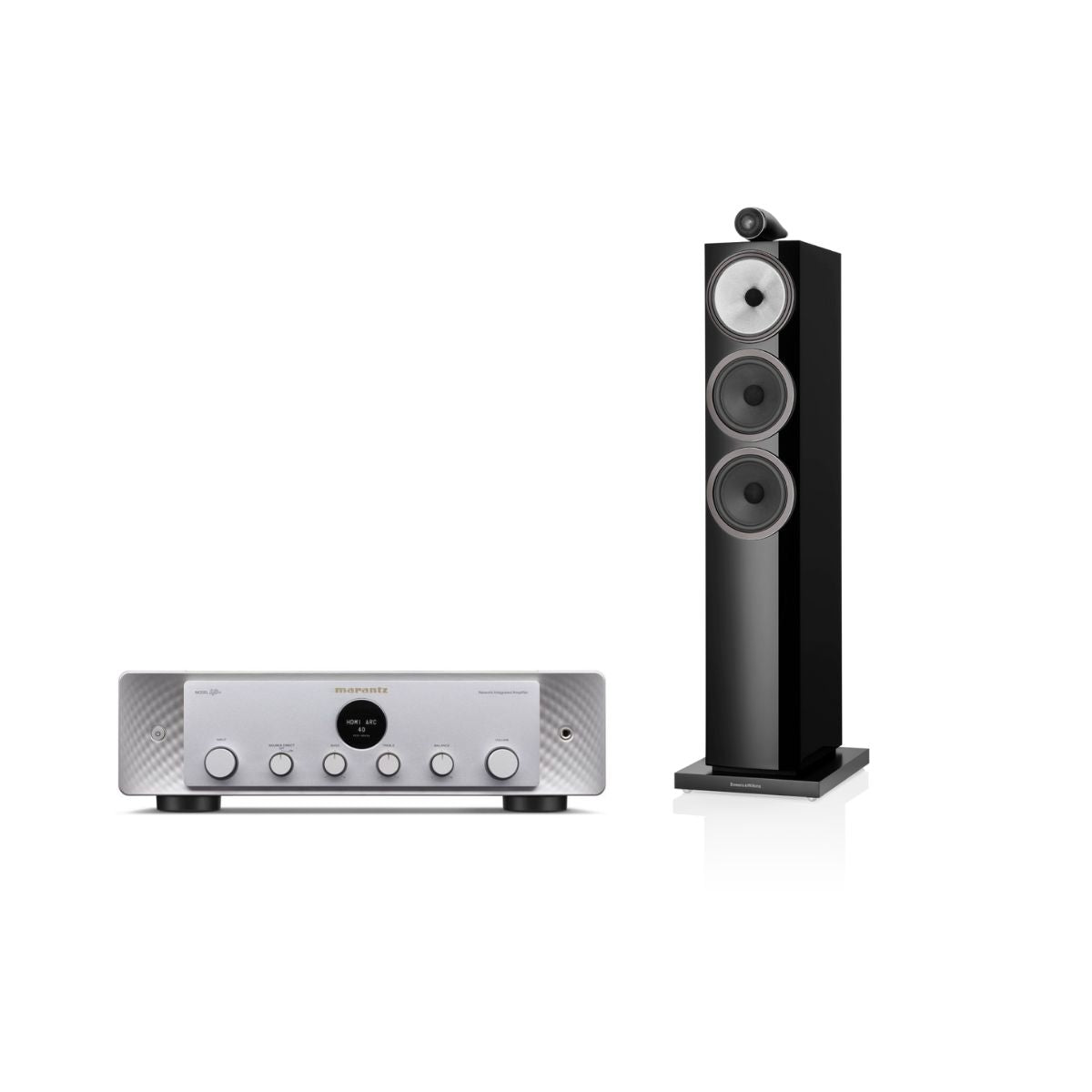

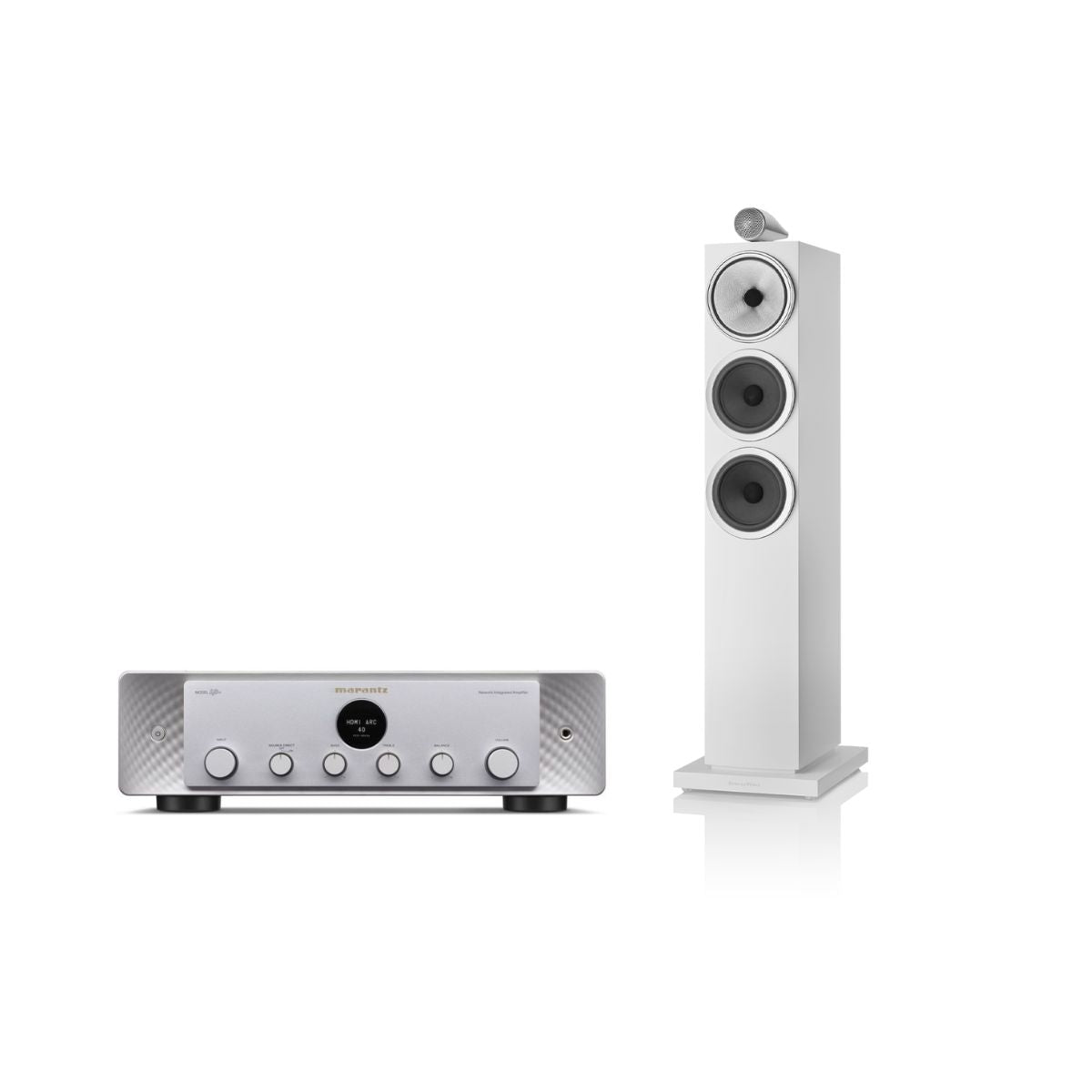

Combi Deal: Marantz Model 40 + Bowers & Wilkins 703 S3

Marantz

The combination of the Marantz Model 40N and the Bowers & Wilkins 703 S3 is a powerful and musical duo that will certainly appeal to Audiophiles.

Colour Marantz: Black
Color Bowers & Wilkins: Black
Price:
SALE PRICE€5.950,00 Standard price€7.500,00

Including VAT

stock:
Orderable - on order with the supplier
 More payment options

✔Already 9 years Your HiFi Specialist

✔️ Customer review 4.9/5.0

✔️ The same day free sent*

✔Emergency and evening delivery possible*

✔️ Experience it in our shop in Mijdrecht

(*: if in stock)

OrangeAudio - Mijdrecht

Usually ready in 24 hours

Afspraak maken

Specifications

Marantz Model 40 + Bowers & Wilkins 703 S3


Channel

2

Current feedback topology

O

Fully balanced circuit architecture

-

Double Mono Power Amp Construction

-

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium

- / o / -

Digital in: USB-B / Optical / Coaxial / USB-A

- /1 / 1 / 1

Sample rate digital

192 KHz / 24-Bits

USB-A: DSD / WAV / FLAC / AIFF / ALAC

<=5,6 / 192 / 192 / - / 192

USB-B DSD-Audiostreanding (DOP): DSD2.8 / DSD5.6

-

USB-B PCM Sample Rate

-

DAC-chip

ES9016K2M

Asynchronous mode USB at the rear

-

BIT-PERFECT transmission

-

Ground isolator for operation in DAC-Modus

-

Tuner: DAB / DAB + / FM (RDS)

-

Bluetooth / APTX / NFC

o / - / -

Audiostreanding from PC

O

Wi-Fi / wired lan

o / ed

Internet radio

O

AIRPLAY 2

O

Roon tested

O

Spotify Connect* / TIDAL* / DEEZER* / OTHER*

O / O / O / O

Amazon Prime Music* / Pandora*

o / -

Heos Multiroom and Streaming

O

Voting control - Works with Amazon Alexa

O

Voting control - Google Assist / Apple Siri

O

Voting control - Built -in microphone

-

DSDAudio Network streaming

O

Lossy formats MP3 / WMA / AAC

O / O / O

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF

O / O / O / O / -

Play without interruptions

O

Remote App: iDevice / Android

o / ed

Analogue

-

Hdam version

SA3, SA2

Netvoeding transformer: ring core/egg

o / -

High -quality audio components

O

Specially designed components

O

Symmetrical printing plate

O

Extruded aluminum cooling elements

O

Prospective chassis

-

Balance/bass/high tones/loudness

O / O / O / -

Double -layer bottom plates

O

Noise-clear screen

O

Other

Marantz Musical digital filtering

O

Linear drive feed

O

Linear volume control

Muses 72323

Bi-Amm and Meerkanaals option

-

Shottky diodes

O

Buffer reinforcement inputs (all entrances/CD only)

- / -

Shielding system elements: copper/metal/none

- / o / -

Ruisarm LCD screen

-

Source directly

O

Final amplifier Direct

O

5 mm aluminum top plate

-

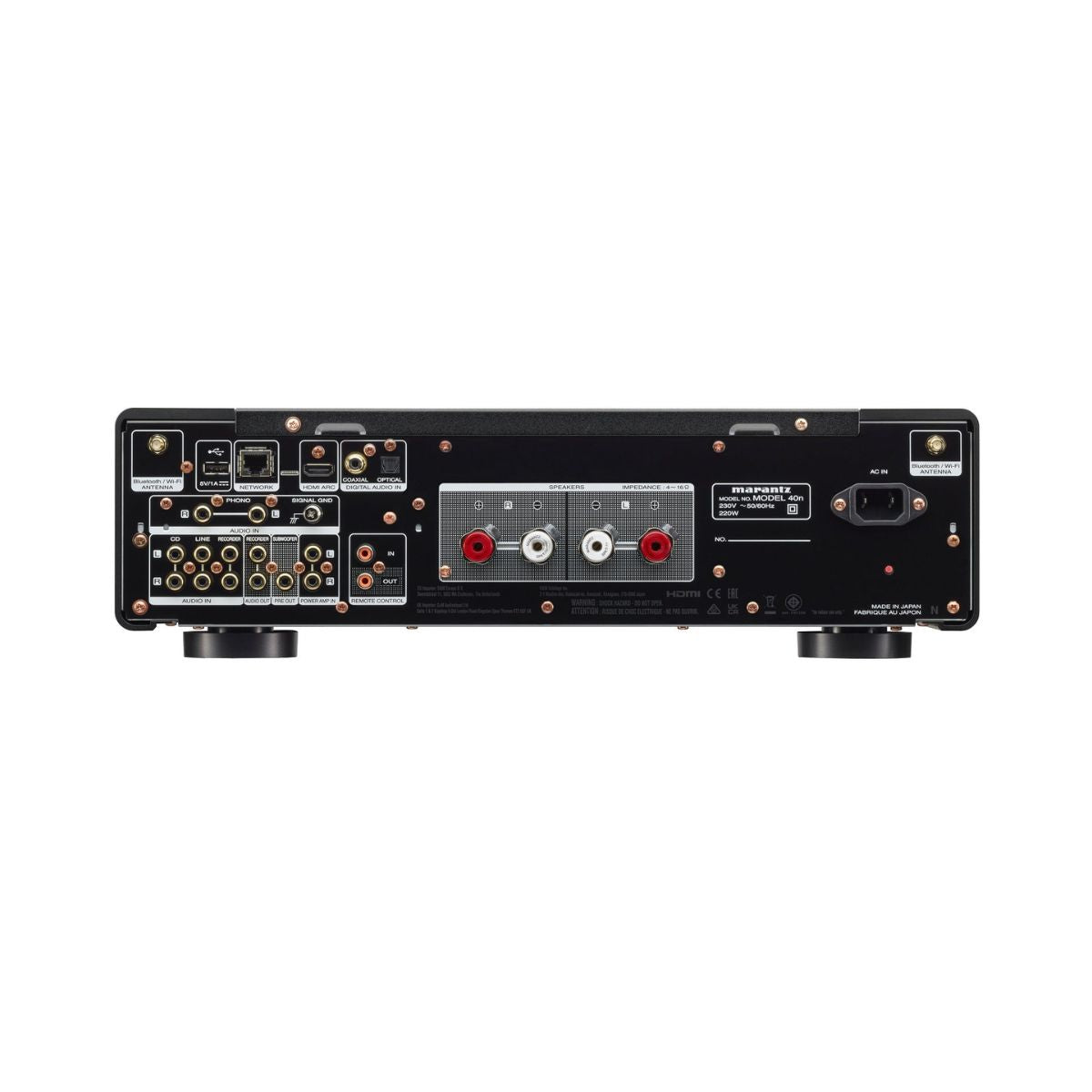

Inputs/outputs

Audio-inputs

4

Digital in: USB-B / Optical / Coaxial / USB-A

- / 1 / 1 / 1

Auto Power On Through Digital Input Signal

O

TV learning remotely

-

Phono-ing input: mm/mc

o / -

Audio-Tanangs

1

Balanced in / out

-

Front. out/head in

Subwoofer / -

Final amplifier Direct

O

HDMI: Inputs / outputs

1 / -

Gilded cinch

O

Speaker a / b

-

Speaker connections

Marantz SPKT-1+

Number of connections

2

D-Bus

O

Floating Control BUS SYSTEM (2 x 3.5 mm Mono-decker)

-

Headphone

O

Headphones gain control (layer / middle / high)

-

Specifications

Output power (8/4 Ohm RMS)

70 W / 100 W.

Frequency range

5 HZ-100 KHz

Total harmonic distortion

0.02 %

Damping factor

100<

Input sensitivity: mm

1.6 MV / 47 KOHM

Input sensitivity: MC

-

Signal-noise ratio: MM/MC

87 dB / -

Input sensitivity: High level

220 MV / 16 Kohm

Input sensitivity: balanced high level

-

Signal-noise ratio DAB (Mono/Stereo)

113 dB

Input sensitivity: Power AMP directly in

1.5 V / 15 Kohm

Signal-noise ratio: power amplifier directly in

-

Generally

Available colors: gold / silver / black / silver-gold

- / / / O / O

Metal front panel

O

Energy consumption in W

220

Consumption during standby in W

0.3

Automatic switch -off

O

Removable power cord

O

Remote control

RC005PM

System remote function

O

Maximum dimensions (B x D x H) in mm

443 x 432 x 130 cm

Weight in kg

16.7

Maximum dimensions of the box (B x D x H) in mm

534 x 522 x 255 cm

Weight of the box (incl. Product) in kg

19.6

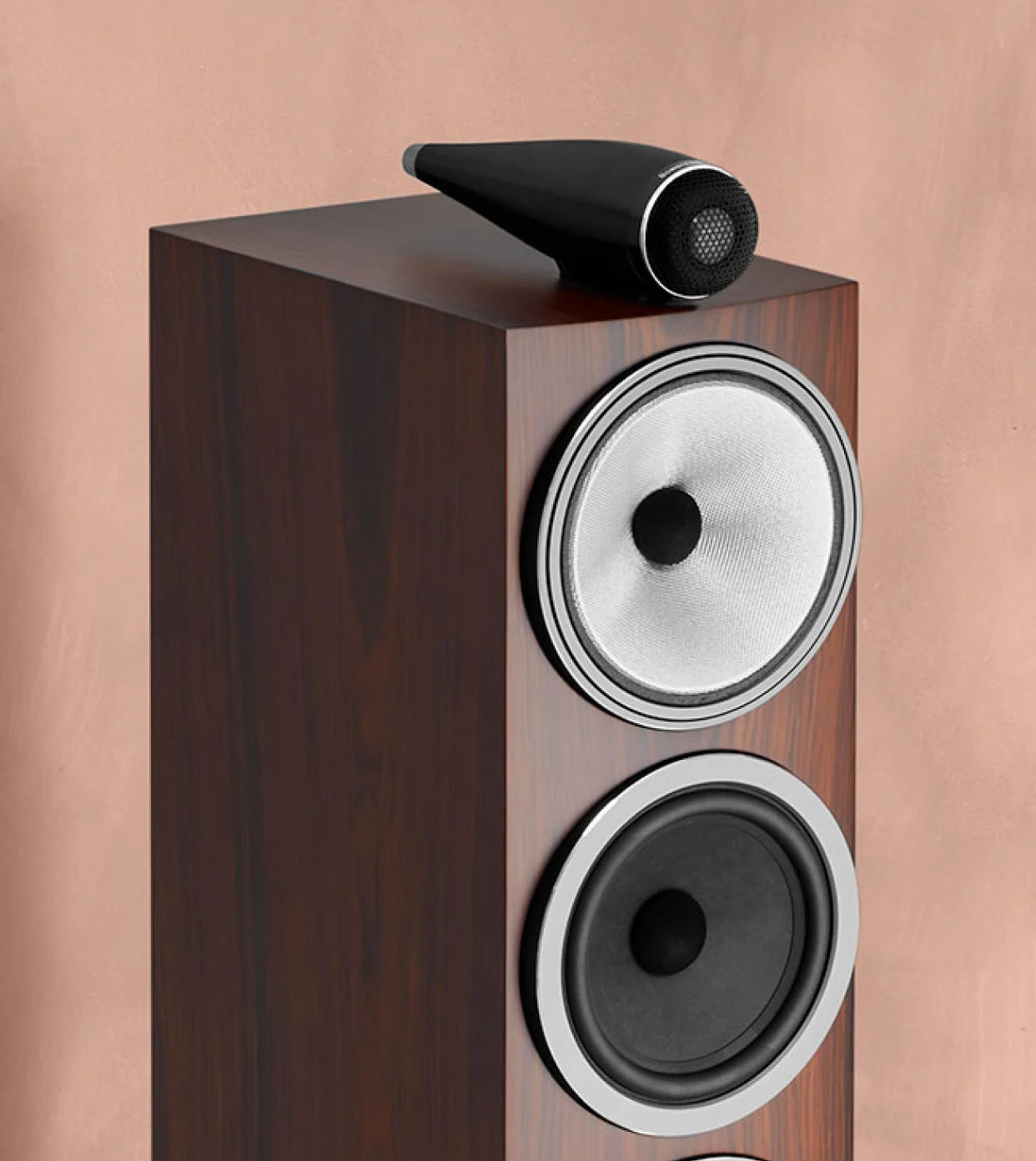

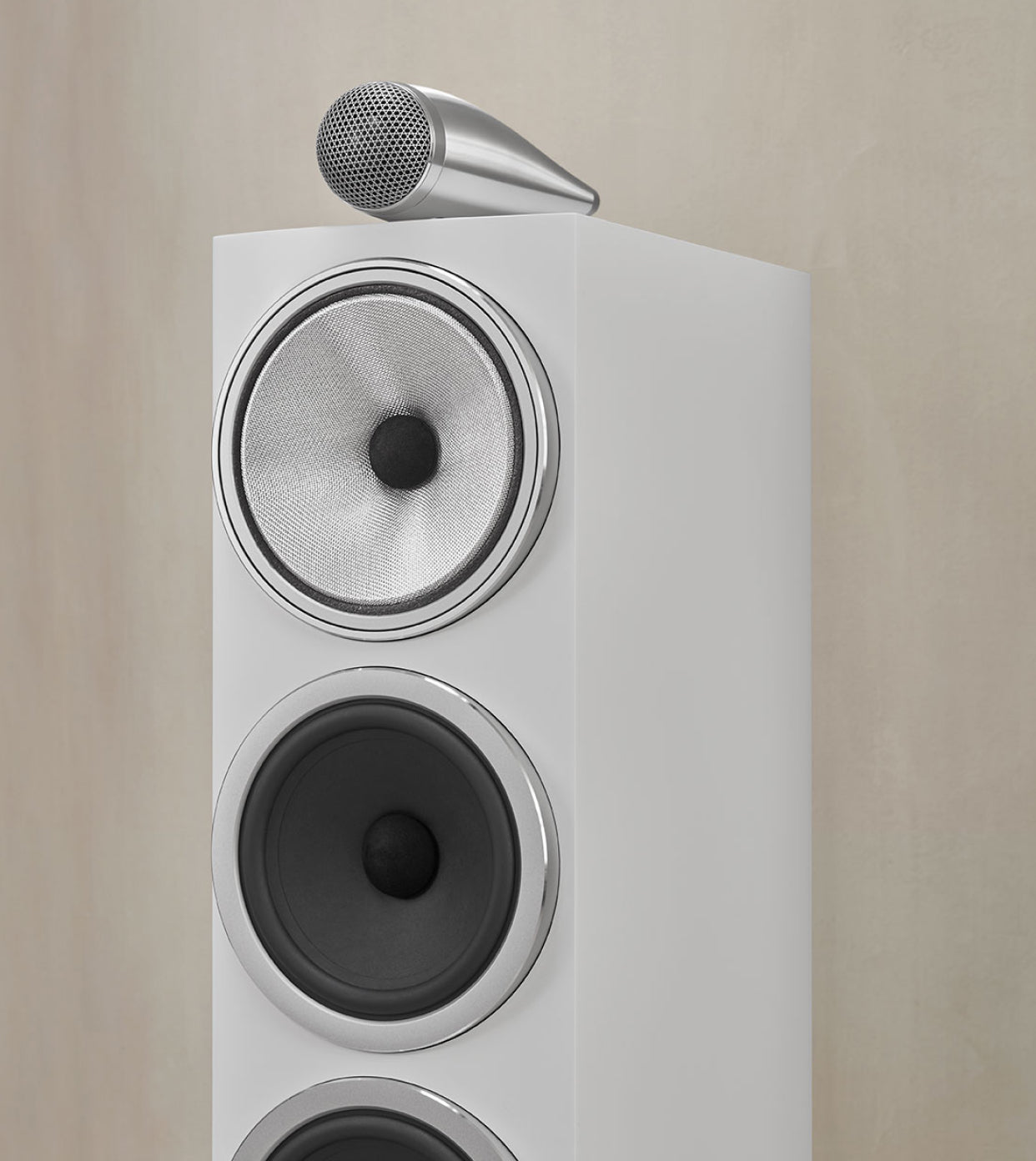

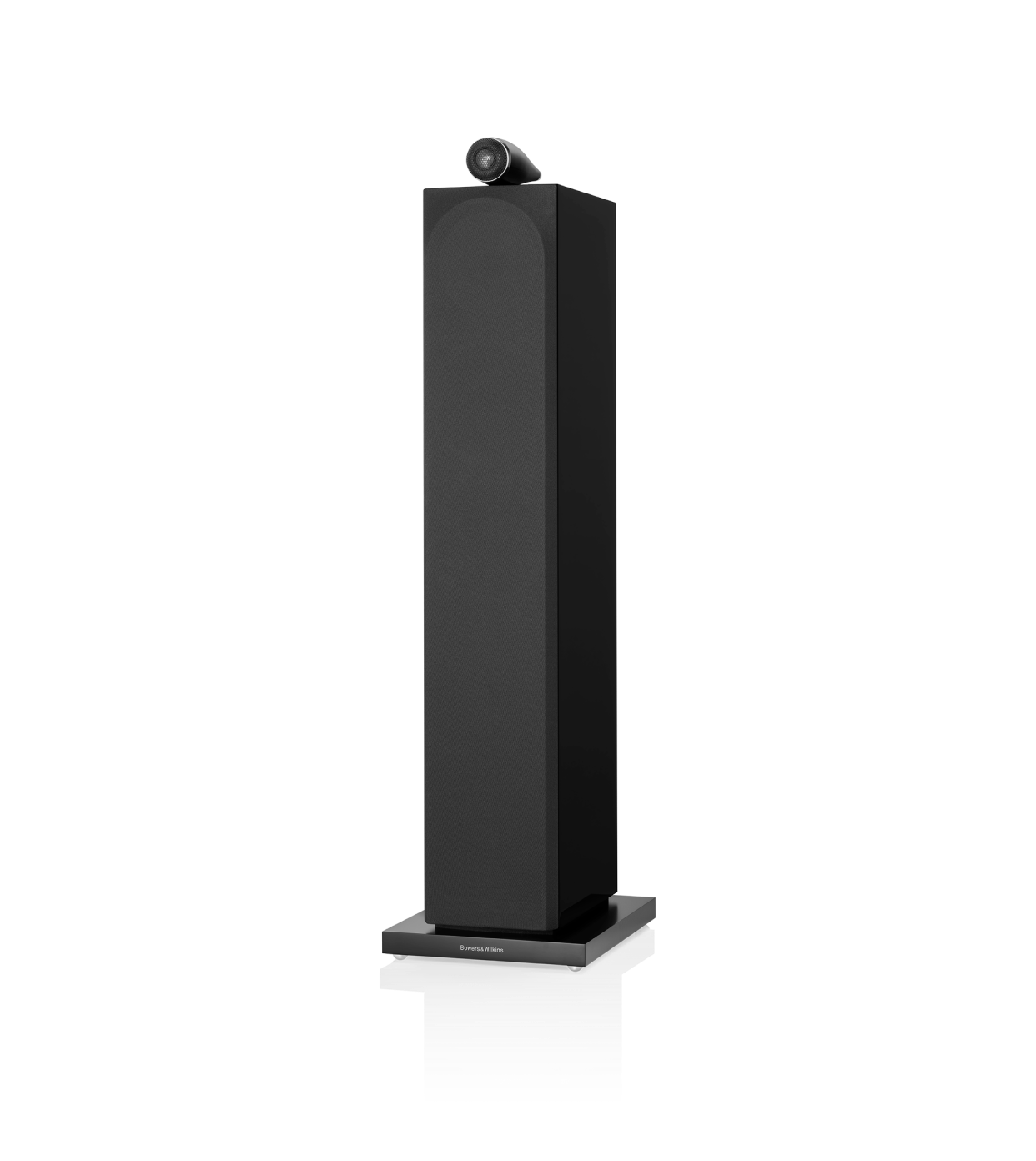

Specifications Bowers & Wilkins 703 S3



Size & Weight

Dimensions Height: 1010mm only housing
1117mm including tweeter and plinth
Width: 192mm only housing
290mm including plinth
Depth: 316mm only housing
353mm including grille and connections
372 mm mm including plinth
Net weight 28,81 kg

Technical details

Technical characteristics Disconnected carbon dome tweeter
Solid Body Tweeter-On-Top
Continuum ™ Cone FST ™ Midrange
Disconnected midrange
Aerofoil ™ Profile Bas Conus
Flowport ™
Max. Recommended cable resistance 0.1Ω
Description 3-way Vented-box system
Drivers 1x Ø25mm (1 in) disconnected carbon dome high-frequency
1x Ø150mm (6 in) Continuum Cone FST Midrange
2x Ø165mm (6.5 in) Aerofoil Profile Bass
Frequency range 30HZ - 33KHZ
Frequency response 46HZ - 28KHZ ± 3DB
Sensitivity 90DB SPL (2.83VRMS, 1m)
Harmonic distortion 2nd and 3rd harmonics (90db, 1m on the axis)
<1% 90HZ - 22KHZ
<0.5% 120Hz - 20KHZ
Nominal impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 30 W - 200 W in 8 Ω on signal without clipping

Finish

Housing: Gloss Black
Satin White
Mocha
Grill: Black
Gray (Satin White only)
