Specifications

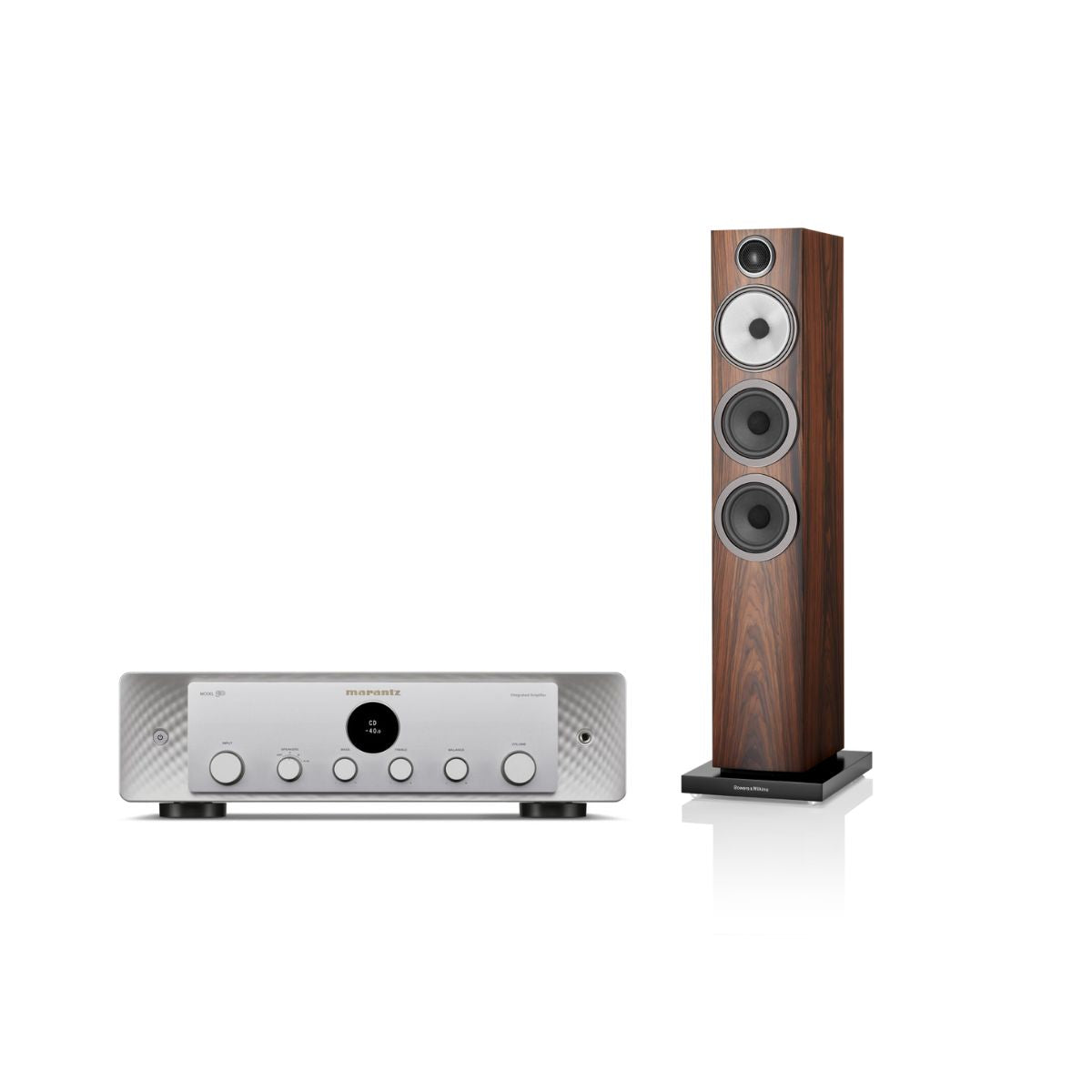

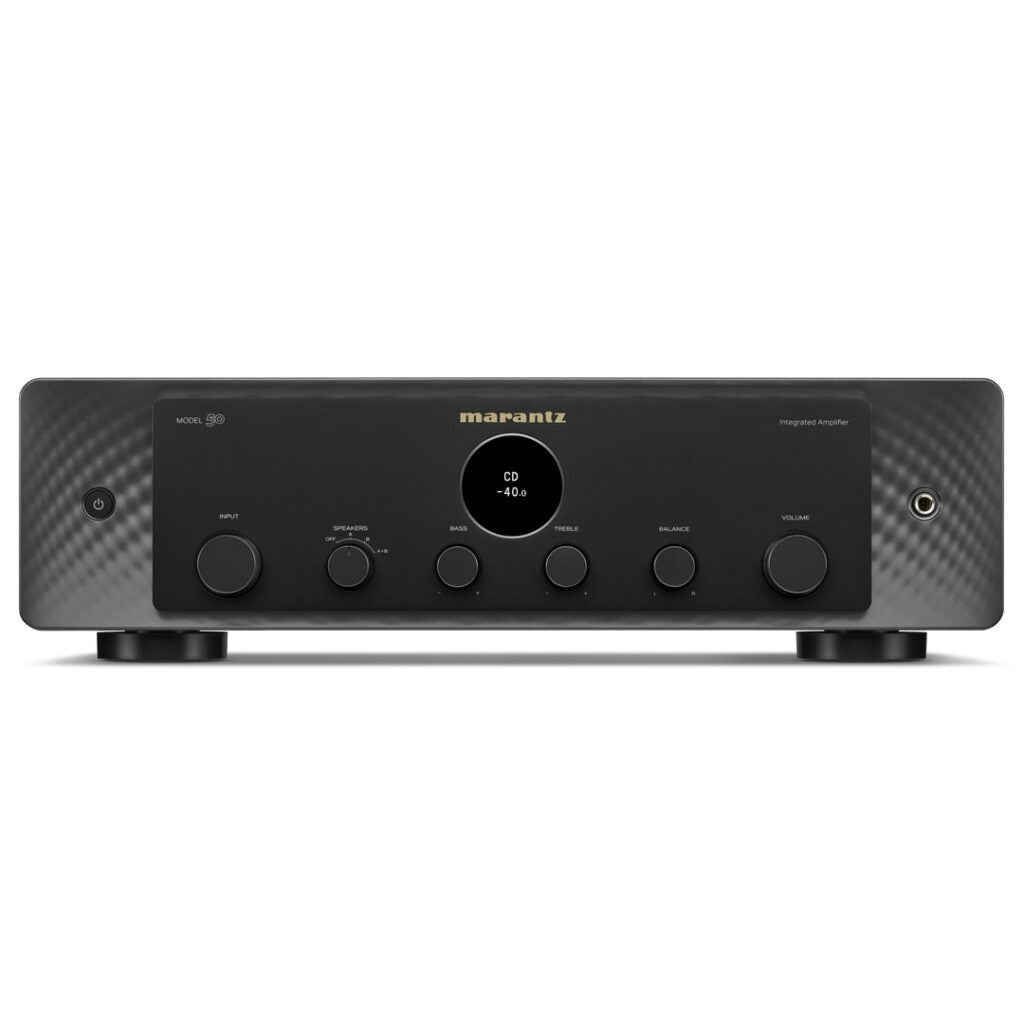

Marantz Model 50 + Bowers & Wilkins 704 S3
Features
| Channel |
2 |
| Current feedback topology | O |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | - / o / - |
| Digital In: USB-B / Optical / Coaxial / USB-A | - / - / - / - |
| Hdam version | SA3, SA2 |
| Netvoeding transformer: ring core/egg | o / - |
| High -quality audio components | O |
| Specially designed components | O |
| Symmetrical printing plate | O |
| Extruded aluminum cooling elements | O |
| Balance/Bass/Treble/Loudness | O / O / O / - |
Other
| Linear Drive Power Supply | O |
| Linear volume control | O |
| Schottky Diodes | O |
| Buffer reinforcement inputs (all entrances/CD only) | - / O |
| Solid Heat Sinks | O |
| Shielding system elements: copper/metal/none | - / - / O |
| Double layered base plate | 3 |
| OLED screen with little noise | O |
| Source directly | O |
| Power Amp Direct | O |
Inputs/outputs
| Audio-inputs | 6 |
| Digital In: USB-B / Optical / Coaxial / USB-A | - / - / - / - |
| Phono-ing input: mm/mc | o / - |
| Audio-Tanangs | 1 |
| Balanced in / out | - / - |
| Front. out/head in | O + Subwoofer / - |
| Power Amp Direct | O |
| Gilded cinch | O |
| Speaker a / b | O |
| Loudspeaker connections | Marantz SPKT-1+ |
| Number of connections | 4 |
| D-Bus | O |
| Headphone | O |
Specifications
| Output power (8/4 Ohm RMS) | 70 W / 100 W. |
| Frequency response | 5 Hz - 100 KHz |
| Total harmonic distortion | 0.02 % |
| Damping factor | 100 |
| Input sensitivity: mm | 1.4MV / 47 Kohm |
| Signal-noise ratio: MM/MC | 87 dB / - |
| Input sensitivity: High level | 185 MV / 16 Kohm |
| Signal-noise ratio DAB (Mono/Stereo) | 116db (2v input) |
| Input sensitivity: Power AMP directly in | 1.5V / 15 kohm |
| Signal-noise ratio: Power AMP directly in | 125 dB |
| High tones control | ± 10 dB at 15 kHz |
| Bass | ± 10 dB at 50 Hz |
Generally
| Available colors: gold / silver / black / silver-gold | - / / / O / O |
| Metal front panel | O |
| Energy consumption in W | 220 |
| Consumption during standby in W | 0,3 |
| Automatic switch -off | O |
| Removable power cord | O |
| Remote control | RC003PMND |
| System Remote function | O |
| Maximum size (W x D x H) in mm | 442 x 431 x 130 |
| Weight in kg | 14,2 |
| Maximum dimensions box (B x D x H) in mm | 527 x 517 x 255 |
| Weight box (including product) in kg | 17,5 |

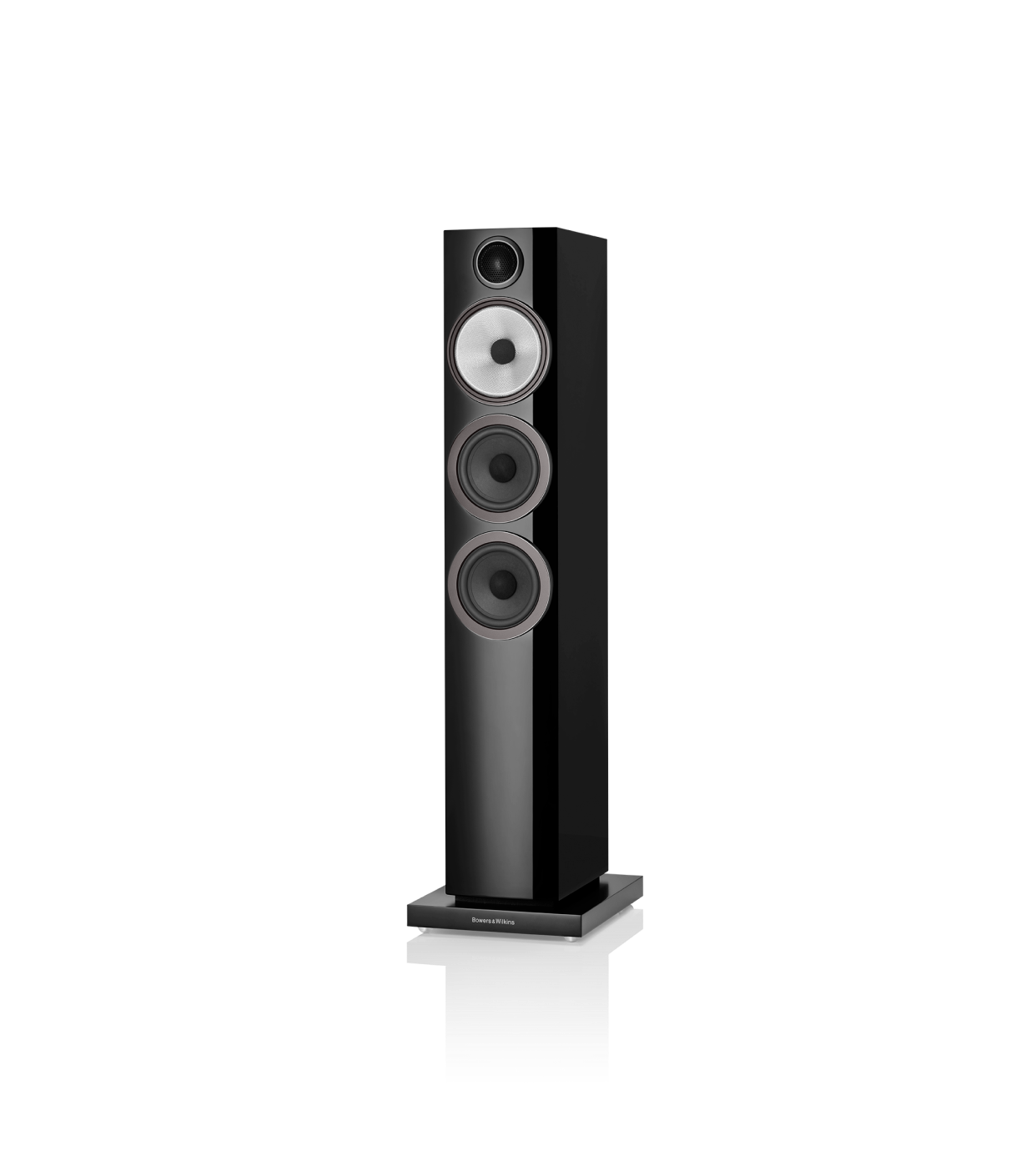

Specifications Bowers & Wilkins 704 S3
Size & Weight
| Dimensions | Height: 925 mm only housing 964 mm including plinth Width: 165 mm only housing 252 mm including plinth Depth: 263 mm only housing 300 mm including grille and connections 321 mm including plinth |
| Net weight | 20.53 kg |
Technical details
| Technical characteristics | Disconnected carbon dome tweeter Continuum ™ Cone FST ™ Midrange Disconnected midrange Aerofoil ™ Profile Bas Conus Flowport ™ |
| Description | 3-way Vented-box system |
| Drivers | 1x Ø25mm (1 in) disconnected carbon dome high-frequency 1x Ø130mm (5 in) Continuum Cone FST Midrange 2x Ø130mm (5 in) Aerofoil Profile Bas |
| Frequency range | 43HZ - 33KHZ |
| Frequency response | 48Hz - 28kHz ± 3DB |
| Sensitivity | 88db SPL (on axle at 2.83VRMS by 1mm) |
| Harmonic distortion | 2nd and 3rd harmonics (90 dB, 1 m on the axis) <1% 100Hz - 22KHz <0.5% 300Hz - 20KHZ |
| Nominal impedance | 8Ω (minimum 3.1Ω) |
| Recommended amplifier power | 30 W - 150 W in 8 Ω on signal without clipping |
| Max. Recommended cable resistance | 0.1Ω |
Finish
| Housing: | Gloss Black Satin White Mocha |
| Grill: | Black Gray (Satin White only) |
