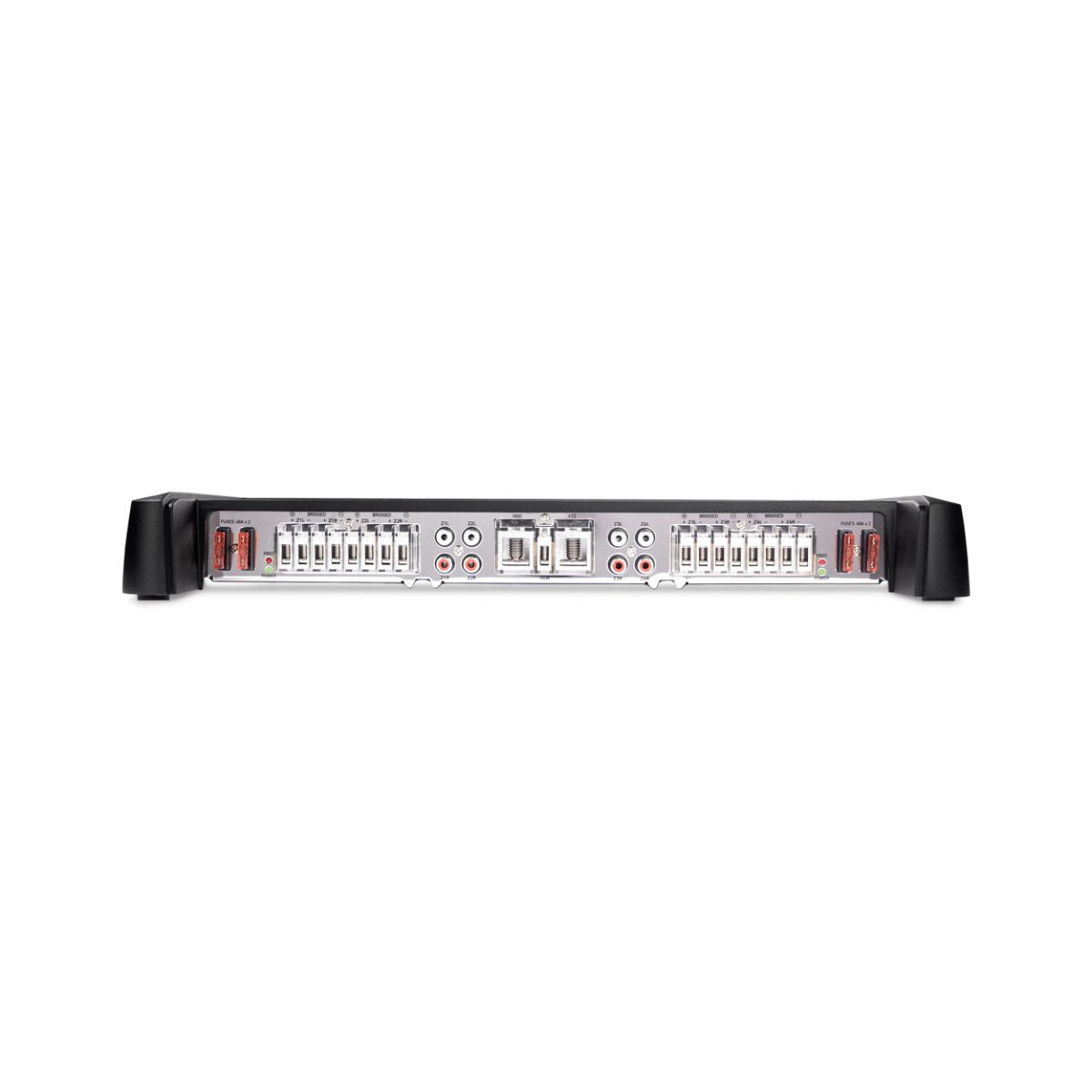

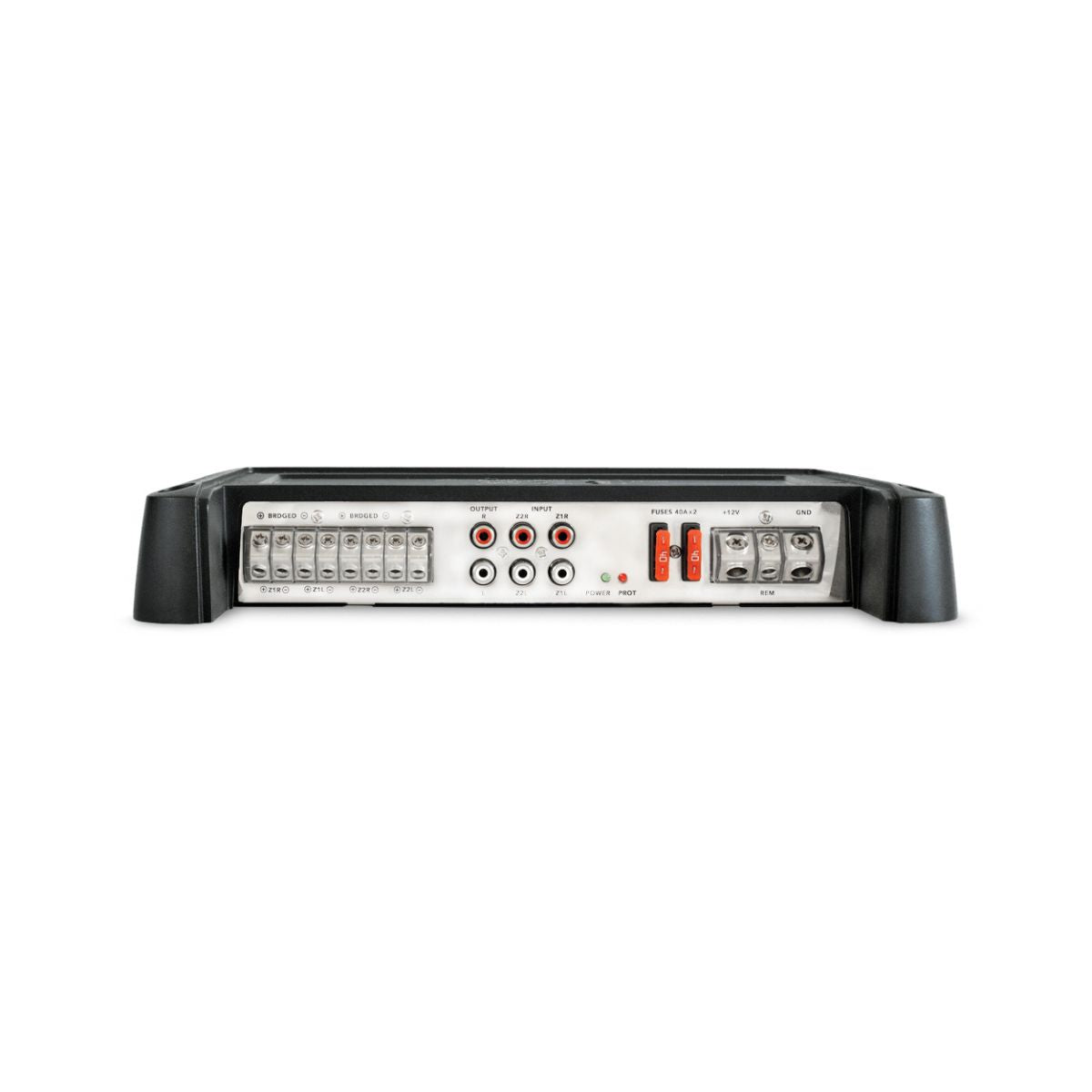

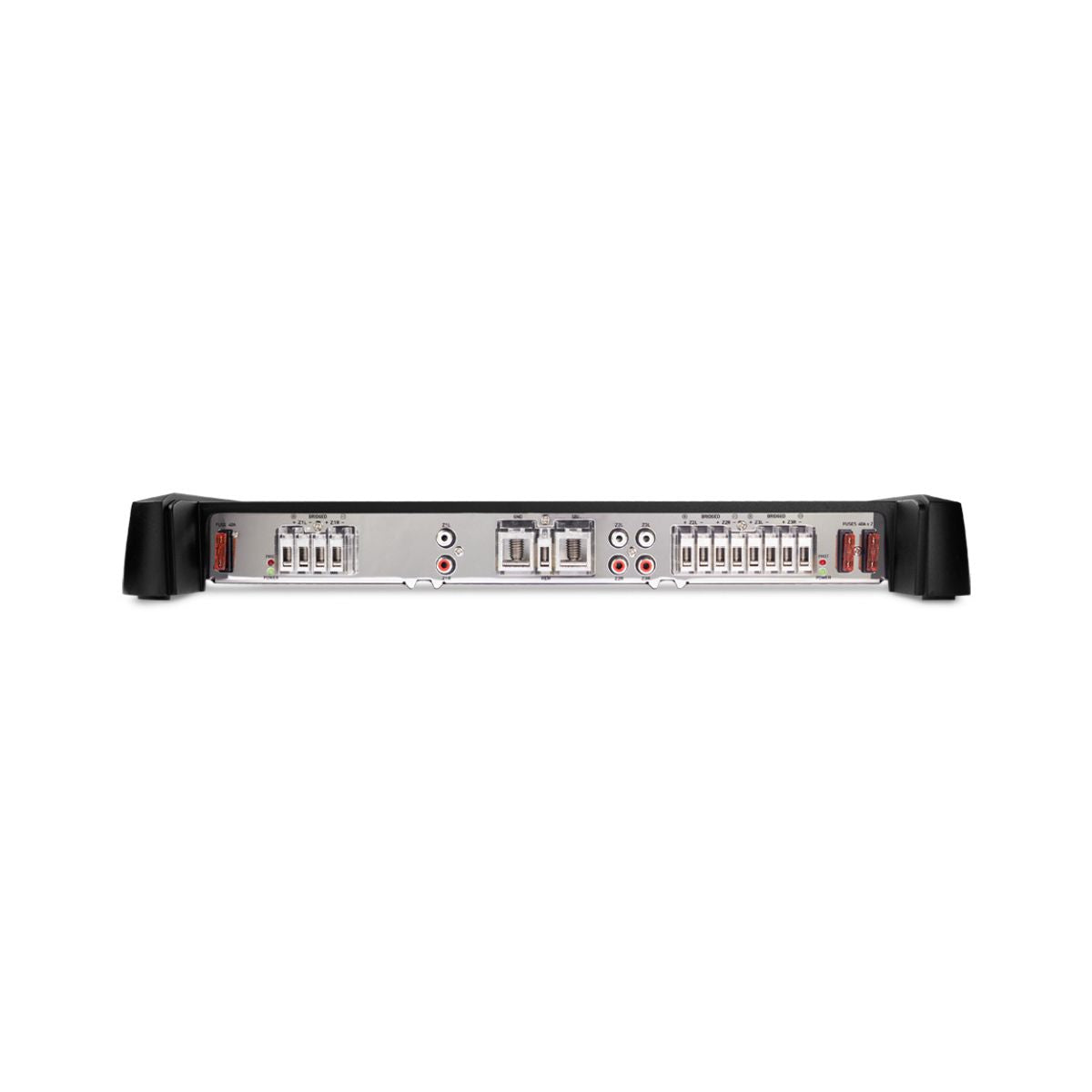

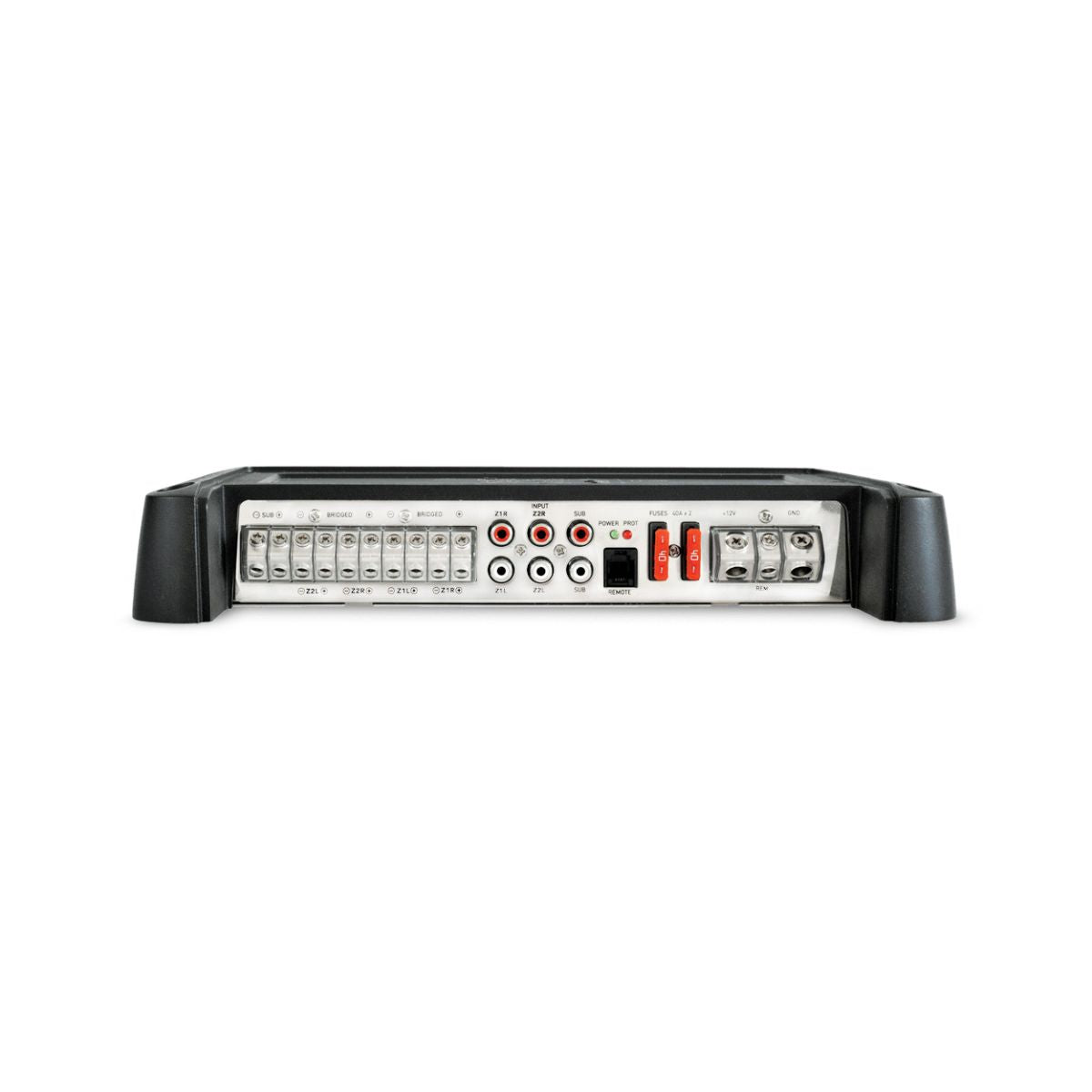

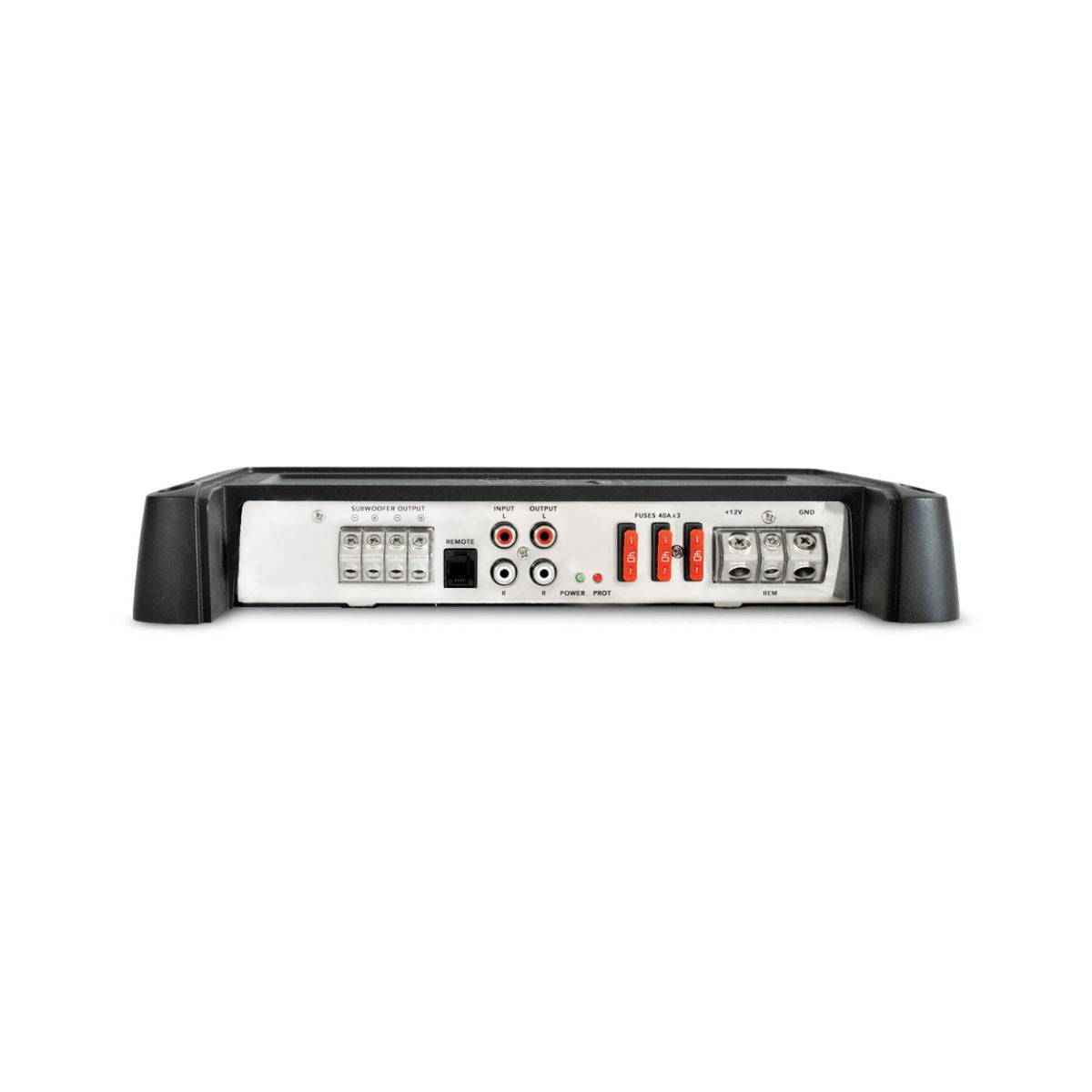

Fusion Signature Series nautical amplifiers

Roll over image to zoom in Click on image to zoom

Fusion Signature Series nautical amplifiers

FusionSKU: | EAN: 0753759153007 | -

Designed specifically for watersports purposes, the Signature Series marine amplifiers feature impressive protection against the elements for superior performance on the water

Channels: 1

Variant

Price:

€499,00

Tax included

Stock:

Re-stocking soon

Make your listening appointment here

✔Al 9 years your HiFi specialist

✔Customer review 4.9/5.0

✔Same day free shipped*

✔Emergency and evening delivery possible*

✔Experience it in our shop in Mijdrecht

(*: if in stock)

General
Channels	Monoblock/4/5/6/8
Physical dimensions (height)	210mm (8.27")
Physical dimensions (width)	Monoblock/4/5-channel: 300mm (11.81") 6/8 channel: 420mm (16.54")
Physical dimensions (depth)	Monoblock/4/5-channel: 50mm (1.97") 6/8 channel: 57mm (2.24")
Weight	Monoblock: 3.8 kg (8.38 lbs) 4-channel: 3.53 kg (7.77 lbs) 5-channel: 3.6 kg (7.94 lbs) 6-channel/6-channel (24 V): 5.3 kg (11.68 lbs) 8-channel: 5.6 kg (12.35 lbs)
Operating temperature	0° to 50° C (32° to 122° F)
Warranty	3 years
Operating voltage	Monoblock/4/5/6/8 channel: 10.8-16 VDC 6-channel (24 V): 21.6-32 VDC

Audio
Amplifier class	Class D
RMS power (rated continuous) (14.4 V input into 4 ohms < 1% THD)	Monoblock: 500W x 1 4-channel: 150W x 4 5-channel: main: 80 W x 4/sub: 250W x 1 6-channel: 100W x 6 8-channel: 100W x 8
RMS power (rated continuous) (14.4 V input into 2 ohms < 1% THD)	Monoblock: 850W x 1 4-channel: 220W x 4 5-channel: main: 130 W x 4/sub: 330W x 1 6-channel: 140W x 6 8-channel: 140W x 8
RMS power (rated continuous) (28.8 V input into 4 ohms < 1% THD)	6-channel (24V): 100W x 6
RMS power (rated continuous) (28.8 V input into 2 ohms < 1% THD)	6-channel (24V): 140W x 6
Frequency response (+0, -1 dB)	Monoblock: 10 Hz-320 Hz (-3 dB, dB @ 4 Ohm rated power) - only subwoofer 4/5 channel: 10 Hz-50 kHz (-3 dB, dB @ 4 Ohm nominal power) 6/8-channel and 24-Volt 6-channel: 10 Hz-40 kHz (-3 dB, dB @ 4 Ohm nominal power)
Input sensitivity at RCA inputs	0.3V-8V RMS (user adjustable)
Input voltage range at RCA inputs	0.3V-8V RMS (user adjustable)
Input impedance	Monoblock/5-channel: 4 kΩ nominal 4/6/8-channel and 24-volt 6-channel: 7 kΩ nominal
Power consumption (standby)	Monoblock/4/5/6/8 channel: < 1 mA @ 14.4 V input 6-channel (24 V): < 1 mA @ 28.8 V input
Power consumption (idle)	Monoblock/4/5/6/8 channel: < 2.5 A @ 14.4 V input 6-channel (24 V): < 1.25 A @ 28.8 V input
Power consumption (max.)	Monoblock: 120 A 4/5 channel: 80 A 6-channel: 75 A 8-channel: 100 A 6-channel (24 V): 35 A
Fuse	Monoblock/6-channel: 3 x 40 A ATC flat (SAE J1171 compliant) 4/5 channel: 2 x 40 A ATC flat (SAE J1171 compliant) 8-channel: 4 x 40 A ATC flat (SAE J1171 compliant) 6-channel (24 V): 3 x 20 A ATC flat (SAE J1171 compliant)
Min. Copper power/ground wire gauge	1

Signal Processing
Full range high pass/low pass filter	Yes (user selectable)
Variable crossover frequency range high pass filter	Monoblock: 10 Hz-80 Hz 4/5/6/8-channel and 24-Volt 6-channel: 32 Hz-320 Hz
Variable crossover frequency range low-pass filter	Monoblock: 32Hz-320Hz 4/5/6/8-channel and 24-Volt 6-channel: 32 Hz-320 Hz
Bass reinforcement	0 dB - 9 dB, user adjustable (zone 3 only)
