Description
Model

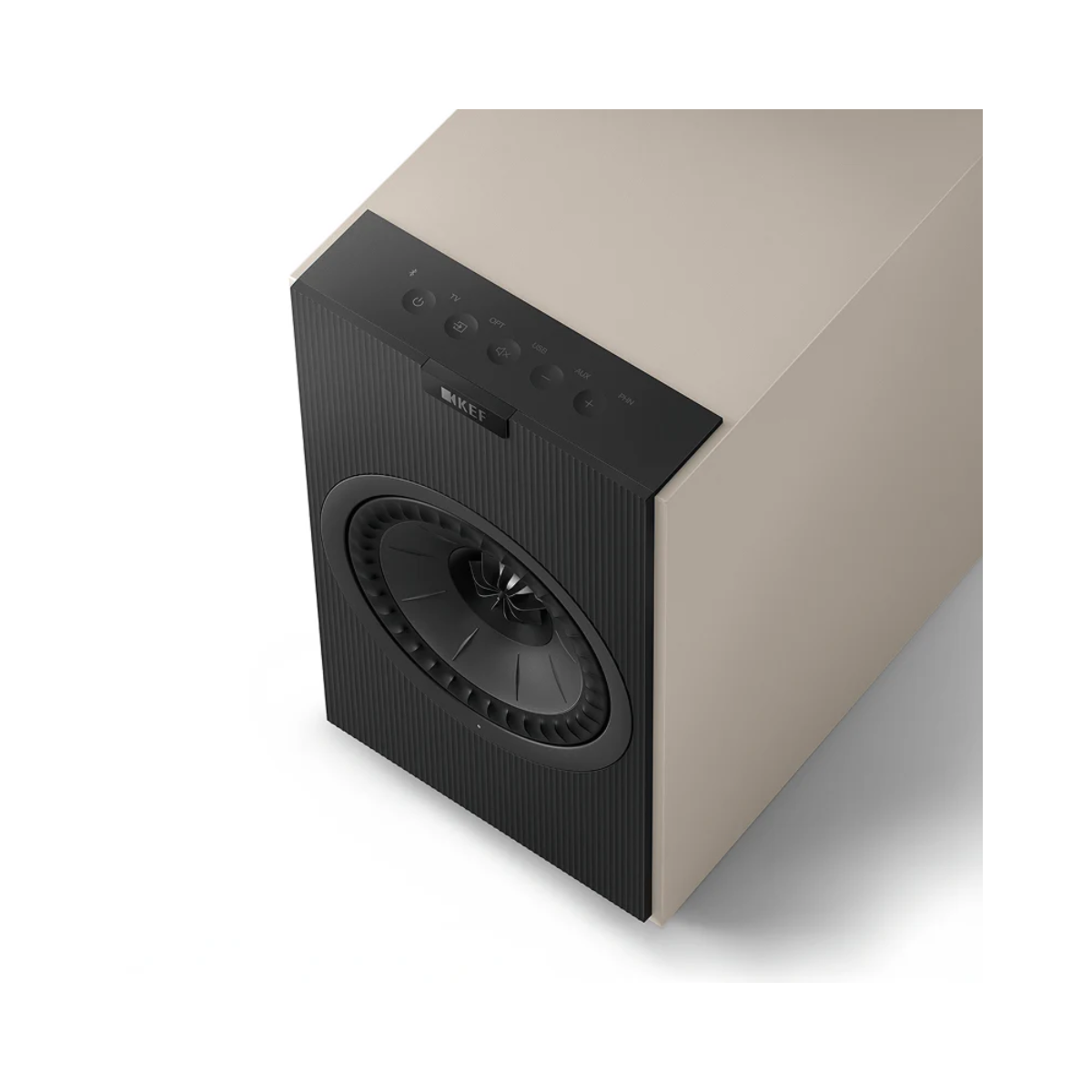

Coda W
Drive units![]()
Uni-Q Driver Array:
HF: 25 mm (1 in.) aluminum dome
LF/MF: 130 mm (5.25 in.) magnesium/aluminum alloy cone
HF: 25 mm (1 in.) aluminum dome
LF/MF: 130 mm (5.25 in.) magnesium/aluminum alloy cone
Frequency range (-6dB) measured at 85dB/1m
38Hz - 20kHz
*Depends on EQ Settings
*Depends on EQ Settings
Frequency response (±3dB) measured at 85dB/1m
41Hz - 20kHz
*Depends on EQ Settings
*Depends on EQ Settings
Amplifier output power (per speaker)
LF: 70W HF: 30W
Amplifier class (per speaker)
LF: Class D HF: Class D
Max SPL measured at 1m
102 dB
Wireless streaming features
Bluetooth 5.4
aptX Adaptive™, aptX Lossless™
aptX Adaptive™, aptX Lossless™
Source resolution
Optical up to 96kHz/24bit
USB Type C up to 192kHz/24bit
HDMI up to 1,411 Mbps PCM
*Depends on source resolution
USB Type C up to 192kHz/24bit
HDMI up to 1,411 Mbps PCM
*Depends on source resolution
Interspeaker connection
Wired: all sources resampled to 96kHz/24bit PCM
Dimensions (H x W x D per speaker)
285 x 168 x 268 mm (11.2 x 6.6 x 10.55 in.)
Weight (per set)
11.3kg
Power input
100 – 240VAC 50/60Hz
Power consumption
200W (operating power)
<0.5W (standby power)
<0.5W (standby power)

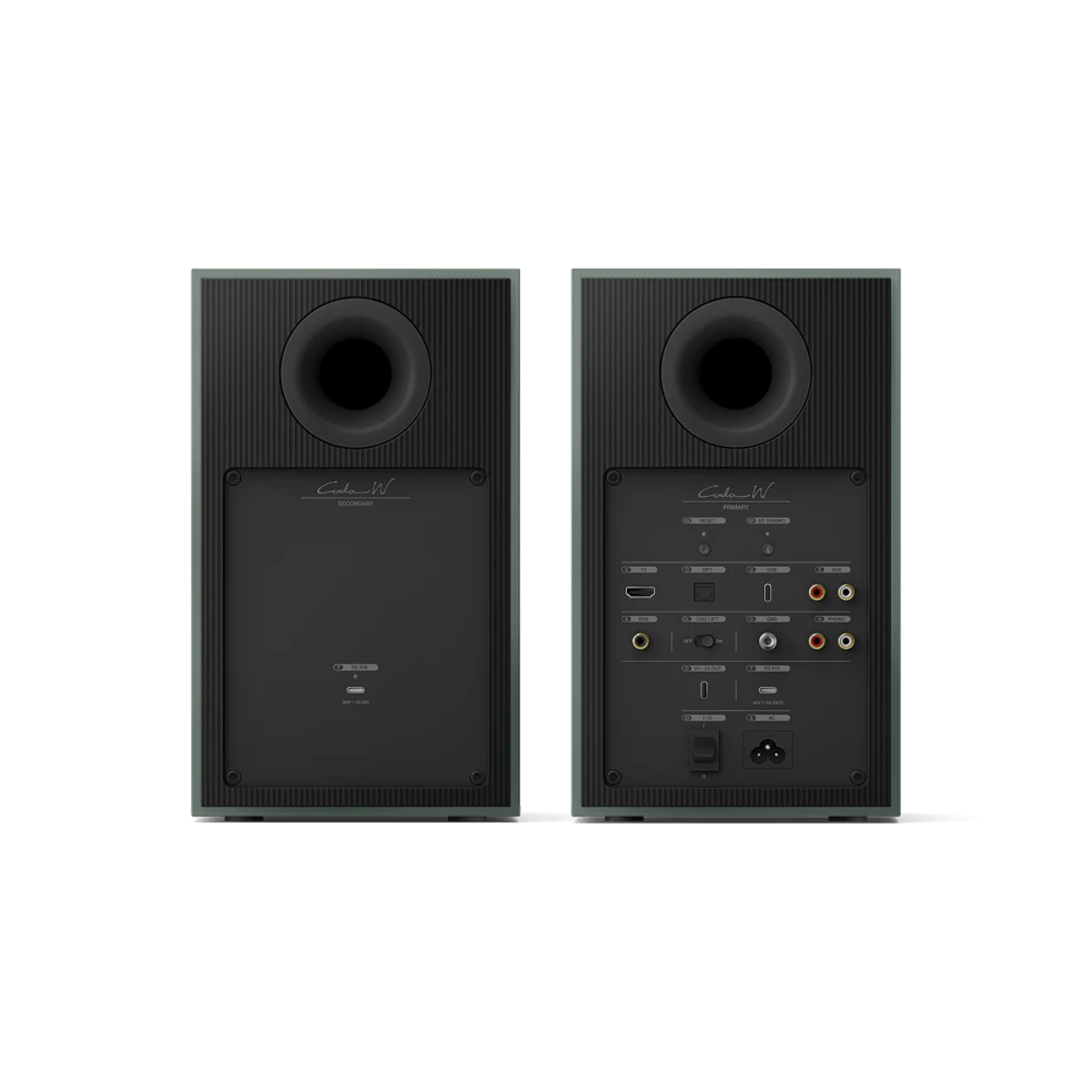

Primary speaker

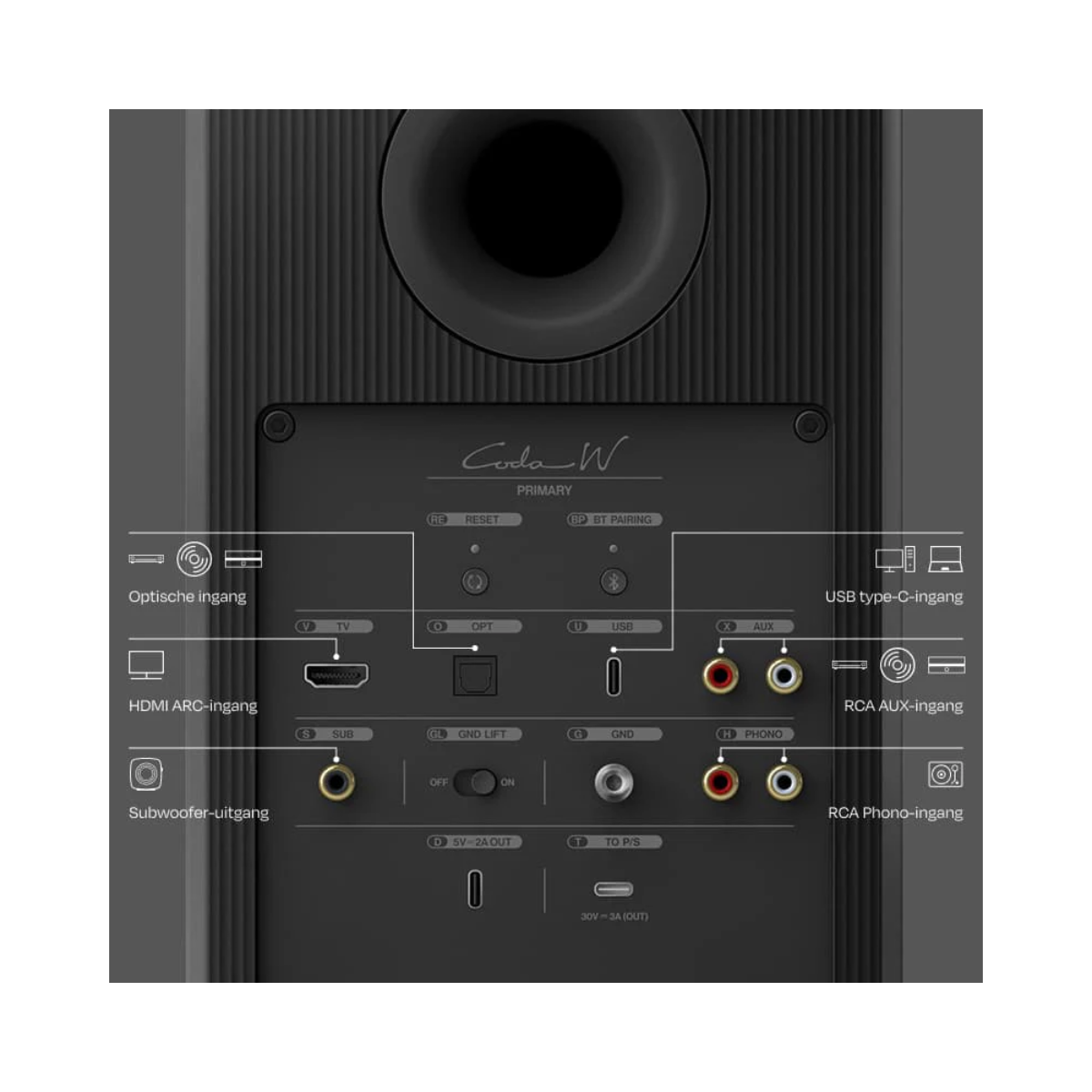

Inputs
HDMI
Optical
USB Type-C
RCA (Without Phono internship)
RCA (With Phono internship)
USB Type C (inter-speaker)
Bluetooth
Optical
USB Type-C
RCA (Without Phono internship)
RCA (With Phono internship)
USB Type C (inter-speaker)
Bluetooth
Output
RCA Subwoofer output
USB Type C (inter-speaker)
USB Type C (5V DC)
USB Type C (inter-speaker)
USB Type C (5V DC)
Secondary speaker
Inputs
USB Type C (inter-speaker)
