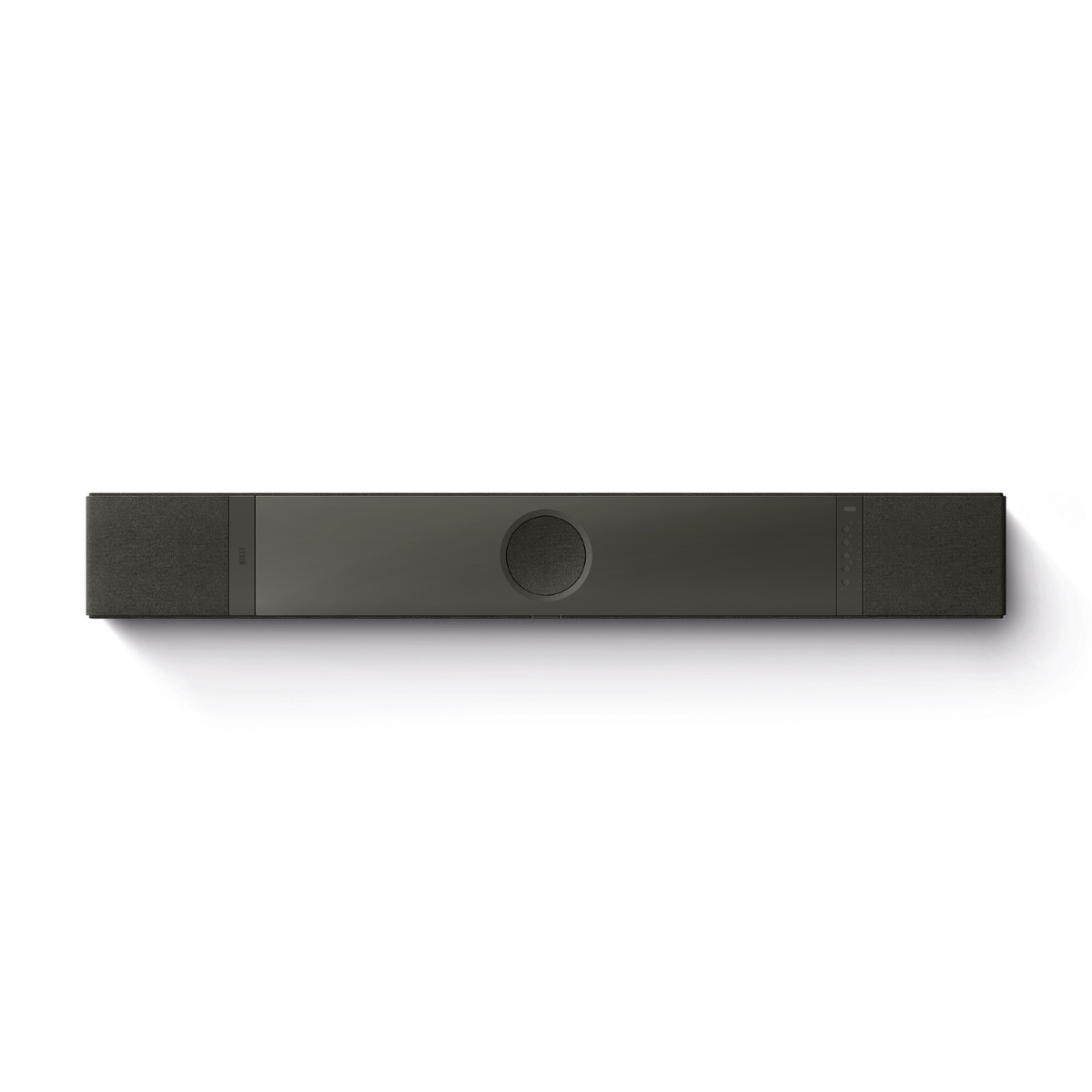

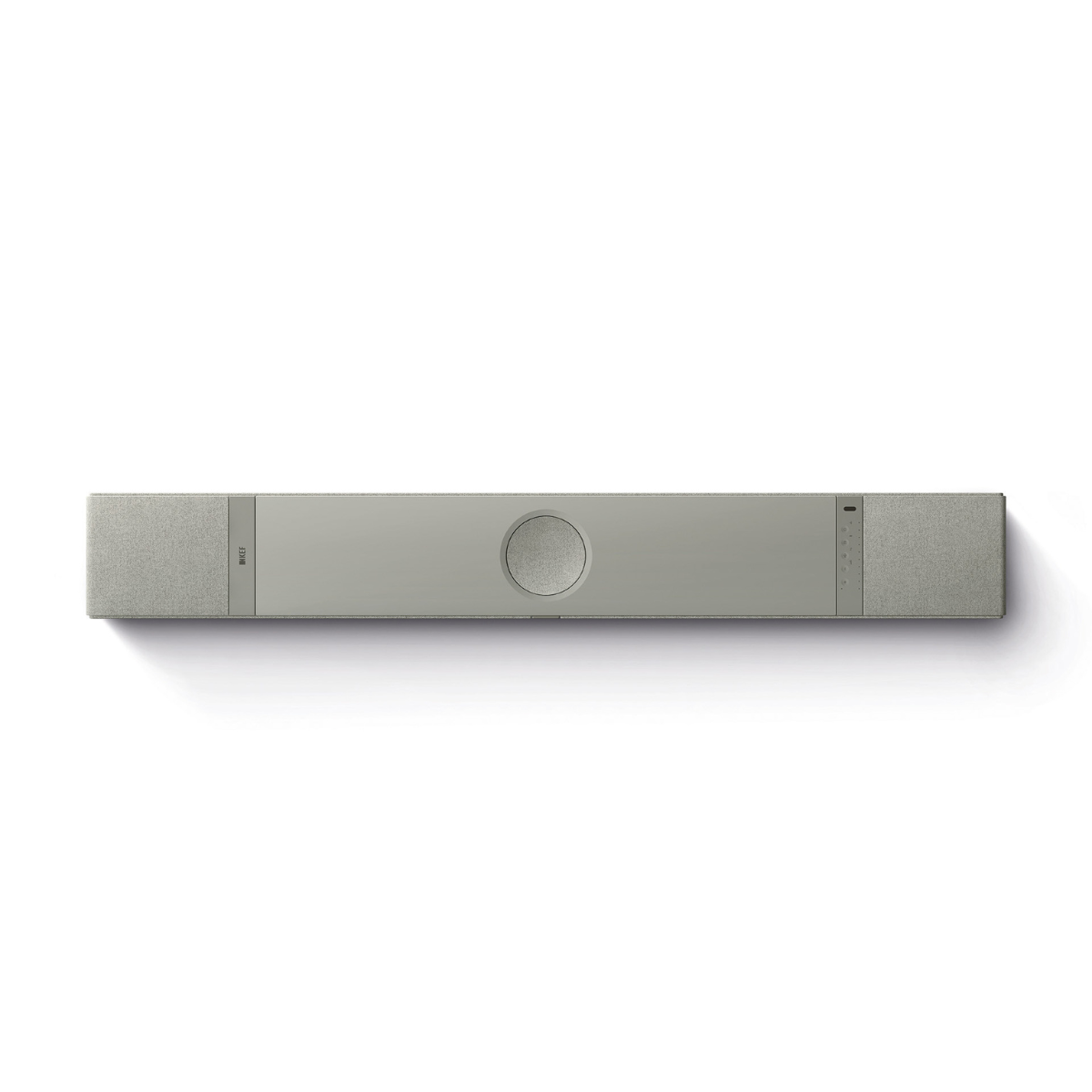

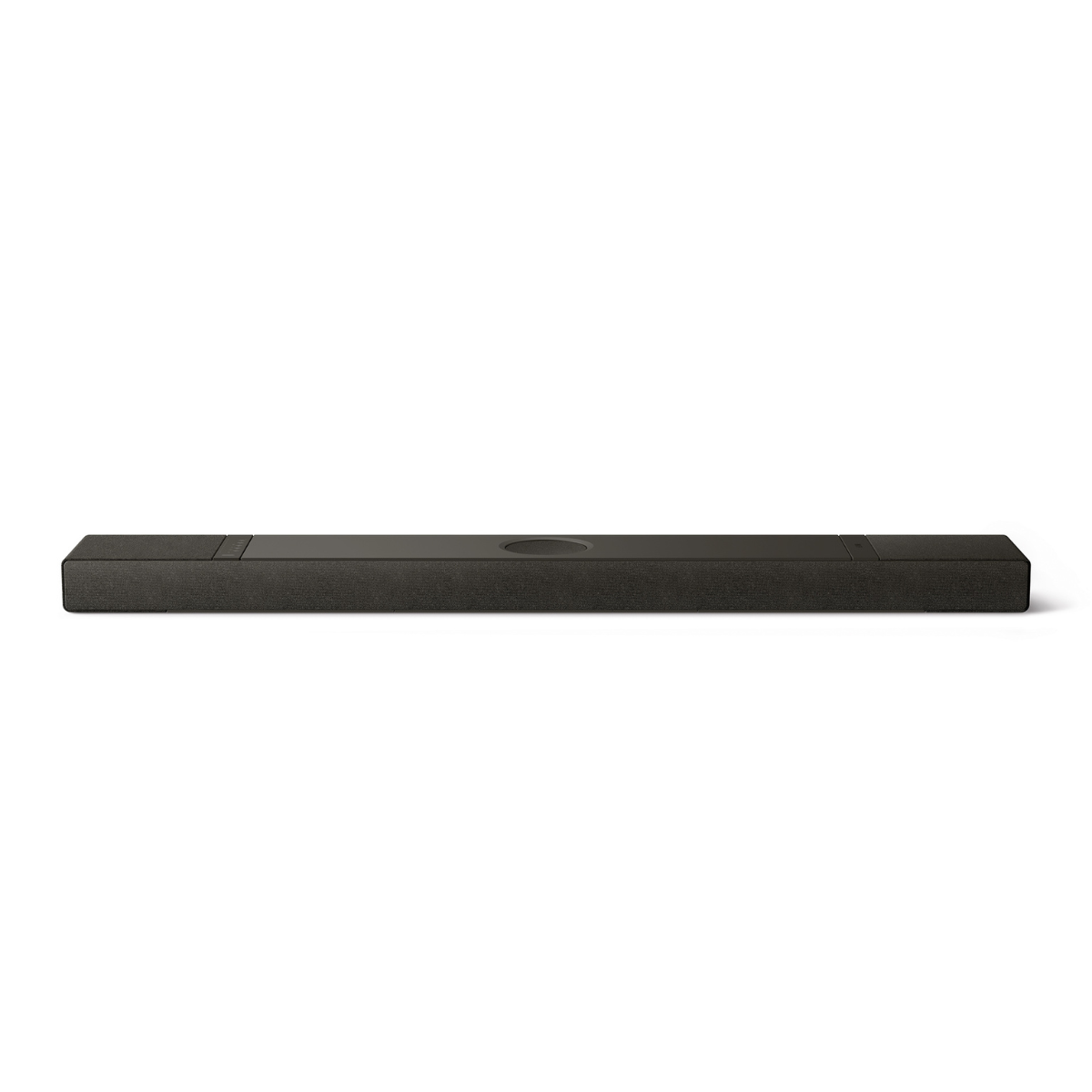

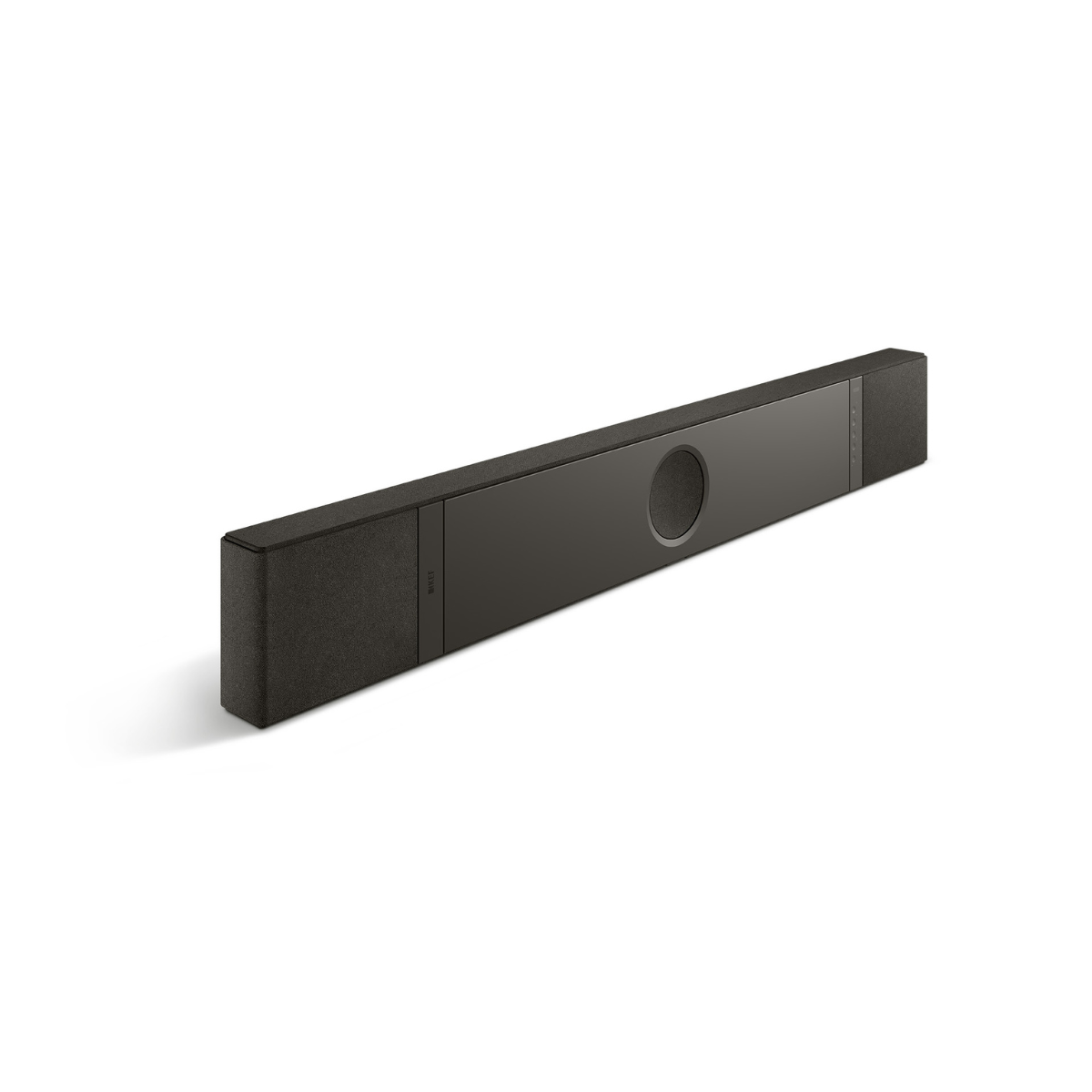

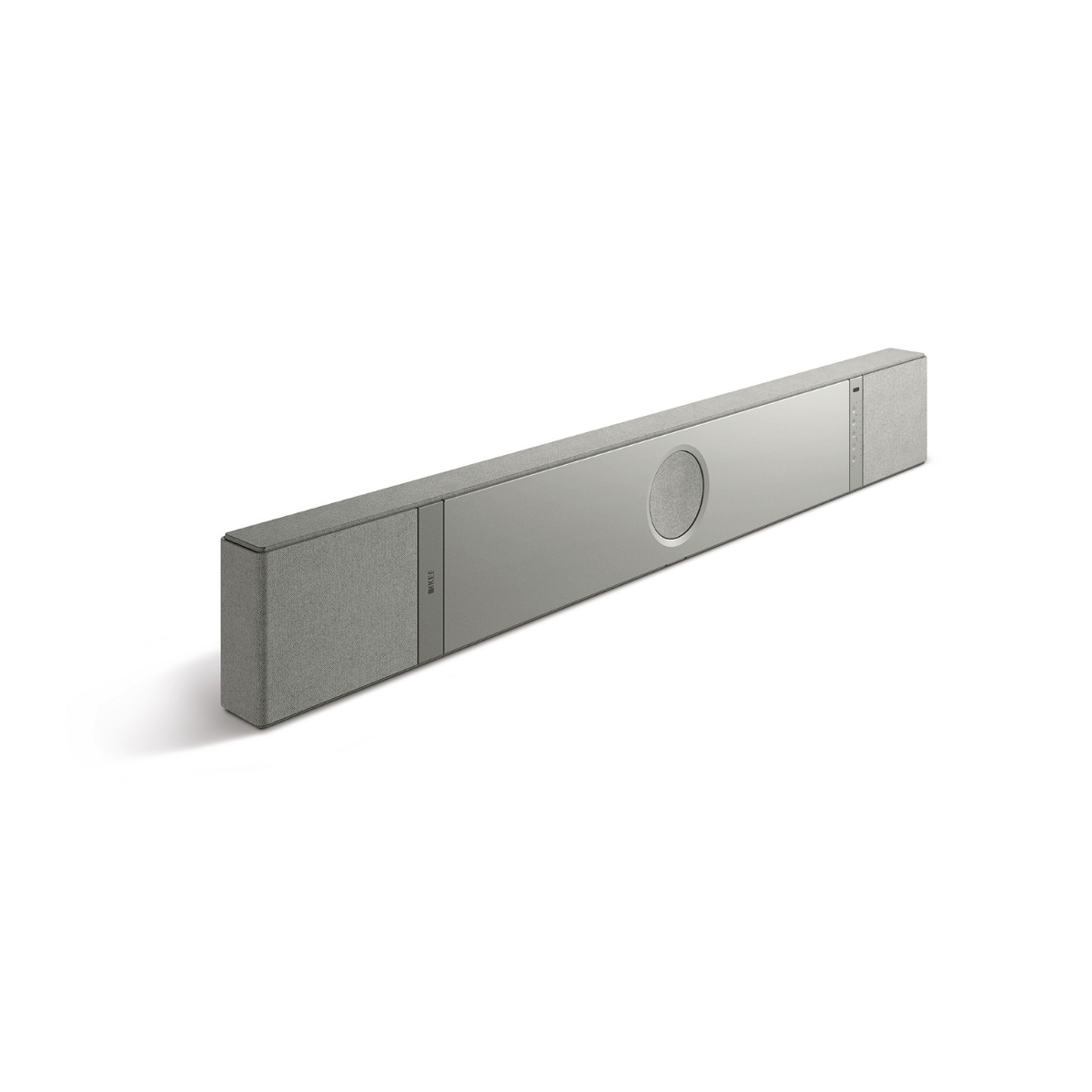

Model
XIO
Dimensions (HWD)
70 × 1210 × 165 mm (2.8 × 47.6 × 6.5 in.)
Weight
10.5kg (23.1lbs)
Drive units
HF/MF: 6 x 50 mm (2 in.) Uni-Q MX driver
HF/MF: 2 x 50 mm (2 in.) full range driver
LF: 4 pcs of 50 x 180 mm (2 x 7 in.) P185 driver supported by VECO
Amplifiers
HF/MF: 8 x Class D
LF: 4 x Class D
Max SPL
measured at 1m
102 dB
Frequency response (±3dB)
measured at 85dB/1m
34Hz - 20kHz

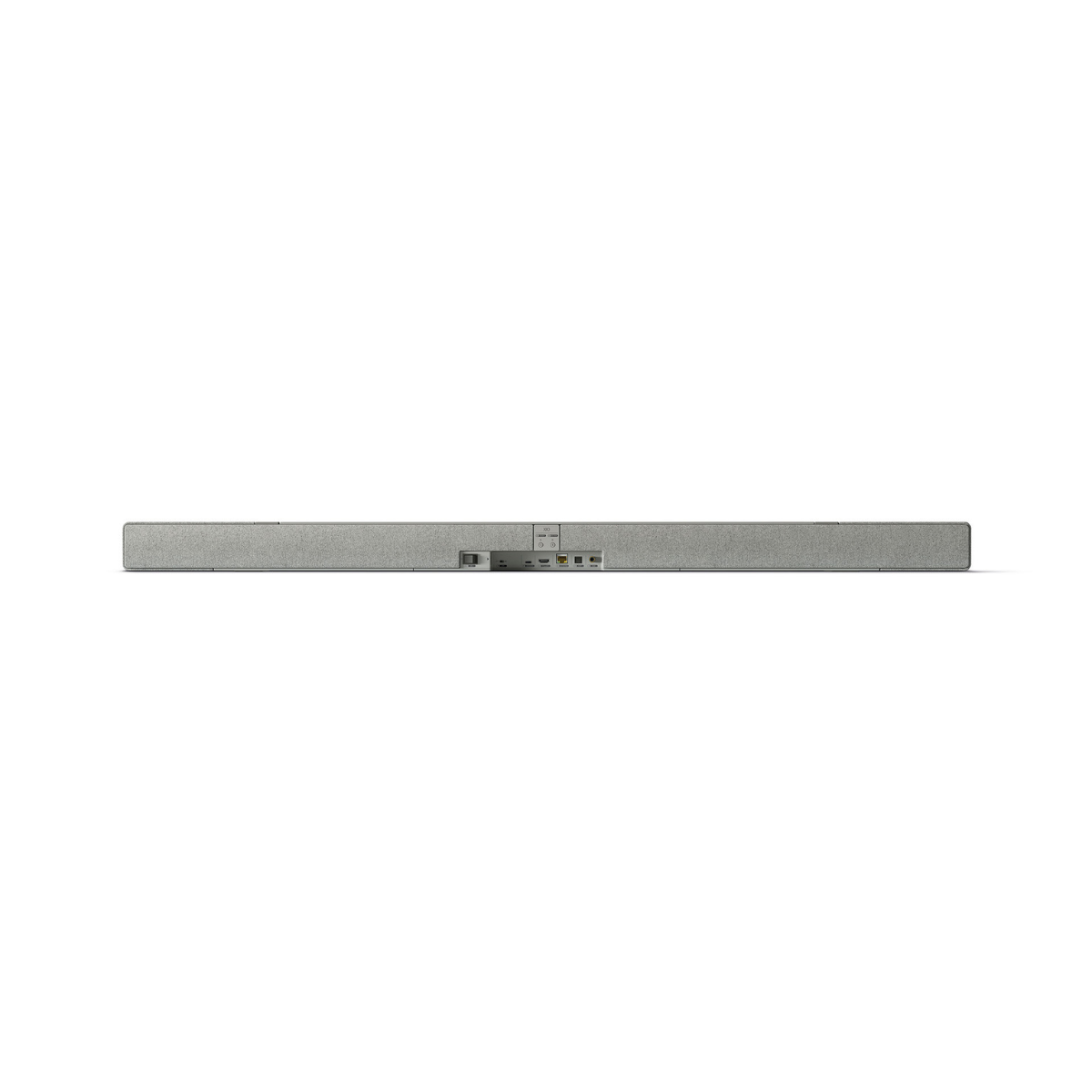

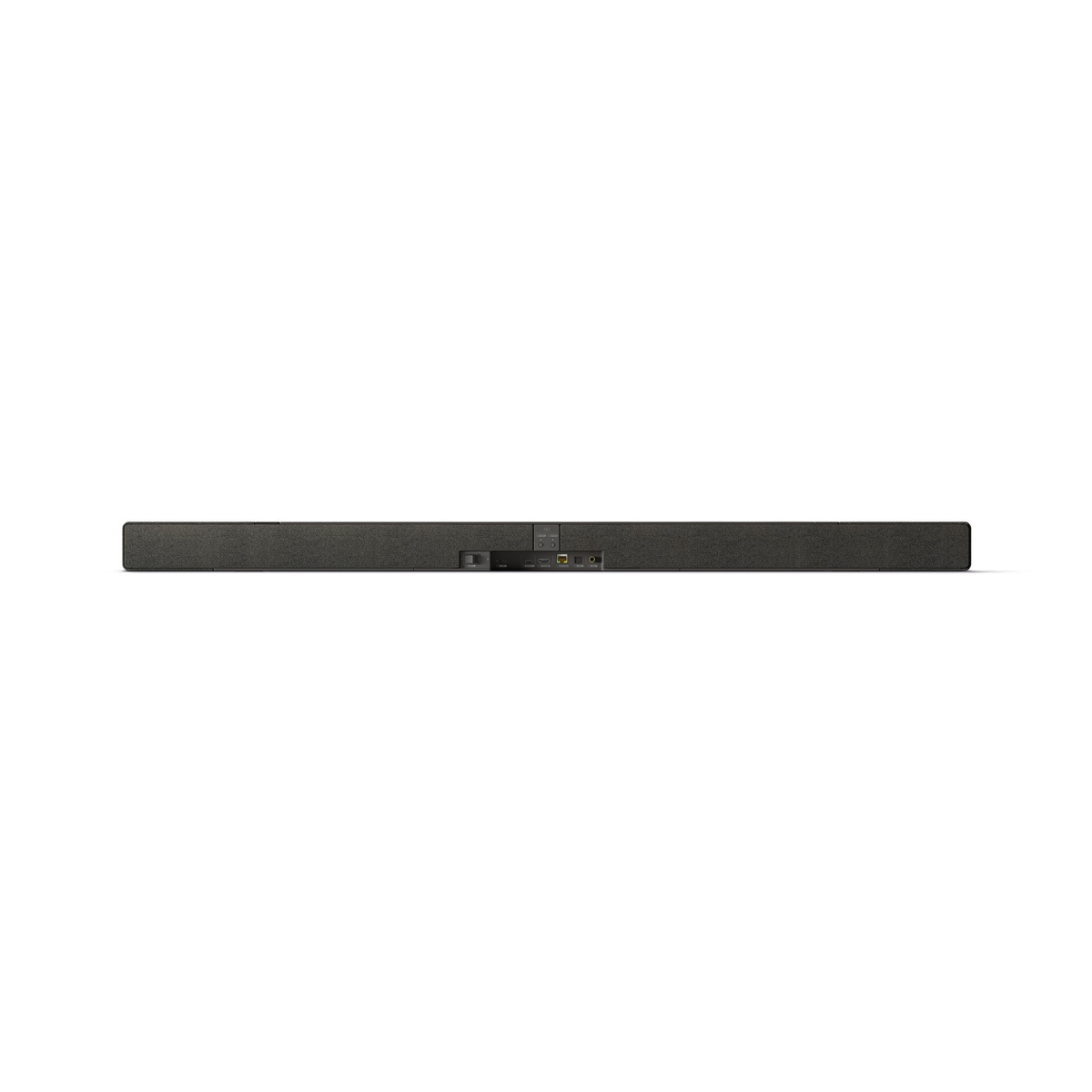

Connectivity
Input
HDMI 2.1 eARC
TOSLINK Optical
USB Type C (service)
RJ45 Ethernet (network)
Outputs
Wireless Subwoofer output
RCA Subwoofer output
Wireless connectivity
KEF Connect
AirPlay
Google Cast
UPnP Compatible
Bluetooth 5.3
Streaming services
Spotify via Spotify Connect
Tidal via Tidal Connect
QQ Music via Qplay
Amazon Music
Qobuz
Deezer
HIGH-RESAUDIO
Internet Radio
Podcast…and more
*Depends on services availability in different countries
Supported formats
Dolby Atmos, DTS:X, 360 Reality Audio, MPEG-H, FLAC, WAV, AIFF, ALAC, AAC, WMA,
MP3, M4A, LPCM and Ogg Vorbis
*Depends on support of the source device
Supported resolution
HDMI eARC up to 192 kHZ/24 bit
Network up to 384 kHz/24 bit
Optical up to 96 kHz/24 bit
*Depends on source resolution
Number of channels
Up to 5.1.2
Wi-Fi Network Frequency Band
2.4 GHz / 5 GHz / 6 GHz
Wi-Fi network standard
IEEE 802.11a/b/g/n/ac/ax
IPv4, IPv6
Power
Amplifier output power
820W (Instantaneous total power rating)
Power input
100 – 240VAC 50/60Hz
Power consumption
400W (Maximum operating power)
<2.0W (ECO mode standby power)
<0.5W (Non WiFi mode)
