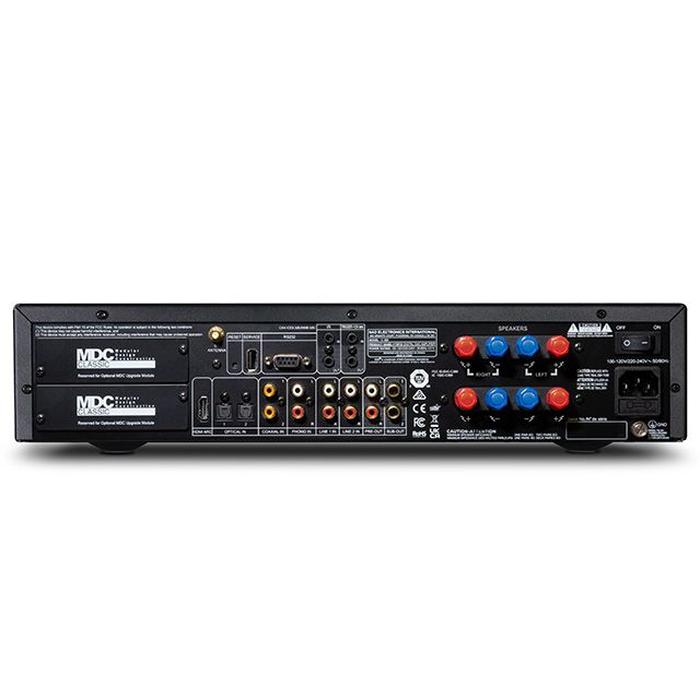

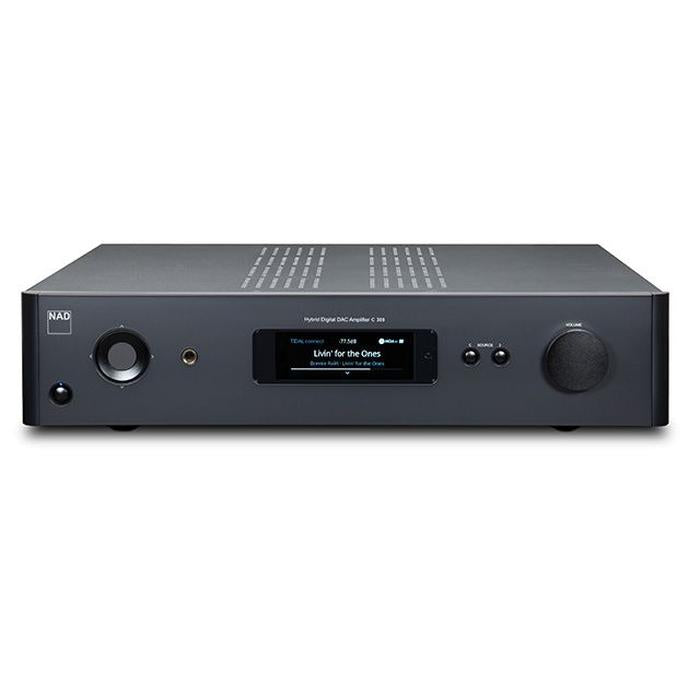

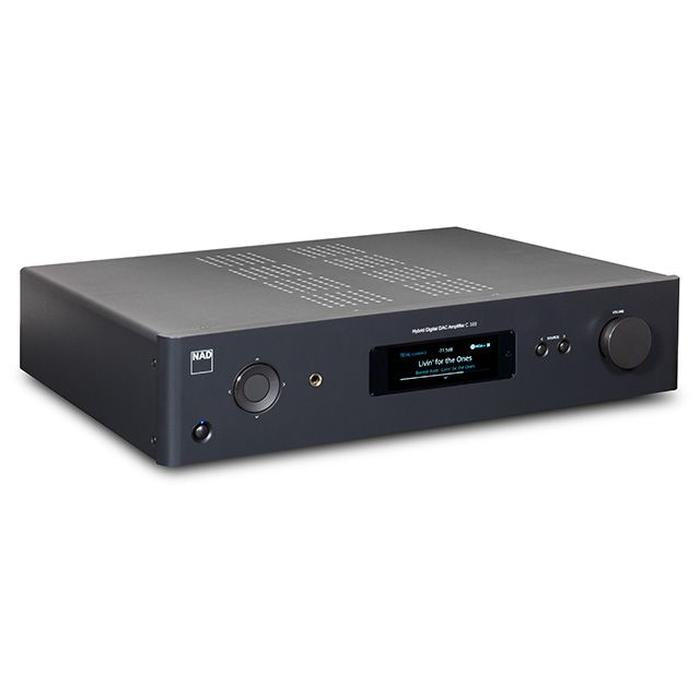

NAD C 389 Hybrid Digital DACamplifier

Name: NAD C 389 Hybrid Digital DACamplifier
Brand: NAD
SKU: 786357001890
Price: 1699.00 EUR
Availability: InStock

NADSKU:786357001890 | EAN: 786357001890 | -

The NAD C 389 Hybrid Digital DACamplifier can serve as the cornerstone of a high-quality audio system, now and for decades to come. Using NAD's proven HybridDigital UcD amplifier design and the same ESS Sabre DAC which is used in NAD's acclaimed M33 BluOS streaming amplifier, the C 389 will deliver thrilling dynamics and exquisite detail from all your sources.

Price:

€1.699,00

Including VAT

Stock:

In stock soon

Make your listening appointment here

✔Al 12 years your HiFi specialist

✔Customer review 4.9/5.0

✔Same day free shipped*

✔Emergency and evening delivery possible*

✔Experience it in our shop in Mijdrecht

(*: if in stock, within NL, BE & DE)

LINE INPUT, PRE-OUT (ANALOG BYPASS ON)

THD (20Hz - 20kHz)
<0.002 % at 2 V out
Signal to noise ratio
>106dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation
>100dB (1kHz); >90 dB (10 kHz)
Input impedance (R and C)
56 kohms + 100 pF
Maximum input signal
>4.6 Vrms (ref. 0.1% THD)
Output impedance
Source Z + 320 ohms
Input sensitivity
65mV (ref. 500 mV out, Volume maximum)
Frequency response
±0.3 dB (20 Hz - 20 kHz)
Maximum voltage output -IHF load
>>5 V (ref. 0.1% THD)

PHONO-INPUT, PRE-OUT (ANALOG BYPASS ON)

THD (20Hz - 20kHz)
<0.01% at 2 V out
Signal to noise ratio
>84dB (200 ohm source; A-weighted, ref. 500 mV out)
Input sensitivity
46 kohms/100 pF
Frequency response
±0.3 dB (20 Hz - 20 kHz)
Maximum input signal at 1kHz
>80 mVrms (ref. 0.1% THD)

LINE INPUT, HEADPHONES OUT (ANALOG BYPASS ON)

THD (20Hz - 20kHz)
<0.005% at 1V out
Signal to noise ratio
>107 dB (32 ohm loads; A-WTD, ref. 1V out, unity gain
Frequency response
±0.3 dB (20 Hz - 20 kHz)
Channel separation
>62 dB at 1kHz
Output impedance
2.2 ohms

LINE INPUT, SPEAKER OUT (ANALOG BYPASS ON)

Continuous output power into 8 ohms and 4 ohms
2 x 130W
THD (20Hz - 20kHz)
<0.02% (250 mW to 130 W, 8 ohms and 4 ohms)
Signal to noise ratio
>95 dB (A-weighted, 500 mV input, ref. 1 W out into 8 ohms)
Cutting power
150W
IHF dynamic power
210W at 8 ohms
300W at 4 ohms
350W at 2 ohms
Peak output current
>26A (into 1 ohm, 1 ms)
Damping factor
>150 (ref. 8 ohms, 20Hz to 6.5kHz)
Frequency response
>±0.3 dB (20 Hz - 20 kHz)
Channel separation
>90dB (1kHz)
>75dB (10kHz)
Input sensitivity (for 130 W into 8 ohms)
Line input: 201 mV, Digital In: 10.25% FS

GENERAL SPECIFICATIONS

Supports bit rate/sample rate
up to 32 bit/384 kHz
Frequency band
2.402 GHz - 2.480 GHz
Maximum transmission power (dBm)
7 dBm ± 2 dBm

DIMENSIONS AND WEIGHT

Gross dimensions (W x H x D)
435 x 100 x 390 mm (17.1 x 3.9 x 15.4")
Net Weight
8.7kg (19.1lb)
Shipping weight
~11kg (24.2lb)
