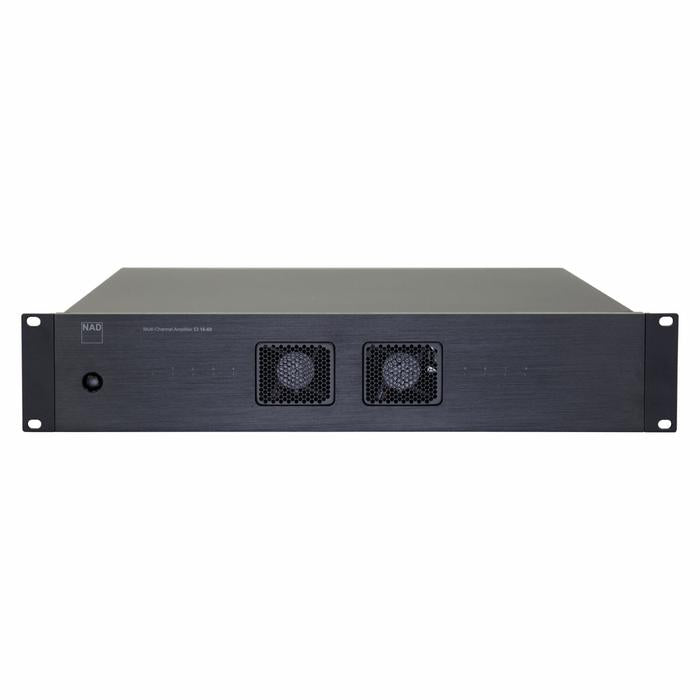

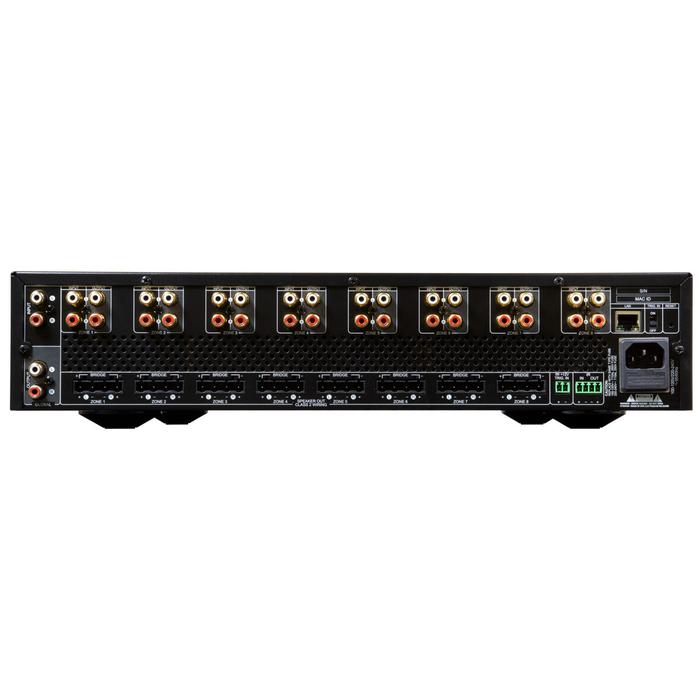

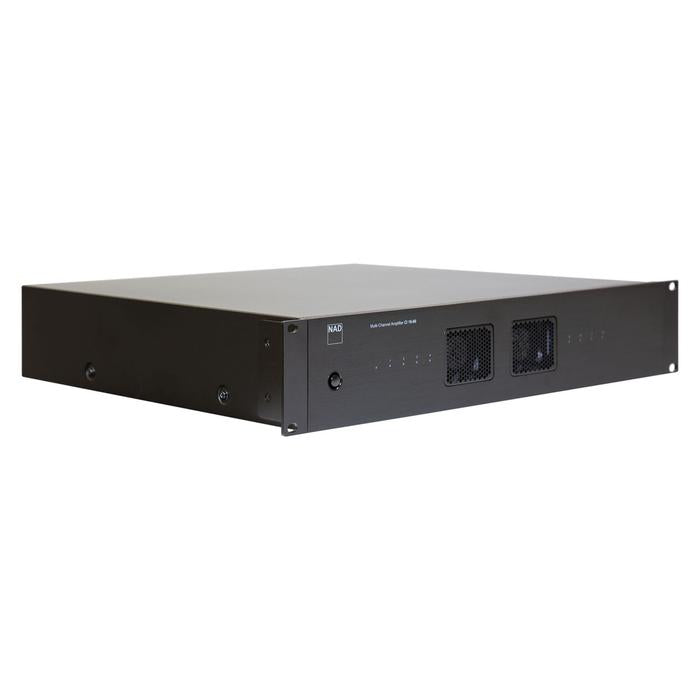

NAD CI 16-60 DSP

Name: NAD CI 16-60 DSP
Brand: NAD
SKU: 786357001401
Price: 2899.00 EUR
Availability: InStock

NADSKU: 786357001401 | EAN: 786357001401 | -

The NAD CI-16-60 DSP puts legendary high performance at the heart of this 16-channel/8-zone amplifier. Promising reliability, stability and a variety of installation-friendly features, the CI16-60 is a versatile and economical smart distribution amplifier with audiophile performance for high-quality audio.

Price:

€2.899,00

Tax included

Stock:

Re-stocking soon

Make your listening appointment here

✔Al 9 years your HiFi specialist

✔Customer review 4.9/5.0

✔Same day free shipped*

✔Emergency and evening delivery possible*

✔Experience it in our shop in Mijdrecht

(*: if in stock)

GENERAL

Continuous output power up to 8 ohms
60W (all channels driven, 1kHz 0.05% THD
65W (two channels driven, 1kHz 0.05% THD)
into 4 ohms
65W (all channels driven, 1kHz 0.05% THD
105W (two channels driven, 1kHz 0.05% THD)
Continuous output power into 8 ohms in Bridged mode
140W (all channels powered, 1kHz 0.05% THD
240W (two channels driven, 1kHz 0.05% THD)
THD (1W to 50W, 8 ohms and 4 ohms)
0.05% (20Hz - 3kHz)
0.2% (3kHz - 20kHz)
Signal to noise ratio
80 dB (A-weighted, 500 mV input, ref. 1 W out into 8 ohms)
Squeezing power (all channels driven)
60W (1kHz 8 ohms 1% THD)
80 W (1 kHz 4 ohm 1 % THD)
Clamping force in 8 ohms in Bridged mode
150W (1kHz 1% THD - all channels powered)
250 W (1 kHz 1% THD - two channels driven)
IHF Dynamic Power (all channels driven)
8 ohms: 65 W
4 ohms: 125 W
IHF Dynamic Power (two channels driven)
8 ohms: 70 W
4 ohms: 125 W
IHF dynamic power (Bridged mode, all channels driven)
8 ohms: 270 W
IHF Dynamic Power (two channels driven)
8 ohms: 280 W
Peak output current
15 A (1 ohm, 1 ms)
Damping factor
110 (20 Hz to 1 kHz 8 ohms)
Frequency response
±1dB (20Hz - 20kHz)
Channel separation
60 dB (1 kHz)
55 dB (10 kHz)
Maximum undistorted input level
2900mV
Input sensitivity (for 50 W into 8 ohms, maximum volume)
760mV
Input impedance
20kohms//220pF
Analog input audio threshold (one channel with signal)
3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level
3 - 30 Vdc
Standby power
0.5W

SIZE AND WEIGHT

Gross dimensions (W x H x D)*
483x100x435mm
19 1/16 x 3 15/16 x 17 3/16 inches
Net Weight
10.3kg (22.7lbs)
Shipping weight
12.8kg (28.2lbs)
