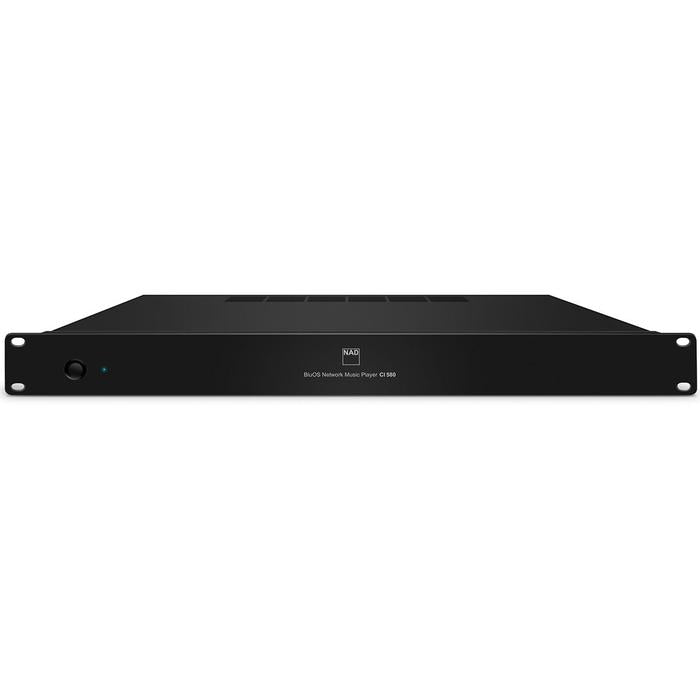

NAD CI 580 V2

• 4 Stereo zone source component
• Fixed or variable line output
• 1U rack chassis
• 1 Ethernet connection for all zones
• ethernet
• USB input
• Uses standard network protocols
• Universal voltage (100 ~ 240)

• Supported File Formats
• MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA
• Supported cloud services
• WiMP, Slacker Radio, Qobuz, HighResAudio, JUKE, Deezer, Murfie, HDTracks, Spotify, TIDAL, Napster, Microsoft Groove (with OneDrive), Classics Online, KKBox.
• Supported operating systems
• Microsoft Windows 7 SP1 or later, Apple Macintosh OSX 10.7.5 or later
• Free internet radio
• TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
• Integration partners
• Control 4, RTI, Crestron, URC, Lutron, PUSH, iPort, ELAN

• Nominal distortion
• ≤0.005%
• Signal to noise ratio
• 110dB
• Sample rate
• 32 - 192kHz
• Bit Depth
• 16 – 24

Import

• Analog
• RCA Stereo
• SPDIF
• Optical (TOSLINK)
• USB
• Type A (for USB memory stick and supported peripherals - FAT 32 formatted)
  Type B (for computer audiointerface)
• +12V Trigger IN
• 12V ±20%
• IR input
• 3.5mm jack
• System interruption
• For doorbell/alarms

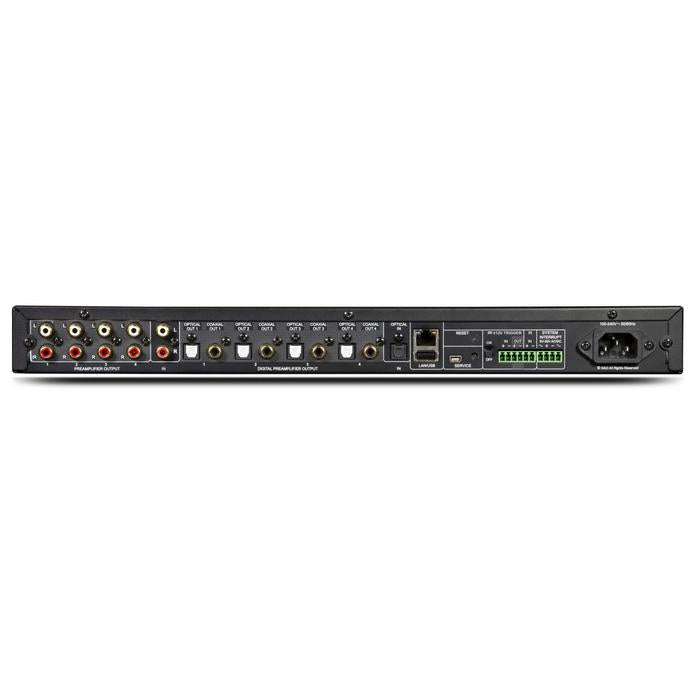

Exit

• Analog
• RCA Stereo x4
• SPDIF
• Optical x 4 (TOSLINK)
  Coaxial x 4
• +12V Trigger OUT
• 12V ±20%

Network

• Ethernet/LAN
• Ethernet RJ45, GigE

User interface

• FREE Android and iOS app available on GooglePlay and Apple App Store

• AC power supply
• 100-240V 50/60Hz
• Reserve force
• 6W (Network Standby Mode)
• Dimensions (W x H x D)
• 480 x 46 x 234mm (18 7/8 x 1 13/16 x 9 1/4")*
• Net Weight
• 2.7kg (5.9lb)
• Shipping weight
• 3.8kg (8.4lb)
