- THD + N (20 Hz - 20 kHz): <0.03% 20-20 KHz -1dbfs output
- Signal-noise ratio: -94db (ref 2v)
- Frequency response:20-20 kHz +/- 0.3db; 50 KHz -3DB
- Native sampling frequency: Until 192 KHz
- Bit depth: 16-24
- Supported audio file format: LPCM, MP3, AC3, OGG VORBIS, HE-AAC, MQA & WMA de Coderability
- Supported service provider of third parties: Spotify Connect, Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon ...
- DAC: Ti PCM5254
- Processor: Arm® Cortex ™ -A53, quad -core, 1.5 GHz per core.

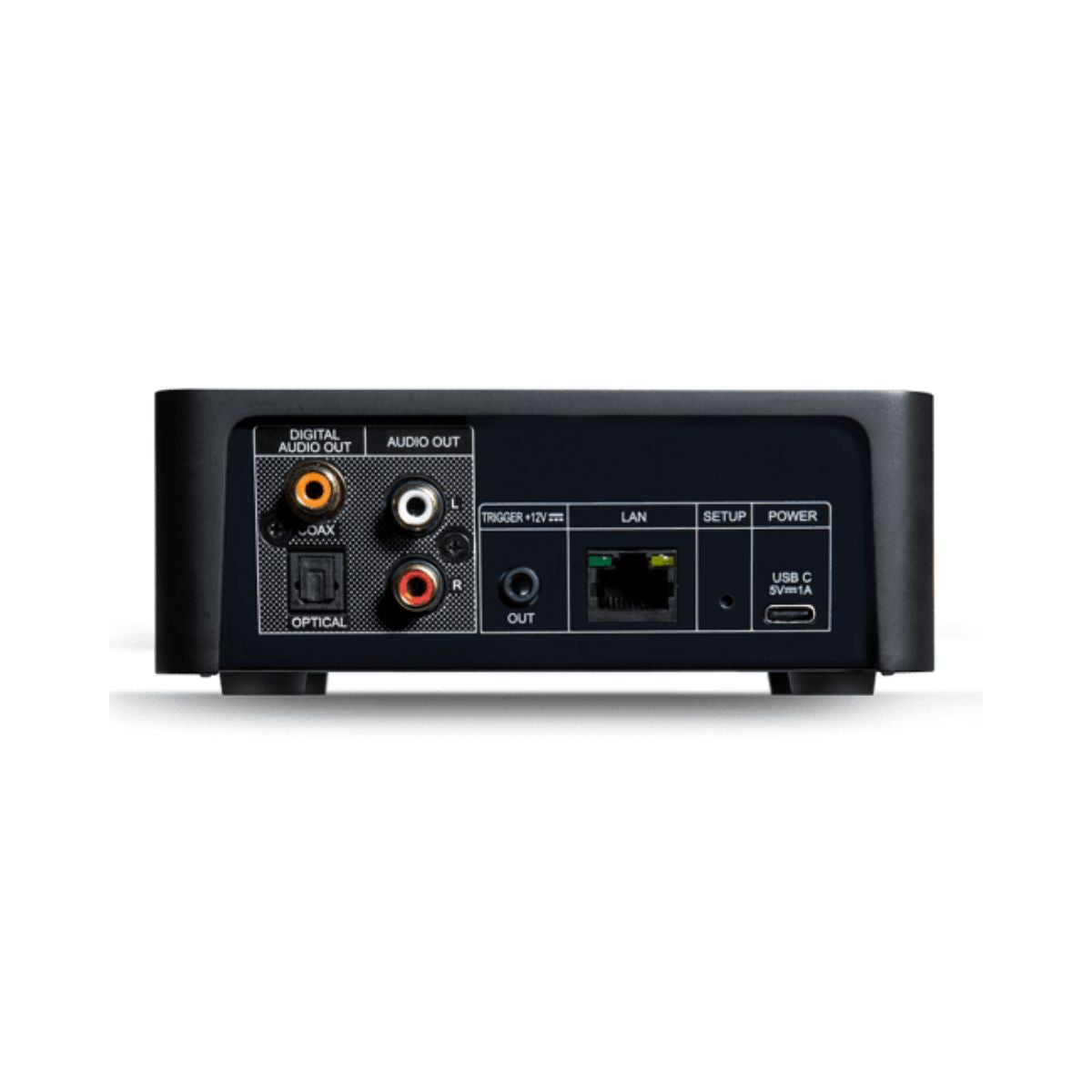

Connections
- Assets: AC Adapter Input: 100-240V AC 0.3A, output: 5V DC 1A
- Network connection: Ethernet RJ45 100 Mbps. Wi-Fi 5 (802.11AC 2.4GHz/5 GHz). DLNA/UPNP*
- Bluetooth: Bluetooth 5.0. BT profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
- NFC: NFC for simple Bluetooth connection
- 12V Trigger Out: 3.5 mm Mini-Jack x 1
- Analog output: RCA X 1
- Coaxial output: RCA 75 Ohm
- Optical from: Toslink x 1
- USB in: USB C for AC adapter
* Certification in implementation on publication date
Generally
- Status indicator: Front panel LED
- Function button: Function button on the front panel
- Power consumption: 5W Network standby
- Finish with: Black
MEASUREMENTS AND WEIGHT
- Gross Dimensions (B x H x D) **: 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)
- Net weight: 1.5 kg.
- Shipping weight: 1.7 kg.
** The gross tomato includes feet and other extended connections on the front and rear panel.
