Specifications
Type
Streamer amplifier
Number of channels
Line: 4
Amplifier: 2
Power (low impedance)
8Ω: 150W
4Ω: 260W
Input connections
Analog – stereo RCA – (47kΩ / 2.5V RMS)
S/PDIF – up to 96kHz / 24bit
HDMI eARC – LPCM up to 192kHz / 24bit stereo

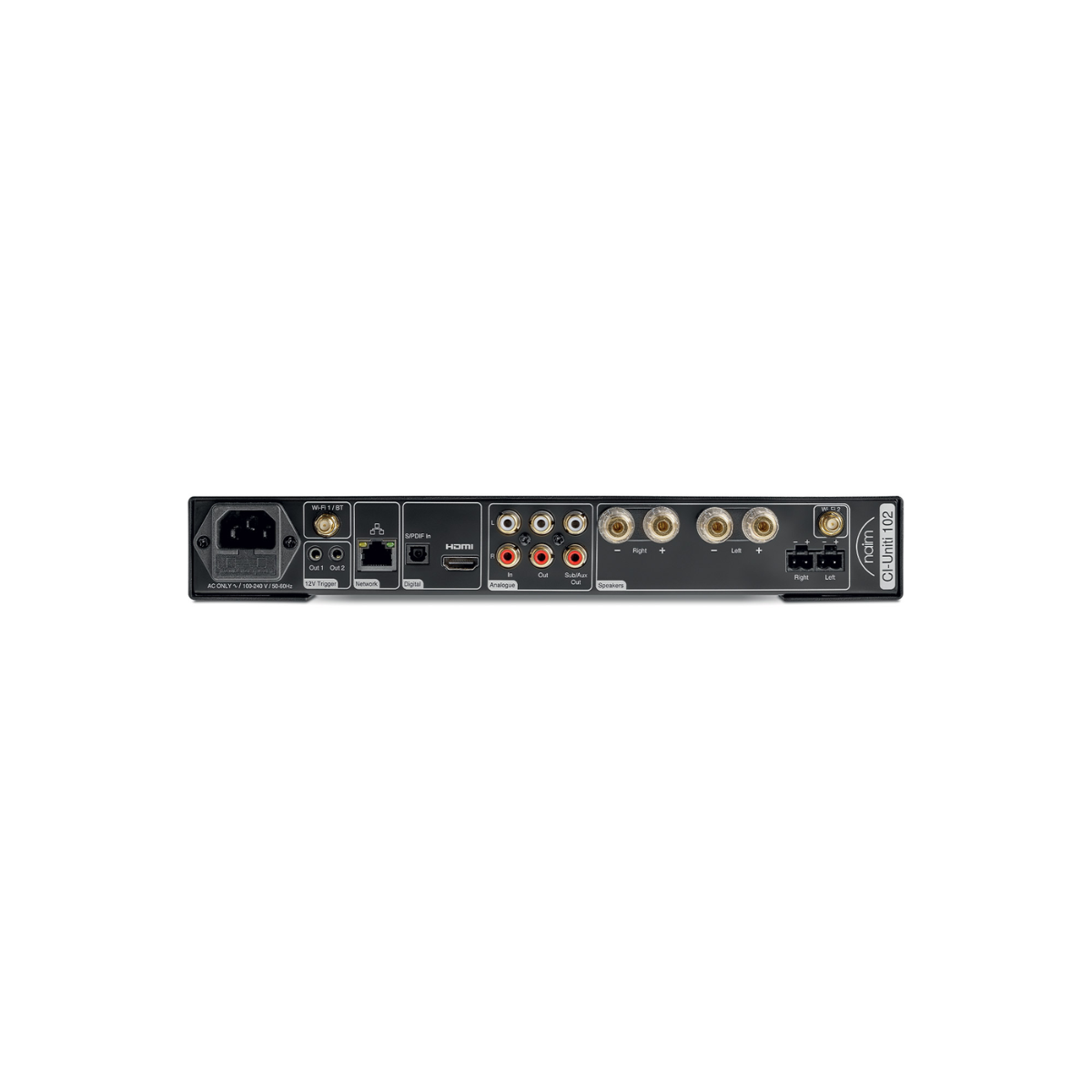

Output connections
Main: 1x stereo RCA
Reinforced: terminal block / Euroblock / banana plug – 4mm
Sub/Aux: 1x stereo RCA
Compatible streaming services
TIDAL
TIDAL Connect
Spotify Connect – support for Free + Premium
Qobuz
UPnP with playlist
Internet radio + podcasts
AirPlay2
Chromecast v2
Dante receiver – 48kHz supported
Bluetooth Classic Audio Receiver – SBC + AAC supported
User interface
Focal & Naim App – basic controls
Focal & Naim Manager – configuration
Compatible operating systems
iOS and Android for Focal & Naim App
Windows, macOS for Focal & Naim Manager
Multiroom
Naim Multiroom – up to 32 devices in one session
Compatible with all generations of Naim streamers
Integration partners
Control4, Crestron, EAN, Savan
Wired automation
2 x 3.5mm mono jack connections – 12V trigger outputs
Network
RJ45 Gigabit Ethernet – compatible with IPv4 and IPv6
802.11ax (Wi-Fi 6) – 2x2 MIMO – external antenna
Bluetooth® LE 5.1 – external antenna shared with Wi-Fi
Total Harmonic Distortion (THD+N @1kHz)
< 0,006%
Amplification (gain)
29dB
Signal to noise ratio
110dB (A-weighted)
Frequency response (-3dB)
5Hz – 70kHz
Maximum sample rate
32bit / 384kHz
Nutrition
100V to 240V ±10%, 50/60Hz

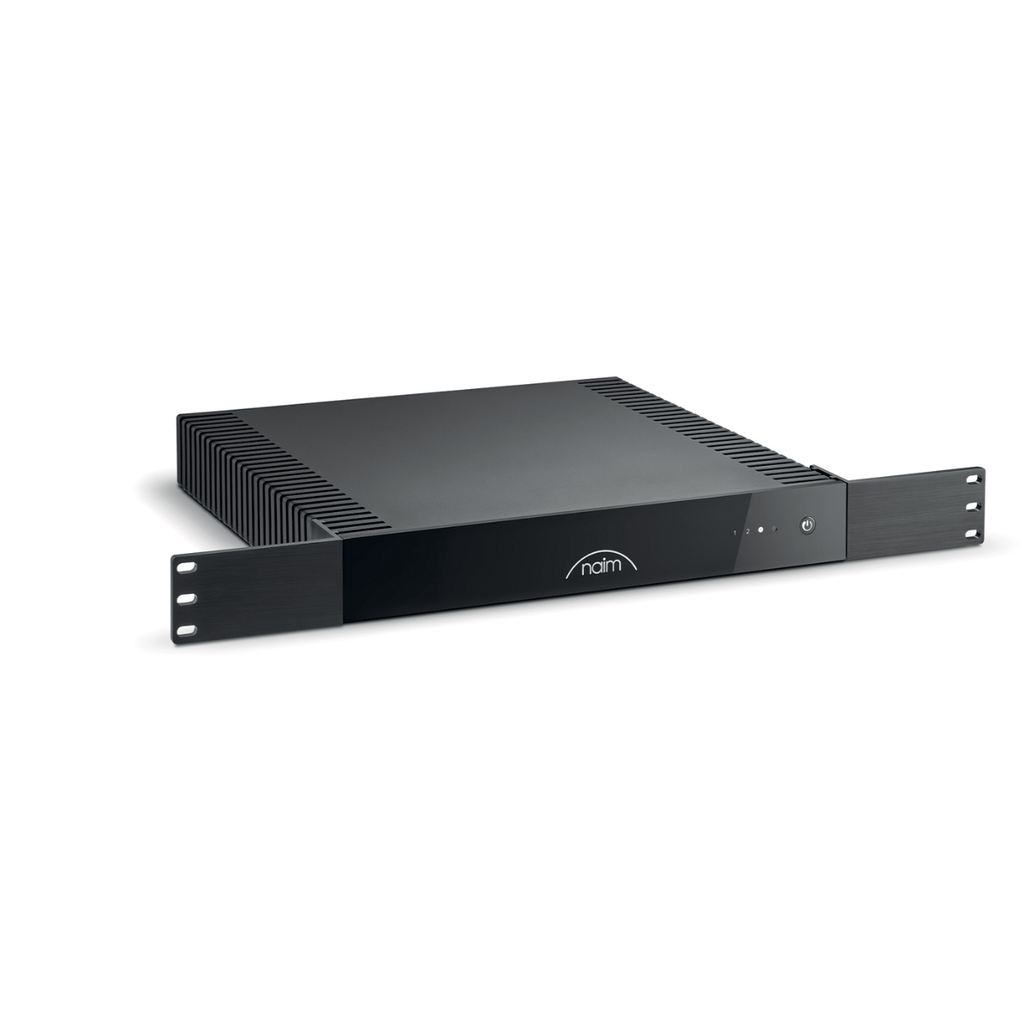

Rack height
1H
Heat release
120 BTU/hour
Idle: 70 BTU/hour
Standby: 1.7 BTU/hour
Dimensions (HxWxD)
4.45 x 30 x 30 cm
Weight
4.5kg
Nominal power consumption
70W
Maximum power consumption
1000W
Power consumption in standby
0.5W
Operating temperature
5°C to 35°C
Storage temperature
-20°C to 60°C
