Amplifiers
Nine D-class digital amplifiers, tailored to the acoustic architecture of the soundbar.
Tweeters
Five tweeters faithfully reproduce high and mid frequencies. The forward-facing center tweeter provides a smooth center image. Two side-firing, horn-loaded mid-tweeters provide stereo separation. Two upward-facing tweeters in a directional horn support spatial sound audio with Dolby Atmos.
Woofers
Four low-profile woofers deliver powerful bass.
Microphones
Far field microphones use beamforming and multi-channel echo cancellation for voice control, Trueplay tuning and connecting Sonos Play or Move 2 as surrounds. Set the microphone button to 'off' to disconnect.
Adjustable EQ
Adjust the bass, treble and loudness with the Sonos app.
Trueplay
Measures the acoustics of the room and fine-tunes the EQ. Compatible with iOS and Android devices.
AI speech enhancement
AI detects human voices to improve dialogue clarity. Choose from four levels of Speech Enhancement in the Sonos app.
Night noise
Reduces the intensity of loud sounds and amplifies softer sounds. Turn on via the Sonos app.
Home theater audio formats
Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.**
The Now Playing screen of the Sonos app displays the audio format being decoded.
*HDMI eARC connection required.
**This is not an indication of a licensed decoder.
Dolby Atmos Music
Specially designed upward-firing drivers support Dolby Atmos Music for spatial audio reproduction.
TV Audio Swap
Switch the TV sound between soundbar and Sonos headphones.
Simulated overhead sound
Optimizes overhead sound effects for when the top of the product is blocked. Select your configuration in the Sonos app.

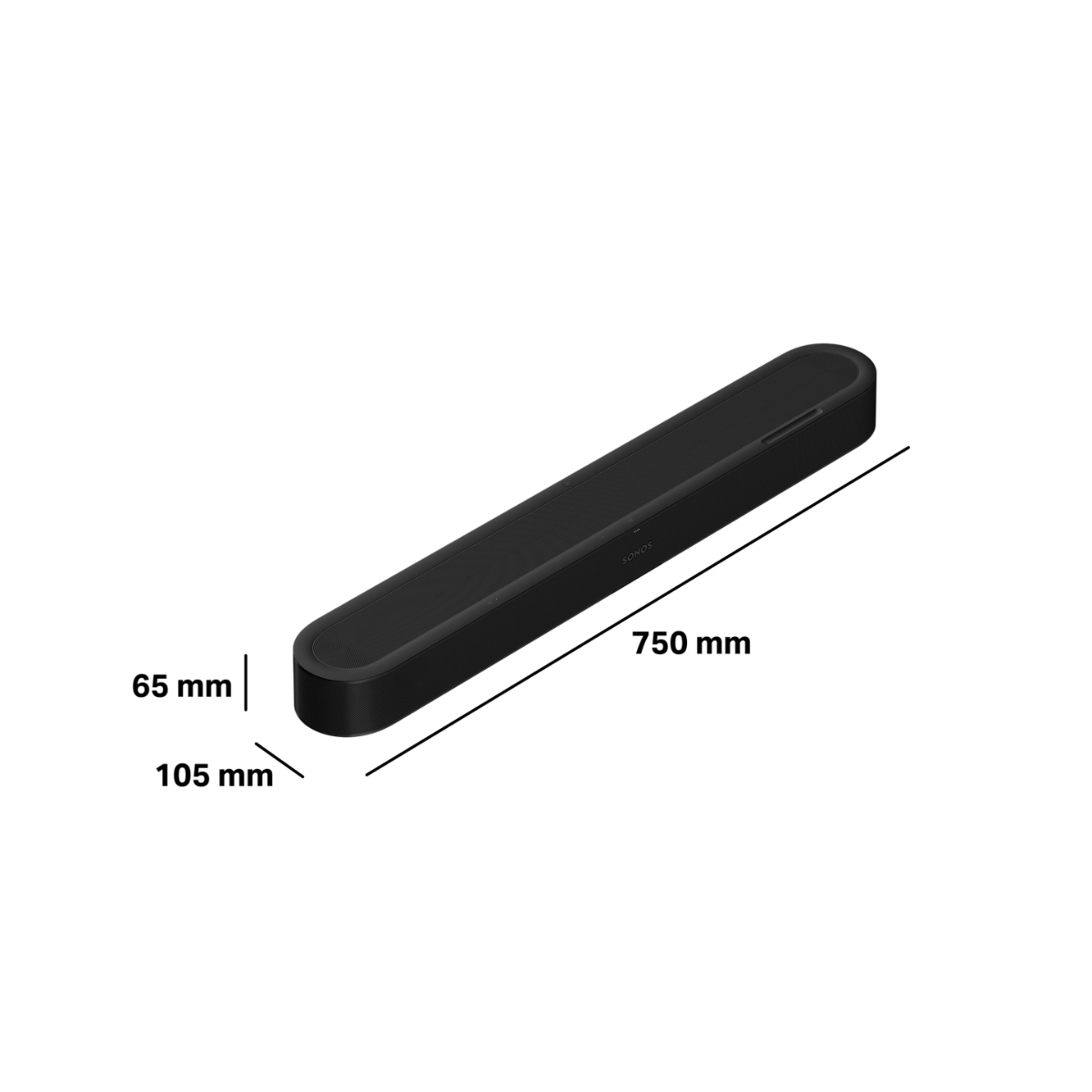

Dimensions
Height: 65mm
Width: 750mm
Depth: 105mm
Confirmation
M5 x 0.8 mm thread L 6.5 mm
LED lights
Lights on the product indicate connection, microphone activity and mute.
Touch
Use capacitive touch controls to play, pause, skip, replay, adjust volume, disable voice assistant, and group or ungroup Sonos products.
Bluetooth button
Press to pair a Bluetooth device.
Microphone switch
Turn off the switch on the back of the product to disconnect power to the microphones.
Wireless network interface
Wi-Fi Compatible 6. Connect to Wi-Fi with any 2.4 GHz or 5 GHz 802.11a/b/g/n/ac/ax router.
More information
HDMI eARC
Connect to your TV's HDMI eARC/ARC port with the included HDMI cable. Optical adapter available separately.
Bluetooth
Bluetooth 5.3 supports audio streaming from Bluetooth enabled devices.
Tension
100-240 V 50/60 Hz internal power supply
Vote
Works with Sonos Voice Control.
Apple AirPlay 2
Works with AirPlay 2 on Apple devices running iOS 11.4 or later.
More information
TV compatibility
Not compatible with TVs with CCFL lighting (manufactured between 2004 and 2012)
Documentation
Installation guide and legal/warranty information
Power source
Electrical socket nearby
Sonos app
The latest generation of the Sonos app on a compatible device
