Sonos Surround set with Beam

Specifications

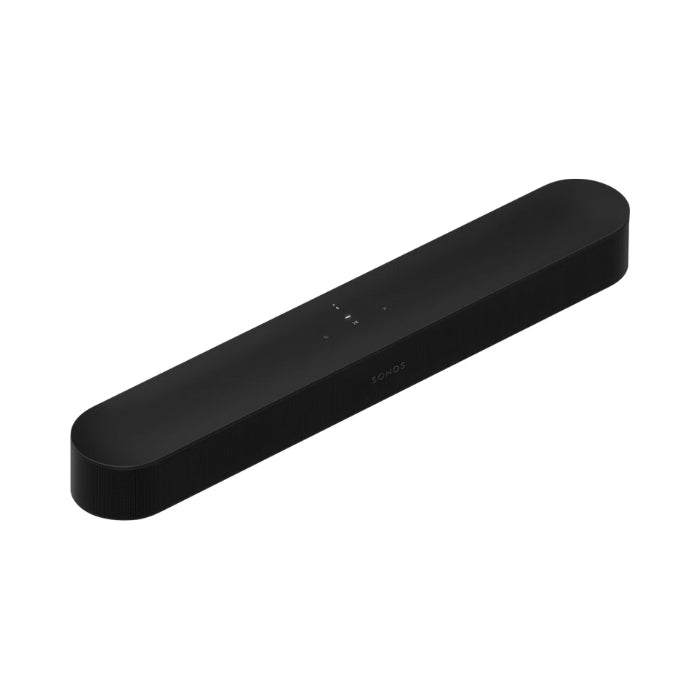

Sonos Beam (Gen 2)

Sound

• Drivers & amplification: The Beam has woofers and tweeters that produce powerful and clear sound, with Dolby Atmos return channels for object-based audio to project upwards.

• Amplifier configuration: Five digital Class D amplifiers (four for woofers, one for tweeter), matched to the acoustics for optimal performance.

• Dolby Atmos: Support for Dolby Atmos for an immersive, three-dimensional surround experience with compatible content.

Dimensions & weight

• Dimensions (H × W × D): 651 × 100 × 68 mm.

• Weight: Approx. 2.88 kg.

Mains power & temperature

• Power supply: Auto-switching 100 – 240 V ~ 50-60 Hz, 1 A AC universal input.

• Operating temperature: 0°C – 40°C (32°F – 104°F).

• Storage temperature: −20 °C – 70 °C (−4 °F – 158 °F).

• Colors: White with White grille, black with black grille.

Connection & inputs/outputs

• HDMI ARC/eARC: One HDMI-ARC port for TV connection, with eARC support for unlimited bandwidth.

• Optical audio adapter: Includes adapter to connect older TVs via optical audio to connect.

• WiFi: 802.11a/b/g/n (2.4 GHz and 5 GHz) for network connectivity.

• Ethernet port: One 10/100 Mbps Ethernet port for wired connection.

• Bluetooth: Bluetooth Low Energy (BLE) for initial setup; Bluetoothaudio is turned off as soon as surround speakers (Era 100) are linked.

Functionalities

• Trueplay™ tuning: Automatic calibration of the EQ to room specifications via microphone measurement, compatible with iOS and Android.

• Voice control: Support for Amazon Alexa, Google Assistant (in regions where available), and Sonos Voice Control.

• Adjustable EQ: Adjust bass, treble and loudness via the Sonos app.

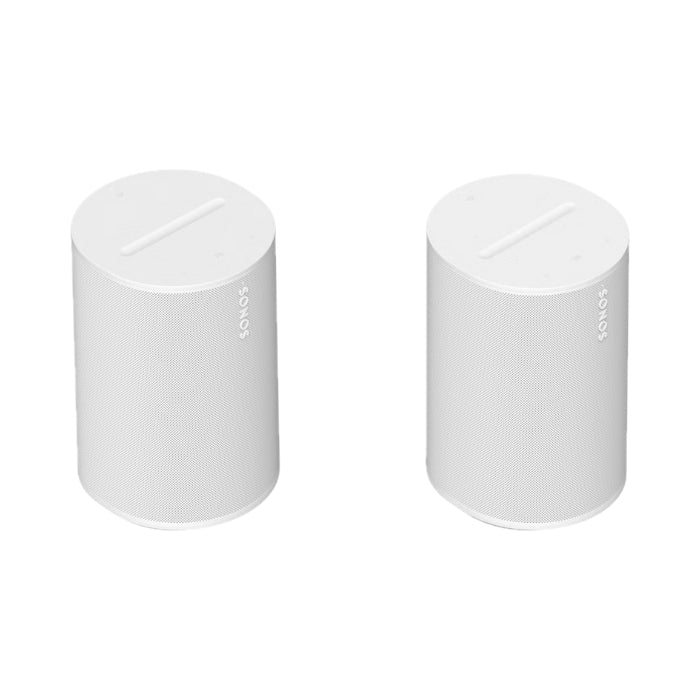

Sonos Era 100

Sound

• Amplifiers: Three D-class digital amplifiers, each tuned to specific drivers for accurate reproduction.

• Tweeters: Two directional tweeters for crystal clear highs and precise stereo separation.

• Woofer: One mid-woofer for faithful mid-range reproduction and deep, rich bass.

• Stereo pair: Two Era 100-speakers can be combined into a stereo pair for a wider, deeper soundstage.

• Home Cinema: Can function as surround speakers when connected to a Sonossoundbar for a true surround experience.

• Microphones: Far-field microphone array; all microphones, including those for voice assistance, can be turned off with a physical microphone switch on the back.

• Voice control: Supports Amazon Alexa and Sonos Voice Control; a microphone LED light displays privacy status.

• Adjustable EQ: Adjust bass, treble and loudness via the Sonos app.

• Trueplay™: Calibrates the EQ to room specifications using an iOS or Android device; the microphone switch must be turned on for calibration.

Dimensions & weight

• Dimensions (H × W × D): 182 × 120 × 131 mm.

• Weight: Approx. 1.3 kg.

• Housing: Compact, suitable for placement on a bookshelf, on the wall or on a tripod.

• Colors: Black, White.

Power supply & connection

• Power supply: Auto-switching 100 – 240 V ~ 50/60 Hz, 1 A AC universal input.

• WiFi: 802.11a/b/g/n/ac/ax router (2.4 GHz and 5 GHz) via the Sonos S2 app.

• Bluetooth: Bluetooth 5.3 front audio-streaming from smartphone or tablet.

• USB-C port: One front USB-C port audio-line-in (with Line-In Adapter).

• Ethernet: No built-in Ethernet port (Wi-Fi – only).

Contents of the box

• Sonos Era 100 Speaker (x2)

• Power cord (x2)

• Quick start guide (x2)

• Microphone switch integrated into the device.

Requirements

• Sonos app: Requires the Sonos S2 app for setup and EQ adjustments (iOS or Android).

• Streaming services: Support Sonos Radio, Amazon Music, Apple Music, Spotify, Pandora and other services via Wi-Fi.

• When used as surround speakers: Bluetoothaudio is disabled when paired with a Sonossoundbar.
