Record player
|
|
Record player
|
Drive method
|
Belt drive
|
|
Engine
|
Draw
|
|
Rotation speed
|
33-1/3 rpm/min, 45 rpm/min
|
|
Variation in rotation speed
|
±2%
|
|
Wow and flutter
|
0.2%
|
|
Dish
|
Cast aluminum (diameter 30 cm)
|
|
Output
|
140 mv (-17 dbv, with Riaa EQ), 2.5 mv ± 3 dbv (without Riaa EQ, 1 kHz, 3.54 cm/sec)
|
|
Signal-noise ratio
|
67 dB or higher (A-weight, 20 kHz, LPF)
|
|

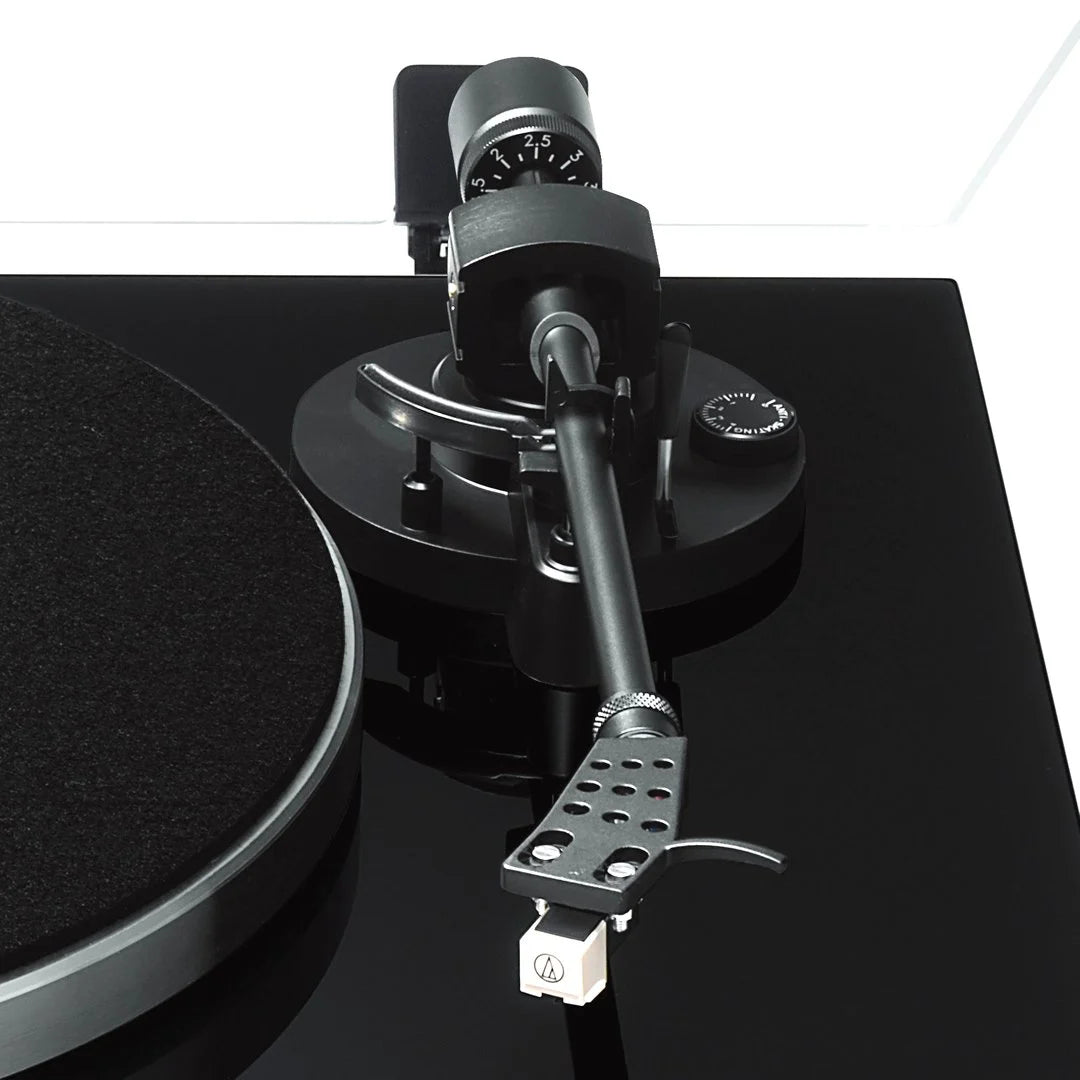

Tone arm
|
Tone arm
|
Statically balanced straight tone arm
|
|
Effective arm length
|
223.5 mm
|
|
Overhang
|
Thickness 19 mm
|
|
Reach to adjust the stylus pressure
|
0-4 gr
|
|
Acceptable cartridgeing
|
15.5-19 g (including headshell)
|
|
Attached cartridge
|
Cartridge type
|
Mm-type
|
|
Output voltage
|
2.5 mv (1 kHz, 3.54 cm/sec)
|
|
Stylus
|
3.5 ± 0.5 g
|
|
Weight of the cartridge
|
5.0 ± 0.3 g
|
|
Height cartridge
|
17.0 ± 0.7 mm
|
|
Headshell weight
|
10 g (including screws, nuts and threads)
|
|
Audio Specifications
|

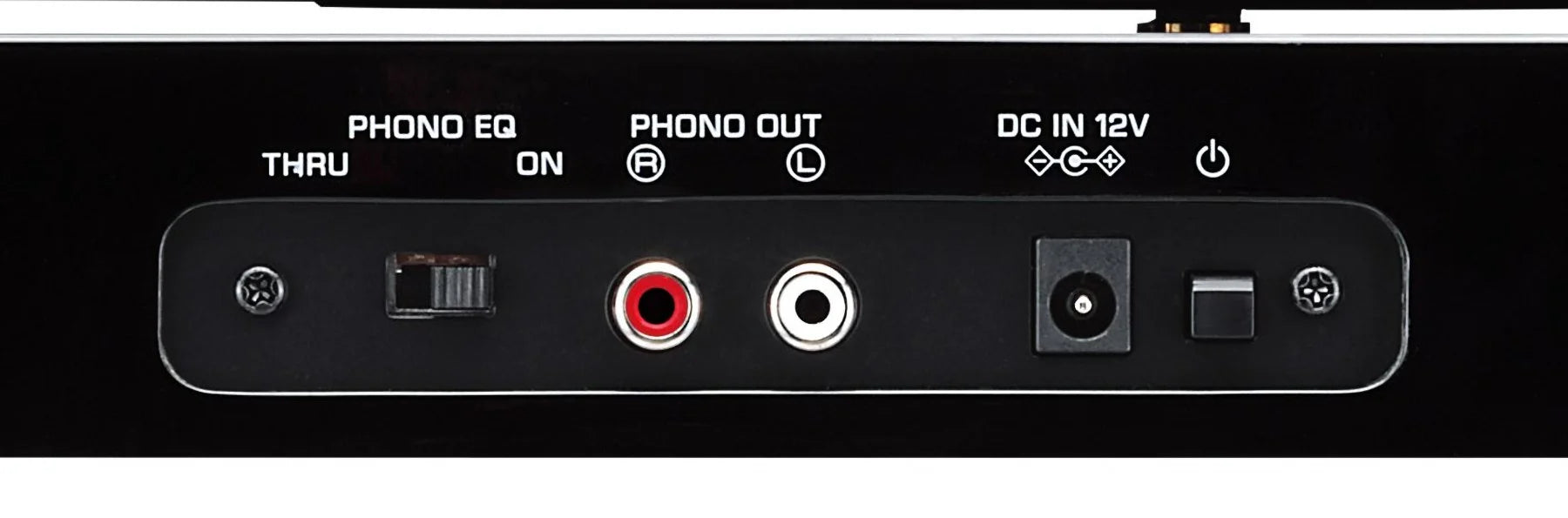

Output terminal
|
RCA: 1 (PHONO)
|
|
Generally
|
Power consumption
|
1.5 W.
|
|
Power consumption in standby
|
0.1 W
|
|
Size (B × H × D)
|
17-3/4 "x 5-3/8" x 14-1/2 "
|
|
Weight
|
10.6 pounds.
|
|
|
|
|
