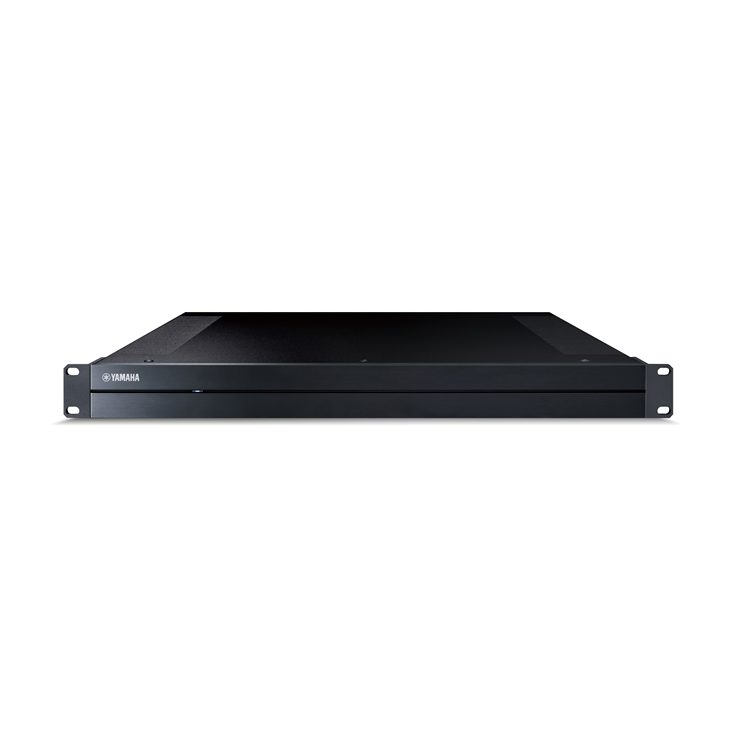

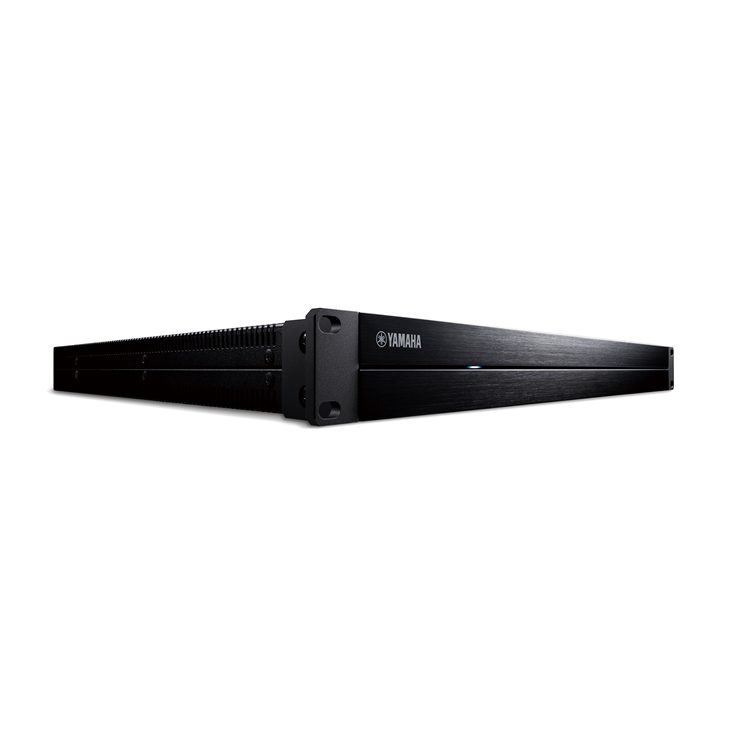

| Multi-Room Amplifier |
| Network Section |
File Format |
MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit |
| Ethernet |
Yes (2 terminals) |
| AirPlay |
Yes |
| Audio Specifications |
Channel |
8 channel (2 channel x 4) |
| Minimum Speaker load Capability |
4 ohm |
| BTL Connection |
Yes |

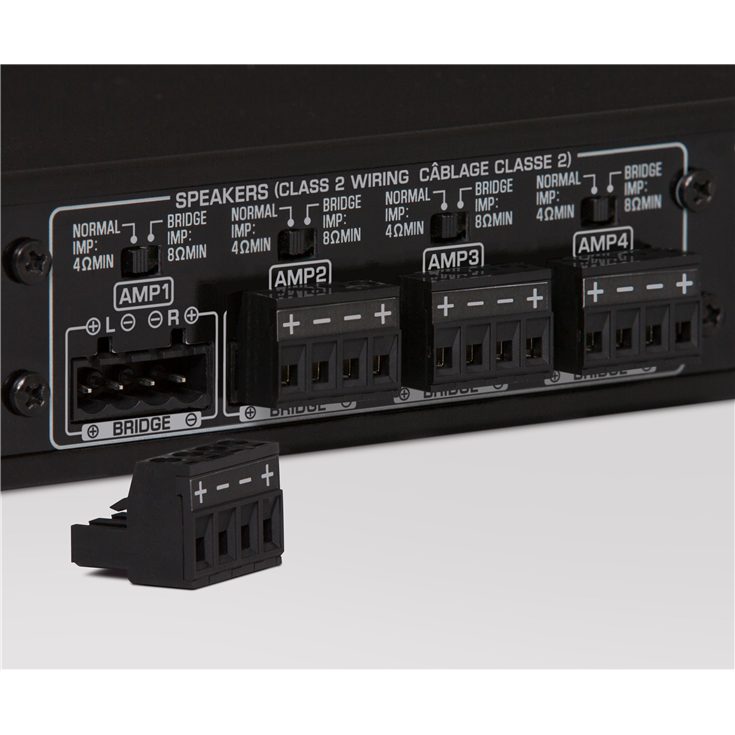

| Speaker Output Terminal |
4 (Euroblock) |
| Preout Terminal |
4 |
| Audio Input Terminal |
RCA: 2 (CUT IN, AUX), USB: 4 |
| Audio Output Terminal |
RCA (2-ch through out): 2 (CUT IN, AUX) |
| Trigger In / Out |
0 / 4 |
| Remote In / Out |
1 / 1 |
| Chime |
4 |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) |
Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W |
| Rated Output Power (1 kHz, 0.9% THD, 1ch driven) |
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W |
| Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) |
Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W |
| Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) |
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W |
| Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) |
Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W |
| Maximum Effective Output Power |
[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W |
| Total Harmonic Distortion |
[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005% |
| Frequency Response |
[1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz |
| Signal to Noise Ratio |
[PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB |
| Rated Output Level / Output Impedance |
[PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm |
| Maximum Output Level |
[PRE OUT L / R, 0.9% THD] 4.0 V |
| Maximum Input Signal |
[PRE OUT L / R, 0.9% THD] 2.4 V |
| Gain |
[SP OUT 1 V Input] 25.8 dB |
| Input Sensitivity |
[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V |
| Web Setup |
Yes |
| Direct Mode |
Yes |
| Monaural Downmix |
Yes (stereo playback or monaural downmix selectable) |
| Compressed Music Enhancer |
Yes |
| Volume Adaptive EQ |
Yes |
| Volume Control |
Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB |
| EQ Characteristics |
[Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz |
| Bass Extension |
Yes |
| General |
Power Consumption |
130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W |
| Standby Power Consumption |
Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W |
| Power Management (Auto Power Standby) |
5 / 20 min, 2 / 4 / 8 / 12 hours selectable |
| Dimension (W × H × D) mm |
[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm, [Rack Mount] 481 x 44 x 443 mm, [Rack Mount with Faceplate] 481 x 44 x 453 mm |
| Weight |
6.3 kg |
